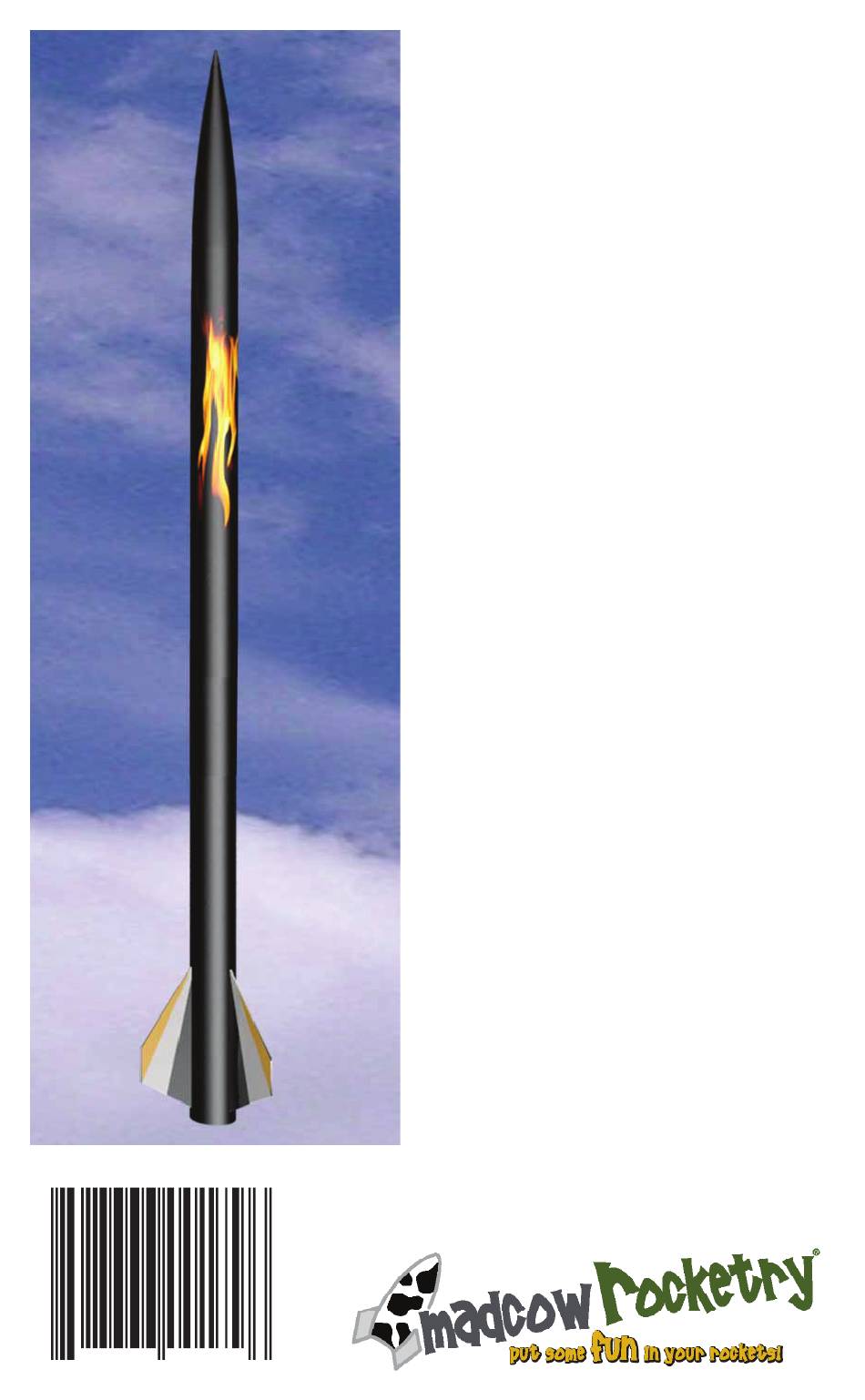

K-179
98666 00179
8
mini
Specifi cations:
Parts List
Optional Recovery System
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, fi nishing
fi ller/paint, Rubbing Alcohol for cleaning.
6
dual deploy

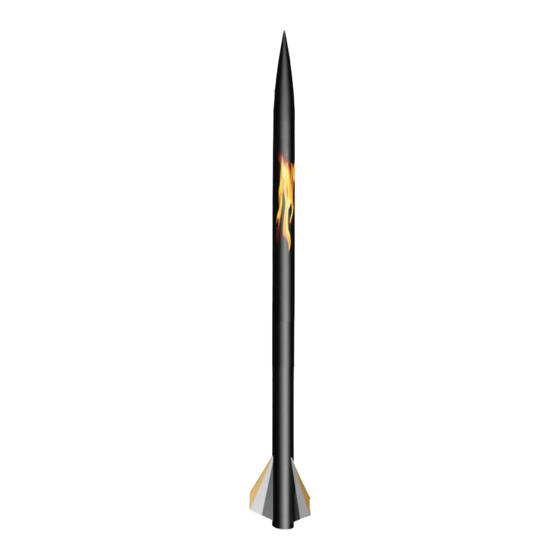

FIBERGLASS KIT
Length: 37"
Diameter 1.6"
Weight: 16oz
Recovery: 18"/10" Nylon Chutes
Motor Mount: 29m
Fins: 3 - 1/16" G10
CP: 29" from nose tip
1.
(1) Fiberglass nose cone
2.
(1) G10 nose cone bulk plate
3.
(1) Pre-slotted body tube (18")
4.
(1) Payload tube (12")
5.
(2) G10 centering rings
6.
(1) 29mm (8")
7.
(3) G10 fi ns
8.
(2) Kevlar/Nylon shock cord
9.
(2) Launch Lugs
10. (1) Eyebolt, Nut and Washer
11. (1) Fiberglass Removable A-Bay
1.
(2) 6"x6" fl ameproof chute protector
2.
(1) 18" Nylon chute (Main)
3.
(1) 10" Nylon chute (Drogue)
DX3
™
Advertisement
Related Manuals for Madcow Rocketry mini dual deploy DX3
Summary of Contents for Madcow Rocketry mini dual deploy DX3
- Page 1 mini dual deploy ™ FIBERGLASS KIT Specifi cations: Length: 37” Diameter 1.6” Weight: 16oz Recovery: 18”/10” Nylon Chutes Motor Mount: 29m Fins: 3 - 1/16” G10 CP: 29” from nose tip Parts List (1) Fiberglass nose cone (1) G10 nose cone bulk plate (1) Pre-slotted body tube (18”) (1) Payload tube (12”) (2) G10 centering rings...
- Page 2 Make sure you have the motor assembly facing the right way! Spread some more epoxy on the inside edge of the body tube before sliding the rear centering ring into the body tube. Continue ©2015 MadCow Rocketry™ FG DX3™ Assembly FG DX3™ Assembly...
- Page 3 fl y with a club or other group of experienced rocketeers until you have gained some experience. IMPORTANT: In no event shall Madcow Rocketry be liable for any direct, indirect, punitive, incidental, special consequential damages whatsoever arising out of or connected with the use or misuse of it’s products.
