K-188
98666 00188
8

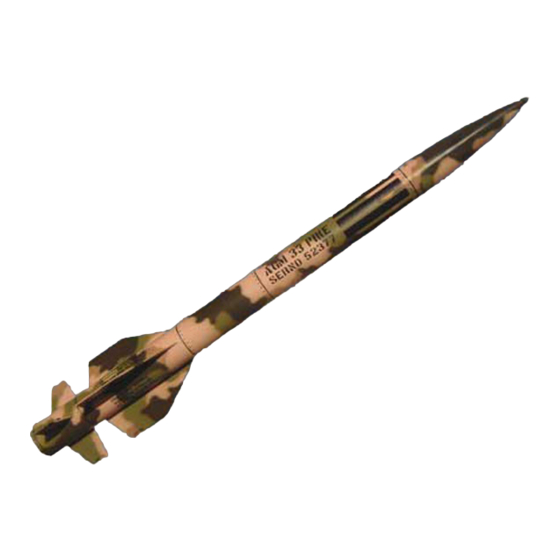

AGM 33 PIKE
Specifications:
Recommended Motors:
Parts List
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint.
23016 Del Lago, Unit C, Laguna Hills, CA 92653
8
Length: 28.5"
Diameter 1.6"
Weight: 8oz
Recovery: 18" Nylon Chute
Motor Mount: 29mm
Fins: 6 - 1/8" Plywood
CP: 21.6" from nose tip
CG: 20" from nose tip
Single Use
D12-5*
455'
E9-6 *
848'
F20W-7 2011'
F23J-7
1763'
G79W-10 3070'
*Requires 29/24 adaptor
1.
(1) Nose cone
2.
(1) Body tube
3.
(2) Centering rings
4.
(1) 29mm motor tube
5.
(6) laser-cut fins
6.
(1) Kevlar® shock cord section
7.
(1) Nylon shock cord section
8.
(1) 6"x6" flameproof chute protector
9.
(1) 18" Nylon chute
10. (2) ¼" launch lugs
11. (1) Water Slide Decals
949.547.8847
www.madcowrocketry.com
©2006 MadCow Rocketry™
Reloadable
E16W-7
1380'
E23T-6
1006'
F52T-8
2274'
G64W-10
3308'
51F36-9 (BS) 1696'
57F59-9 (WT) 1859'
56F120-9 (VX) 1837'
41F36-7 (SS) 1349'
107G83-9 (BS) 2994'
93G80-9 (SK) 2817'
™
