K-103
98666 00103
8
mini
Specifications:
Recommended Motors:
Parts List
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint.
23016 Del Lago, Unit C, Laguna Hills, CA 92653
1

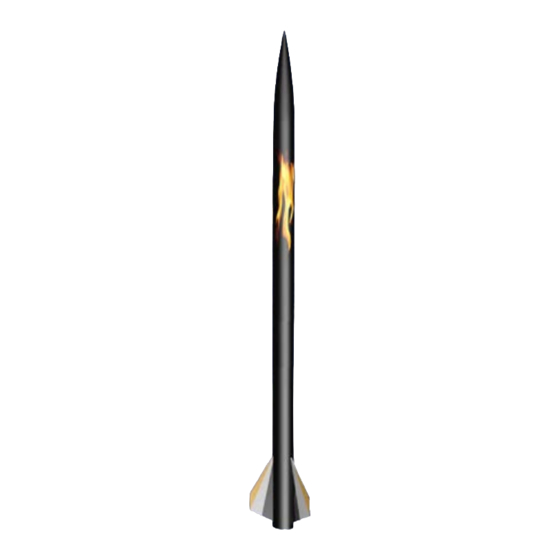

DX3
Length: 36.5"
Diameter 1.6"
Weight: 9.5oz
Recovery: 18" Nylon Chute
Motor Mount: 29mm
Fins: 3 - 1/8" Plywood
CP: 27" from nose tip
CG: 25.4" from nose tip
Single Use
D12-5*
340'
E9-6 *
675'
F20W-7 1980'
F23J-7
1684'
G79W-10 3057'
*Requires 29/24 adaptor
1.
(1) Nose cone
2.
(1) Aft body tube
3.
(1) Forward body tube
4.
(1) Coupler
5.
(1) Bulkplate
6.
(1) Eyebolt, nut and washer
7.
(2) Centering rings
8.
(1) 29mm motor tube
9.
(3) laser-cut fins
10. (1) Kevlar® shock cord section
11. (1) Nylon shock cord section
12. (1) 6"x6" flameproof chute protector
13. (1) 18" Nylon chute
14. (2) ¼" launch lugs
949.547.8847
www.madcowrocketry.com
©2006 MadCow Rocketry™
™
Reloadable
E16W-7
1000'
E23T-6
940'
F52T-8
2210'
G64W-10
3323'
51F36-9 (BS) 1696'
57F59-9 (WT) 1859'
93G80-9 (SK) 2817'
