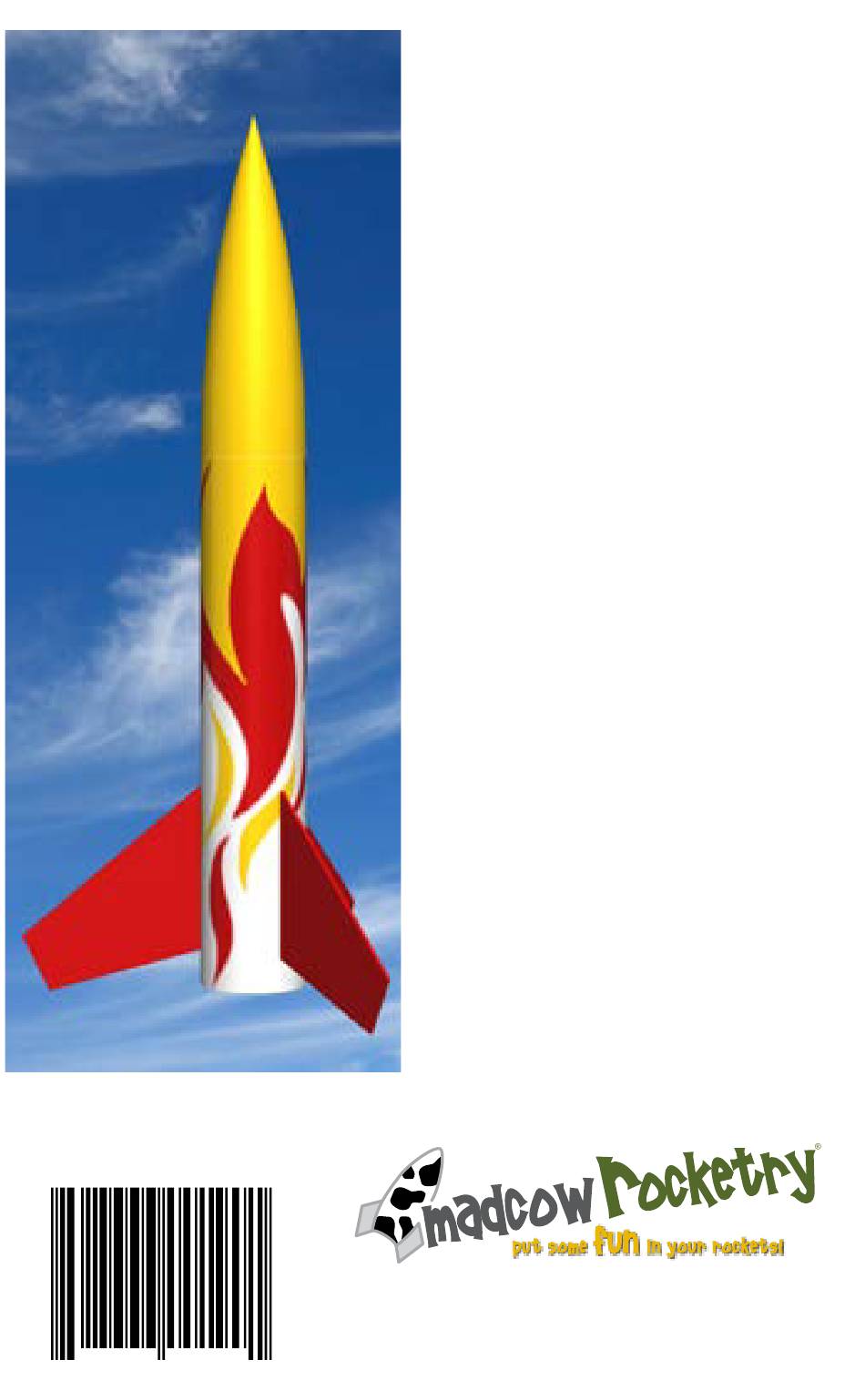

K-190
98666 00190
8
mini
Specifications:
Recommended Motors:
Parts List
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint.
23016 Del Lago, Unit C, Laguna Hills, CA 92653
1

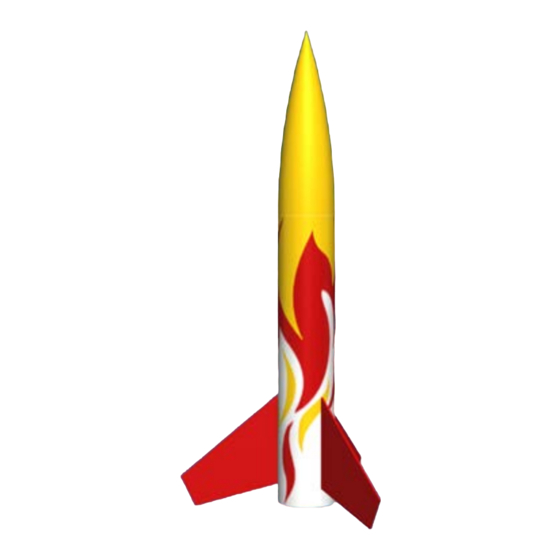

Squat
Length: 13"
Diameter 1.6"
Weight: 4oz
Recovery: 14" Nylon Chute
Motor Mount: 24mm
Fins: 3 - 1/8" Plywood
CP: 10.25" from nose tip
CG: 8.75" from nose tip
D12-7
1110'
E9-8
1874'
1.
(1) Nose cone
2.
(1) Body tube
3.
(2) Centering rings
4.
(1) 24mm motor tube
5.
(1) Motor Clip
6.
(1) Thrust Ring
7.
(3) laser-cut fins
8.
(1) Kevlar® shock cord section
9.
(1) Nylon shock cord section
10. (1) 6"x6" flameproof chute protector
11. (1) 14" Nylon chute
12. (2) ¼" launch lugs
949.547.8847
www.madcowrocketry.com
©2006 MadCow Rocketry™
™
Advertisement
Related Manuals for Madcow Rocketry mini Squat
Summary of Contents for Madcow Rocketry mini Squat
- Page 1 (1) Nylon shock cord section 10. (1) 6”x6” flameproof chute protector 11. (1) 14” Nylon chute 12. (2) ¼” launch lugs Required to complete: 5 minute epoxy, 120/220 sandpaper, masking tape, finishing filler/paint. K-190 23016 Del Lago, Unit C, Laguna Hills, CA 92653 949.547.8847 www.madcowrocketry.com ©2006 MadCow Rocketry™ 98666 00190...
- Page 2 Apply some epoxy to the cord to hold it in place. Make sure the cord is secure and will not come loose later with ejection forces that will pull on the shock cord. ©2015 MadCow Rocketry™ mini Squat™ mini Squat™...
- Page 3 IMPORTANT: In no event shall Madcow Rocketry be liable for any direct, indirect, punitive, incidental, special consequential damages whatsoever arising out of or connected with the use or misuse of it’s products.
