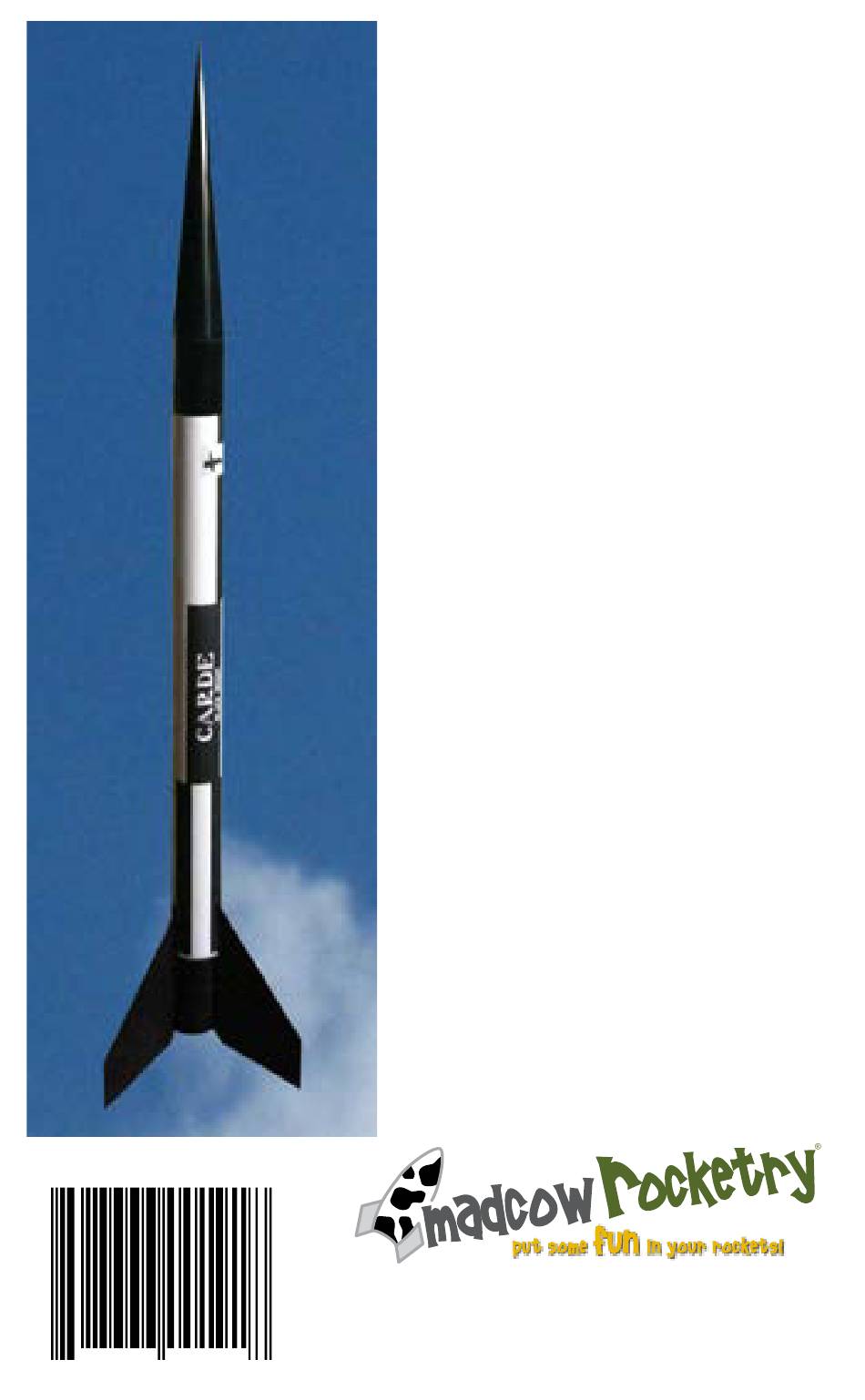

K-191
98666 00191
8
mini

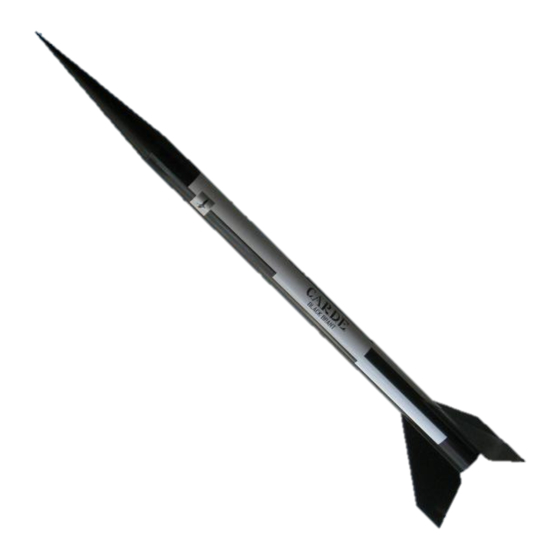

Black Brant II
Specifications:
Recommended Motors:
Parts List
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint.
23016 Del Lago, Unit C, Laguna Hills, CA 92653
8
Length: 31.3"
Diameter 1.6"
Weight: 8oz
Recovery: 18" Nylon Chute
Motor Mount: 29mm
Fins: 3 - 1/8" Plywood
CP: 25" from nose tip
CG: 23.4" from nose tip
Single Use
D12-5*
455'
E9-6 *
848'
F20W-7 2011'
F23J-7
1763'
G79W-10 3070'
*Requires 29/24 adaptor
1.
(1) Fiberglass nose cone
2.
(1) Body tube
3.
(2) Centering rings
4.
(1) 29mm motor tube
5.
(3) laser-cut fins
6.
(1) Kevlar® shock cord section
7.
(1) Nylon shock cord section
8.
(1) 6"x6" flameproof chute protector
9.
(1) 18" Nylon chute
10. (2) ¼" launch lugs
11. (1) Decal
949.547.8847
www.madcowrocketry.com
©2006 MadCow Rocketry™
Reloadable
E16W-7
1380'
E23T-6
1006'
F52T-8
2274'
G64W-10
3308'
51F36-9 (BS) 1696'
57F59-9 (WT) 1859'
56F120-9 (VX) 1837'
41F36-7 (SS) 1349'
107G83-9 (BS) 2994'
93G80-9 (SK) 2817'
Advertisement
Table of Contents
Related Manuals for Madcow Rocketry mini Black Brant II
Summary of Contents for Madcow Rocketry mini Black Brant II
- Page 1 (1) Nylon shock cord section (1) 6”x6” flameproof chute protector (1) 18” Nylon chute 10. (2) ¼” launch lugs 11. (1) Decal Required to complete: 5 minute epoxy, 120/220 sandpaper, masking tape, finishing filler/paint. K-191 23016 Del Lago, Unit C, Laguna Hills, CA 92653 949.547.8847 www.madcowrocketry.com ©2006 MadCow Rocketry™ 98666 00191...
- Page 2 When packing your chute, wrap the chute protector around the chute with the opening in the chute protector facing forward. Always make sure your chute is well protected as the hot ejection motor gasses will melt the nylon chute. ©2015 MadCow Rocketry™ mini BB2 Assembly mini BB2 Assembly...
- Page 3 IMPORTANT: In no event shall Madcow Rocketry be liable for any direct, indirect, punitive, incidental, special consequential damages whatsoever arising out of or connected with the use or misuse of it’s products.
