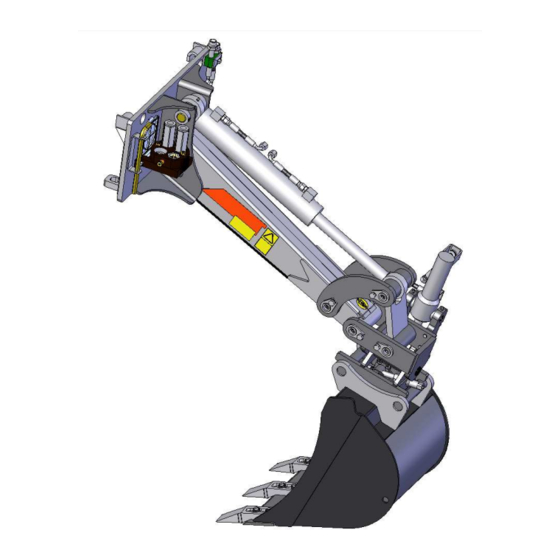

AVANT Digger 150 Operator's Manual For Attachment

Hide thumbs Also See for Digger 150:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's manual for Attachment
Operator's
Operator's
Operator's
Product number:
Please read this manual carefully before using the equipment, and follow all
instructions.
Keep this manual for later reference.
manual for Attachment
manual for Attachment
manual for Attachment
D
i
g
g
e
r
1
5
D
i
g
g
e
r
1
5
400-700-series loaders:
Tilting adapter:
0
0
A35317
A35320
Digger 150 2013 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digger 150 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT Digger 150

Summary of Contents for AVANT Digger 150

  • Page 1 Digger 150 2013 2 Operator’s manual for Attachment Operator’s manual for Attachment Operator’s Operator’s manual for Attachment manual for Attachment Product number: 400-700-series loaders: A35317 Tilting adapter: A35320 Please read this manual carefully before using the equipment, and follow all instructions.

  • Page 2: Table Of Contents

    Digger 150 2013 2 CONTENTS Foreword............................3 Designed purpose of use ......................3 Safety instructions for the digger ....................4 Mini digger specifications ......................5 Assembly of the digger.........................7 5.1. Attaching the digger to the loader ......................7 5.2. Connecting and disconnecting the hydraulic fittings ................8 5.3.

  • Page 3: Foreword

    3(22) 1. Foreword Avant Tecno Oy would like to thank you for your purchase of this AVANT attachment. It has been designed and manufactured on the basis of years of experience and product development. By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure the reliable operation and long service life of the equipment.

  • Page 4: Safety Instructions For The Digger

    4(22) 3. Safety instructions for the digger Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful, and improper or careless use or lack of maintenance may cause serious personal injury or property damage.

  • Page 5: Mini Digger Specifications

    See Table 1 Bucket quick coupling Several available bucket options are listed in Table 3 below. Also a tilting bucket adapter is available as an option. Contact your AVANT dealer for availability and for more information. Table 3 – Bucket options A414301...
  • Page 6 6(22) Listed below are the markings and labels fastened to the mini digger, which must be visible on the equipment. Replace the warning labels, if they have become unclear or detached completely. New labels are available via your retailer or contact information provided on the cover page. The warning labels contain important safety information and they help to identify and remember the hazards related to the equipment.

  • Page 7: Assembly Of The Digger

    7(22) 5. Assembly of the digger The digger is ready for use as delivered. Mount the attachment and its hydraulic hoses to the loader as instructed below. 5.1. Attaching the digger to the loader Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is mounted to the loader boom by using the quick attach plate and the counterpart on the attachment.

  • Page 8: Connecting And Disconnecting The Hydraulic Fittings

    5.2. Connecting and disconnecting hydraulic fittings The default connector for hydraulic couplings is the multiconnector system. If you want to change the type of the hydraulic couplings of the attachment or the loader, contact your Avant dealer or service point for instructions or installation services.

  • Page 9: Storage Position

    9(22) Releasing residual hydraulic pressure: In case residual pressure is left in the hydraulic system of the attachment, it is often possible to disconnect the hydraulic couplings, but it may be difficult to connect them the next time. If the fittings will not connect, the residual pressure must be released by turning the auxiliary hydraulics control lever of the loader, when the engine is turned off.

  • Page 10: Changing The Bucket

    Some work sites may have special regulations concerning qualification requirements. Contact your nearest Avant dealer or service point, if you have any additional questions or require installation services.

  • Page 11: Installing The Tilting Bucket Adapter

    11(22) 5.5.1. Installing the tilting bucket adapter 1. Remove the bucket as shown above. 2. Relese the residual pressure of the system and disconnect hydraulic couplings. Apply parking brake. 3. Remove two pivot pins holding the standard quick release system. •...
  • Page 12 12(22) Make sure the attachment is securely lowered on the ground. Any part of the attachment must not be supported only by hydraulic pressure or hydraulic cylinders. Do not loosen any fitting as long as any part of the attachment may move as a result. Use additional supports as necessary.
  • Page 13 13(22) 4. Bolt the selector valve to the holes of the quick attach plate (3). 5. Connect the hoses as shown in the adjacent figure. Make note of tightening instructions of hydraulic fittings shown below. 6. Connect the first part of the electric harness to the selector valve, and pass the cable within the protective plastic spiral of hydraulic hoses so that the connector will reach the connector of the...

  • Page 14: Electric Connection (Tilting Bucket Adapter)

    14(22) Test the tightness of the hydraulic fittings carefully. Use idle rpm when starting the first time and keep a safe distance because of the risk of hydraulic fluid ejection. Shut down the loader and release the residual pressure before checking for leaks. Never test the tightness of the hydraulic components by placing hands near the fittings.

  • Page 15: Instructions For Use

    15(22) 6. Instructions for use After the digger and its hydraulic hoses are connected according to the instructions, work can be started. Practise the use of the digger at safe area and familiarise yourself with the controls of the loader-digger combination, safety instructions and safe working practises.

  • Page 16: Inspections, Maintenance And Servicing

    16(22) The bucket of the digger is controlled by the auxiliary hydraulics control lever of the loader, or the electric joystick buttons. When connected correctly, the bucket will close, when moving the auxiliary hydraulics control lever towards it’s locking position. The digger can be used with 1- or 2-pump setting, as needed.

  • Page 17: Cleaning And Storage Of The Equipment

    Finding any of these faults means that the hydraulic hose or component in question must be replaced. Spare parts are available from your nearest AVANT retailer or service point. Leave the repairing task to service professionals, if not certain about how to perform the tasks safely. Wear protective gloves, clothing and safety goggles.
  • Page 18 18(22) Bucket tilt adapter Lubricating points: Bucket cylinder and bucket quick coupling Bucket tilt adapter Bucket tilt adapter...

  • Page 19: Main Dimensions

    19(22) 8. Main dimensions...

  • Page 20: Warranty Terms

    20(22) 9. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) for the attachment from the date of purchase. The warranty covers repair costs as follows: • Work costs are covered, if the repair is not performed at the factory.
  • Page 21 SFS-EN ISO 12100-1, SFS-EN ISO 12100-2, SFS-EN 982, SFS-EN 474-4 Kuvaus: Avant-kuormainten kanssa käytettävä kaivuulaite Beskrivning: Grävarm; arbetsredskap för Avant lastare Description: Mini digger; attachment for Avant loaders Beschreibung: Schaufelarm; Anbaugerät für Avant Radlader Mallit / Modeller / Models / Modellen: 745, 750, 630, R35, 635, 640 Avant...
