Mounting the Hood
Bottom Support Frame

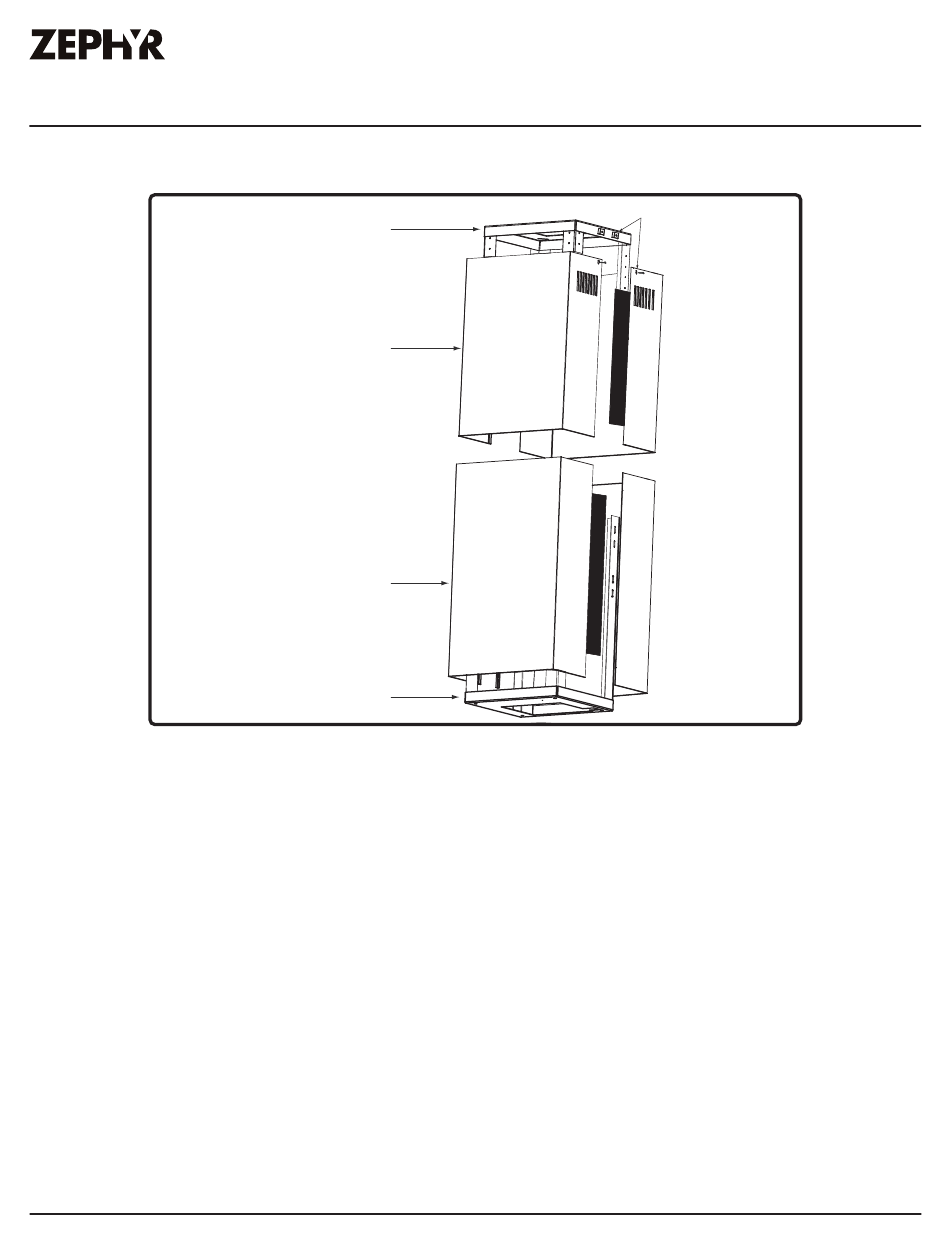

15. Assemble top duct covers (with louver holes) together over top support frame, secure top duct
covers together by magnetic strips.
NOTE: If using hood in ductless recirculating mode you must install the air diverter plate to the top
support frame prior to assembling the duct covers. Turn to page 22 for more details.
16. Secure top duct covers to top support frame by using (4) 3/16 x 1/4 screws (2 screws for each top
duct cover). (FIG. I1).
17. Assemble bottom duct covers together over top duct covers and secure together by magnetic
strips. Bottom duct covers should rest on top of the hood body.
Modena Island Use, Care, and Installation Guide
Top Support Frame
Top Duct Covers
Bottom Duct Covers
Installation Instructions
FIG. I
1
21
