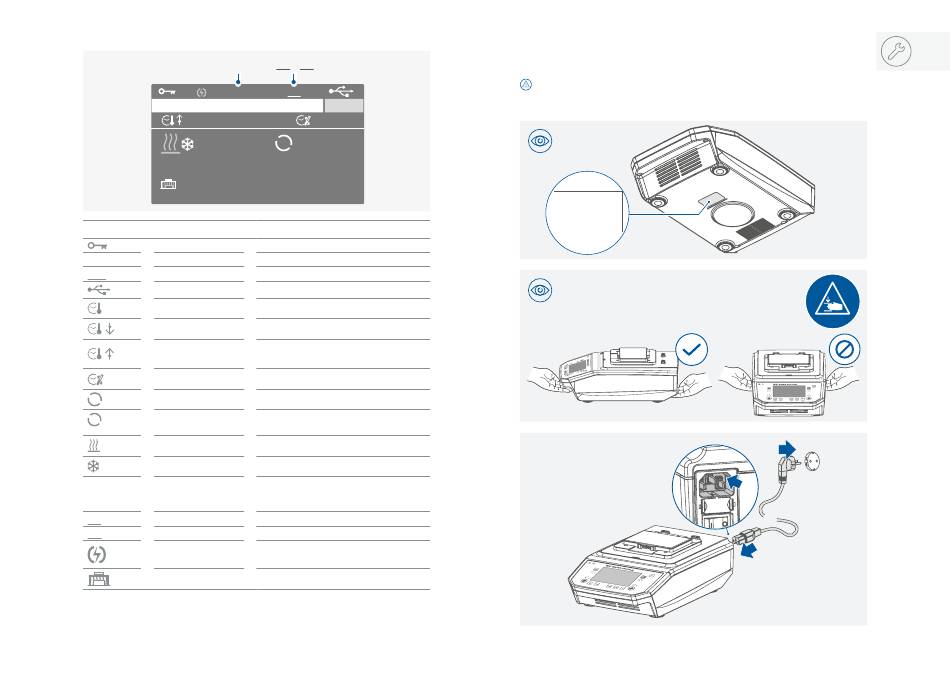

/// Explanation of symbols on the working screen
IKA MATRIX 2.0 mL
0:00:00
25.0
Fast actual ºC
100.0
Symbol Designation
Lock button symbol
A
Operating mode symbol
(B / C)
INT
Intermittent mode symbol
USB connection symbol
Timer / Counter symbol
(Tempering)
Timer symbol
(Tempering)
Counter symbol
(Tempering)
Timer / Counter symbol
(Mixing)
Mixing symbol
Mixing in Intermittent
mode symbol
00:10
Tempering (heating)
symbol
Tempering (cooling)
symbol
Fast
Temperatur control rate
(Moderate /
symbol
Slow)
PC
PC control symbol
PR
Program control symbol
Power failure symbol
IKA ThermoCover Symbol
Note: The symbols displayed change depending on the status and settings of the device�
12
B / C PC / PR
A PC
0:00:00
300
0:10 actual rpm
300
Set ºC Set rpm
Function
Indicate the buttons are locked�
Indicate the device is in operating mode (A, B or C)�
Indicate the intermittent mode is activated�
Indicate the device is communicating via USB�
Indicate the "Timer / Counter" start condition is set to:
"Immediately" (see "Tempering" under "Timer")�
Indicate the "Timer" start condition is set to: "Set
temperature reached" (see "Tempering" under "Timer")�
Indicate the "Counter" start condition is set to:
"Set temperature reached" (see "Tempering" under
"Timer")�
Indicate the "Timer / Counter" for mixing�
Indicate the mixing function is activated�
Indicate the mixing function with intermittent mode is
activated�
Indicate the heating function is activated�
Indicate the cooling function is activated�
Indicate the tempering "Control rate" is set to "Fast
(Moderate or Slow)"�
Indicate the device is controlled by a PC�
Indicate the device is in program control mode�
Indicate a previous power supply interruption�
Indicate IKA ThermoCover is attached to the device�

Installation

/// Connection to the power supply
Notice!
!
The socket used must be earthed (fitted with earth contact)�
Observe the ambient conditions (temperature, humidity etc�) listed under "Technical Data"�
100 - 240 V ~
50/60 Hz
240 W
IP 21
2.
1.
