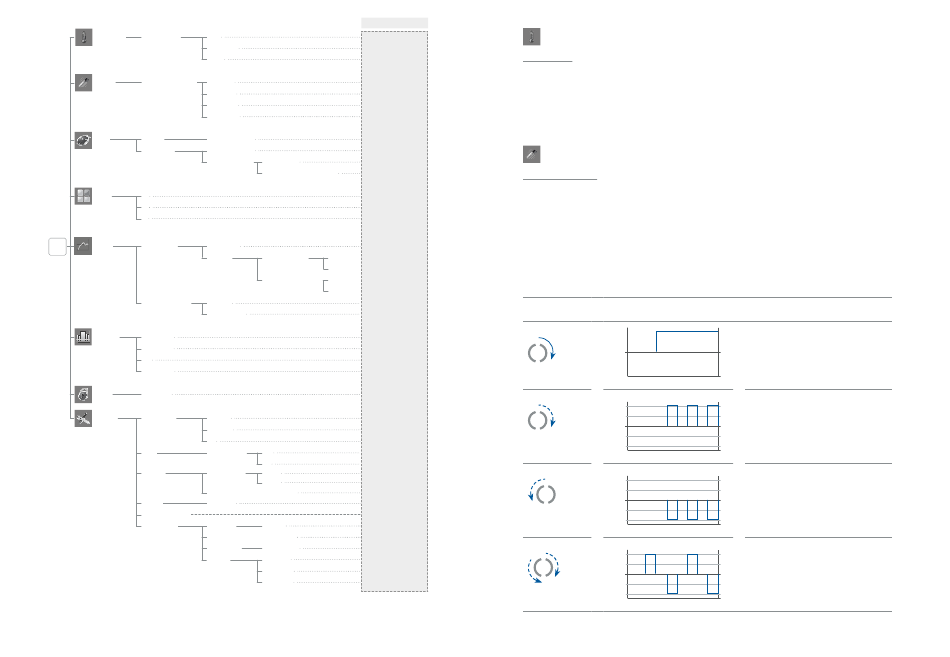

/// Menu structure
Tempering Control rate
Mixing Intermittent mode
Timer Mixing
Tempering
A B
Mode A
C ...
B
C
Graph Axis scaling
Menu
Axis assignment
Program Program 1
Program 2
...
Program 5
Safety Password
Settings Languages
Units
Display
Sound
Factory Settings
Information
26
Factory setting
Fast √
Moderate -
Slow -
-
Activate
CW time 00:10 [mm:ss]
Stop time 00:10 [mm:ss]
CCW time 00:00 [mm:ss]
Timer / Counter 00:00:00 [hh:mm:ss]
Timer / Counter 00:00:00 [hh:mm:ss]
Start Condition Immediately √
Set Temperature Reached -
√
-
-
Automatic √
Manual Y-Axis 1: Speed Maximum 3000 rpm
Minimum 0 rpm
Y-Axis 2: Temperature Maximum 100 ºC
Minimum 1.0 ºC
√
Mixing
√
Temperature
-
-
-
-
000
English √
Deutsch -
... -
√
Temperature °C
°F -
√
Background Black
White -
√
Firmware Update Information
Key Tone √
Software Version 1.02.003/1.01.021
Firmware Update Information yes
Tempering Control rate Fast
Mixing CW time 00:10 [mm:ss]
CCW time 00:00 [mm:ss]
Stop time 00:10 [mm:ss]
/// Menu details
Tempering:
Control rate:
In the "Control rate" menu option, you can select the desired control rate between "Fast", "Mod-
erate" and "Slow"� A check mark (√) indicates the control rate is activated�
Fast: Fast tempering with a certain level overshooting�
Moderate: Moderate tempering with minimal overshooting�
Slow: Precise tempering without overshooting�
Mixing:
Intermittent mode:
In the "Activate" menu option, you can activate or deactivate the "Intermittent mode"� A check
mark (√) indicates that the function is activated�
Once the "Intermittent mode" is activated, the set values for "CW time", "Stop time" and
"CCW time" will be applied� These values can be set separately�
The "CW time" and "CCW time" can be set between 00:00 [mm:ss] to 10:00 [mm:ss]�
The "Stop time" can be set between 00:05 [mm:ss] to 10:00 [mm:ss]�
Note: When either of "CW time" or "CCW time" is set to 00:00 [mm:ss], the other one can
only set to minimum 00:03 [mm:ss]�
Symbol Rotation Graph
Direction
rpm
CW
0
CCW
CW
rpm
300
CW
0
CCW
CW
300
rpm
300
CW
0
CCW
CCW
300
rpm
300
CW
0
CCW
CCW / CW
300
Description
Factory setting:
Continuous mode in clockwise�
time
"Intermittent mode" is activated and
"CW time" / "Stop time" is set�
Note: "CW time" and "Stop time" can be
set separately�
time
"Intermittent mode" is activated and
"CCW time" / "Stop time" is set�
Note: "CCW time" and "Stop time" can be
set separately�
time
"Intermittent mode" is activated and
"CW time" / "CCW time" / "Stop time"
is set�
Note: "CW time" / "CCW time" and "Stop
time" can be set separately�
time
