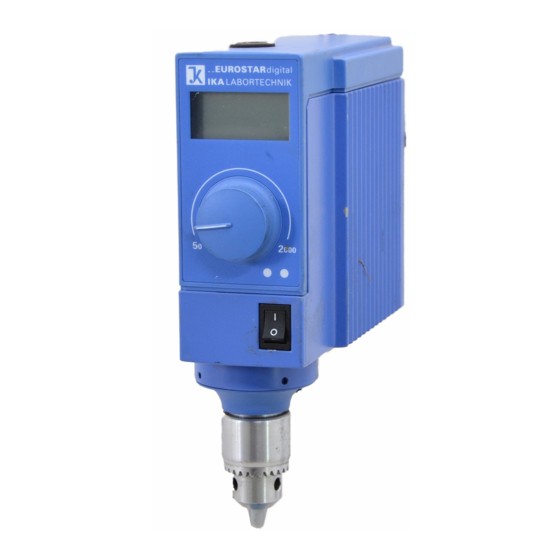

Summary of Contents for IKA EUROSTAR digital

Page 2 WERKE ® 25 511 00 b ETRIEBSANLEITUNG PERATING INSTRUCTIONS ’ ODE D EMPLOI NSTRUCCIONES DE MANEJO ANDLEIDING ’ NSTRUZIONI PER L RIFTSANVISNING RIFTSINSTRUKS RIFTSVEJLEDNING ÄYTTÖOHJE NSTRUĆÕES DE SERVIĆO NSTRUCJA OBSŁUGI ÁVOD K PROVOZU ASZNÁLATI UTASÍTÁS AVODILO ZA DELOVANJE ÁVOD NA POUŽITIE ASUTUSJUHEND IETOŠANAS INSTRUKCIJA ARBO INSTRUKCIJA...
Page 3 EG-KONFORMITÄTSERKLÄRUNG DECLARAÇÃO DE CONFORMIDADE DA CE CE-DECLARATION OF CONFORMITY DEKLARACJA PRODUCENTA CE DÉCLARATION DE CONFORMITÉ CE PROHLÁŠENÍ O SHODĚ CE DECLARACION DE CONFORMIDAD DE CE CE MEGFELELŒSÉGI NYILATKOZAT CE-CONFORMITEITSVERKLRING IZJAVA O SKLADNOSTI IN CE-ZNAK CE-DICHIARAZIONE DI CONFORMITÀ VYHLÁSENIE O ZHODE S NORMAMI EÚ CE-KONFORMITETSFÖRKLARUNG CE-VASTAVUSDEKLARATSIOON CE-KONFORMITETSERKLÆRING...
Page 4 Fig. 1 Fig. 1a Fig. 2 Fig. 2a Fig. 3 Fig. 4 Fig. 5 Fig. 6 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 5 RS232_GND Fig. 11 1 / min Fig. 9 Analog GND Fig. 8 RS232_GND 1/min 1V=1000 Vers. EUROSTAR power control visc 6000 1/min 1V=2000 Ncm 1V=100Ncm Fig. 10 Fig. 7 RxD 2 2 RxD TxD 3 3 TxD GND 5 5 GND RTS 7 7 RTS CTS 8...
Page 6 Fig. 16 Fig. 13 Fig. 12 Fig. 15 Fig. 14 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 7 Inhaltsverzeichnis Sicherheitshinweise Lesen Sie die Betriebsanleitung vor Inbetriebnahme voll- ständig und beachten Sie die Sicherheitshinweise. nicht Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 8 Bestimmungsgemäßer Gebrauch Auspacken Auspacken Lieferumfang Nur Version EUROSTAR power control-visc 6000: Motorschutz; Sicherheitseinrichtungen Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 9 EUROSTAR power basic Drehzahlen - Normalbetrieb EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, Drehzahl - geregelt ( keine Drehzahlabweichung ) EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000...
Page 10 Drehzahlen - Überlastbetrieb Strom - geregelt ( Drehzahlabweichung möglich ) Drehmomentanzeige EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, Eine absolute Drehmomentmessung ist mit den Geräten EUROSTAR power control - visc 6000 nicht möglich.
Page 11 Schnittstellen und Ausgänge - Analogausgang EUROSTAR power basic EUROSTAR power control-visc Befehlssyntax und Format (10) (15) - Serielle Schnittstelle RS 232 ( V24 ) EUROSTAR power control-visc soft Konfiguration der seriellen RS 232 C Schnittstelle soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 12 Rampenbefehle NAMUR Befehle Funktion Weitere Befehle Funktion IKA spezifisch Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 13 Befestigung - PC 5.1 Adapter IKA-Control Befestigung der Auslegerstange am Rührwerk Befestigung des Rührwerks am Stativ - PC 1.2 Adapter - PC 2.1 Kabel - AK 2.1 Kabel Befestigung des Rührwerkzeuges im Spannfutter - AK 2.2 Kabel Betrifft alle EUROSTAR und EUROSTAR power Rührgeräte...
Page 14 Abtriebswelle Befestigung des Rührwellenschutz Einschalten des Gerätes Beachten Sie hierzu den Abschnitt „Sicherheitshinweise !“ Instandhaltung Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 15 Zubehör www.ika.de R 1826 R 2722 R 2723 R 182 Gewährleistung R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 16 Technische Daten 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 17 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 18 Zulässige IKA - Rührwerkzeuge ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 19 Contents Safety instructions Read the operating instructions in full before starting up and follow the safety instructions. Do not Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 20 Correct use Unpacking Unpack Delivery scope Only on version EUROSTAR power control-visc 6000: Motor protection; safety devices Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 21 Speed - normal operations EUROSTAR power basic Speed - regulated (no variation in speed) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000...
Page 22 Speed - overload operation Current - regulated ( speed variation possible) Torque indicator EUROSTAR power basic EUROSTAR power control - visc, Absolute torque measurement is not possible with these EUROSTAR power control - visc P1, machines. EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000 Set Value = Process Value (flashing) :...
Page 23 Interfaces and outputs - Analogue output EUROSTAR power basic EUROSTAR power control-visc Command syntax and format (10) (15) - Serial interface RS 232 ( V24 ) EUROSTAR power control-visc soft Configuration of serial Interfacel RS 232 C soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 24 Ramp commands NAMUR Function Commands Further commands IKA specific Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 25 Securing - PC 5.1 Adaptor IKA-Control Attaching the extension arm to the overhead stirrer Attaching the stirrer to the stand - PC 1.2 Adaptor - PC 2.1 Cable - AK 2.1 Cable Attaching a stirring tool using the chuck - AK 2.2 Cable...
Page 26 Output shaft Attaching the stirring shaft protector Please see section “Safety instructions“! Maintenance Switching on the device Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 27 Accessories www.ika.de R 1826 R 2722 R 2723 Warranty R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 28 Technical data 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 29 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 30 Permitted IKA stirrer tools ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 31 Sommaire Consignes de sécurité Lisez intégralement la notice d'utilisation avant la mise en service et respectez les consignes de sécurité. N'utilisez pas Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 32 Utilisation conforme aux prescriptions Deballage Déballage Volume de livraison Seulement version EUROSTAR power control-visc 6000: Protection du moteur; dispositifs de sécurité Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 33 EUROSTAR power basic Vitesse de rotation; Régime normal EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, Régulation de la vitesse de rotation (pas de variation de la EUROSTAR power control - visc P4, vitesse) EUROSTAR power control - visc P7,...
Page 34 Vitesse de rotation - Régime de surcharge Régulation de l’intensité du courant (possibilité de variati- on de la vitesse de rotation. Indicateur de couple EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, Une mesure absolue du couple de rotation est impossible EUROSTAR power control - visc P7, avec ces appareils.
Page 35 Interfaces et sorties – Sortie analogique EUROSTAR powe basic EUROSTAR power control-visc (10) (15) Syntaxe et format des instrucions – Interface série RS 232 {V24} EUROSTAR power control-visc Configuration de l’interface série RS 232 C Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 36 Instructiones des rampes NAMUR Fonction Commands Autres instructions Fonction spécifiques à IKA Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 37 Fixation - PC 5.1 Adaptateur Commande IKA Fixation de la barre à bras sur l'agitateur Fixation de l'agitateur sur le statif - Adaptateur PC 1.2 - Câble PC 2.1 - Câble AK 2.1 Fixation de l'outil d'agitation dans le mandrin - Câble AK 2.2...
Page 38 Arbre de sortie Fixation de la protection de l'arbre d'agitation Mise en marche de lʼappareil Observez à ce sujet le chapitre “Consignes de sécurité” ! Entretien Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 39 Accessoires R 1826 R 2722 www.ika.de R 2723 R 182 R 270 R 271 R 301 RH 3 Garantie RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 40 Caractéristiques techniques 1/min 1/min °C 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 41 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 42: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Instruments agitateurs IKA autorisés ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 43: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Indice Indicaciones de seguridad Lea todas las instrucciones de uso antes de la puesta en marcha y siga siempre las instrucciones de seguridad. Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 44: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Uso conforme a los fines previstos Desembalaje Desembalaje Volumen de suministro Sólo versión EUROSTAR power control-visc 6000: Guardamotor; instalaciones de seguridad Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 45: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
EUROSTAR power basic Números de revoluciones - régimen normal EUROSTAR digital, Número de revoluciones - regulado (sin divergencia de número EUROSTAR power control - visc, de revoluciones) EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7,...
Page 46: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Números de revoluciones - - Set Value > Process Value (intermitente): (Fig. 5) régimen de sobrecarga Corriente - regulada (posible divergencia de número de revolu- ciones) Indicación de par EUROSTAR power basic EUROSTAR power control - visc, No es posible realizar una medición de par absoluta con EUROSTAR power control - visc P1, estos aparatos.
Page 47: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Interfaces y salidas - Salida analógica EUROSTAR power basic EUROSTAR power control-visc Sintaxis de comando y formato (10) (15) - Interface en serie RS 232 ( V24 ) EUROSTAR power control-visc Configuración del interface en serie RS 232 C Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 48: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Comandos de rampa NAMUR Befehle Función Otros comandos Función Específicos IKA Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 49: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Fijación – Adaptador de control IKA PC 5.1 Fijación de la varilla agitadora en el agitador Fijación del agitador en el soporte – Adaptador PC 1.2 – Cable PC 2.1 – Cable AK 2.1 – Cable AK 2.2 Sujeción del útil de agitación en el mandril...
Page 50: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Arbol de salida Sujeción del dispositivo de protección del árbol de agitación Conexión del aparato ¡Al respecto, observar el apartado ”Indicaciones de seguri- dad”! Mantenimiento Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 51: Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisan-Scientific.com
Accesorios www.ika.de R 1826 R 2722 R 2723 R 182 R 270 R 271 R 301 Garantía RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 52 Datos técnicos r.p.m. r.p.m. N.cm °C 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 53 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 54 Utiles agitadores IKA admisibles ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 55 Inhoud • • • • • • • • • • Veiligheidsinstructiese • • Lees de gebruiksaanwijzing helemaal door vóór de inbe- drijfstelling, en neem de veiligheidsvoorschriften in acht. • • niet • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 56 Correct gebruik • • • • Uitpakken • • Uitpakken • Geleverd materiaal • • Alleen het model EUROSTAR power control-visc 6000: • • Motorsbescherming; beveiligingen • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 57 EUROSTAR power basic Toerentallen - normaalbedrijf EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, Toerental - geregeld (geen toerentalafwijking) EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000...
Page 58 Toerentallen - overbelastingsbedrijf Stroom - geregeld (afwijkingen in toerental mogelijk) EUROSTAR power basic Display draaimoment EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000 Een absolute draaimomentmeting is bij deze toestellen niet mogelijk.
Page 59 Interfaces en uitgangen – Analoge uitgang EUROSTAR power EUROSTAR digi - visc Commandosyntax en -formaat (10) (15) – Seriële interface RS 232 (V24) EUROSTAR power control - visc Configuratie van de seriële interface RS 232 C Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 60 Toerentallencurven NAMUR- commando Functie Verdere commando’s Funktie IKA specifiek Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 61 Montage - PC 5.1 Adaptor IKA-Control Bevestiging van de uithouderstang aan het roerapparaat Bevestiging van het roerapparaat aan het statief - PC 1.2 Adaptor - PC 2.1 Kabel - AK 2.1 Kabel - AK 2.2 Kabel Bevestiging van het roerapparaat in de spanklauw...
Page 62 Aangedreven as Bevestiging van de roerasbescherming Inschakelen toestel Zie ook de paragraaf “Veiligheidsinstructies” Onderhoud Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 63 Accessoires R 1826 www.ika.de R 2722 R 2723 R 182 R 270 R 271 R 301 Garantie RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 64 Technische gegevens 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 65 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 66 Toegestane roertoestellen van IKA ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 67 Indice • • • • • • • • • • Norme di securezza • • • Prima della messa in funzione si raccomanda di leggere le istruzioni per l’uso e di osservare attentamente le norme di sicurezza. • Non •...
Page 68 Campo di applicazione • • • • Disimballagio • • Disimballagio • • Dotazione di fornitura • Solo versione EUROSTAR power control-visc 6000: • • Protezione del motore; sistemi di sicurezza • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 69 EUROSTAR power basic Numeri di giri - regime normale EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, Numero di giri - regolato (nessuna variazione del numero di EUROSTAR power control - visc P4, giri) EUROSTAR power control - visc P7,...
Page 70 Numeri di giri - regime in sovraccarico Corrente - regolata (possibilità di variare il numero di giri) Visualizzazione di coppia EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, Con questi apparecchi non è...
Page 71 Interfacce e uscite - Uscita analogica EUROSTAR power basic e EUROSTAR power control-visc Sintassi e formato dei comandi (10) (15) - Interfaccia seriale RS 232 ( V24 ) EUROSTAR power control-visc Configurazione dell’interfaccia seriale RS 232 C soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 72 Comandi di rampa Comandi NAMUR Funzione Ulteriori comandi Funzione IKA specifico Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 73 Fissaggio - Adattatore controllo IKA PC 5.1 Fissaggio dell’asta del braccio all’agitatore Fissaggio dell’agitatore sullo stativo - Adattatore PC 1.2 - Cavo PC 2.1 - Cavo AK 2.1 Fissaggio dell’utensile di agitazione nel mandrino di serraggio - Cavo AK 2.2...
Page 74 Albero motore Fissaggio del dispositivo di sicurezza per l’albero di agitazione Accensione dellʼapparechio Si rimanda a tale scopo al paragrafo "Norme di sicurezza!" Manutenzione Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 75 Accessori R 1826 R 2722 R 2723 www.ika.de R 182 R 270 R 271 R 301 RH 3 RH 5 Garanzia RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 76 Specifiche tecniche 1/min 1/min °C Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 77 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 78 Agitatori IKA disponibili ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 79 Innehåll • • • • • • • • • • Säkerhetsanvisningar • inte • • Läs hela bruksanvisningen innan du börjar använda appara ten och observera säkerhetsbestämmelserna. • • • • • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 80 Användningsområde • • • Uppackning • • Uppackning • Leveransomfattning • • Endast version EUROSTAR power control-visc 6000: • • Motorskydd; säkerhetsanordningar Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 81 Varvtal, normal drift EUROSTAR power basic Varvtalsreglerat (ingen varvtalsavvikelse) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000...
Page 82 Varvtal, överlast Strömreglerat (varvtalsavvikelser möjliga) Angivelse av vridmoment EUROSTAR power basic På dessa apparater kan ingen absolut vridmomentmät- EUROSTAR power control - visc, ning ske. EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000 - Set Salue = Process Value (blinkande) : Set Salue >...
Page 83 Gränssnitt och utgångar Analog utgång EUROSTAR power EUROSTAR digi - visc) Kommandosyntax och format (10) (15) Seriellt gränssnitt RS 232 (V24) EUROSTAR power control - visc Konfiguration av seriellt RS 232-gränssnitt Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 84 Rampkommandon Instruktioner Funktion NAMUR Övriga Funktion kommandon IKA-specifika Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 85 Montering - PC 5.1 adapter IKA-Control Montering av utliggararmen på omröraren Montering av omröraren på stativet - PC 1.2 adapter - PC 2.1 kabel - AK 2.1 kabel Montering av omrörningsverktyget i chucken - AK 2.2 kabel Gäller alla EUROSTAR och EUROSTAR power omrörare...
Page 86 Drivaxel Montering av omröraraxelns skydd Tillslagning av apparaten Se avsnittet ”Säkerhetsanvisningar”. Underhåll Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 87 Tillbehör www.ika.de R 1826 Garanti R 2722 R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 88 Tekniska data 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 89 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 90 Tillåtna IKA-omrörare ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 91 Indholdsfortegnelse • • • • • • • • • • Sikkerhedshenvisninger • • inte • Läs hela bruksanvisningen innan du börjar använda apparaten och observera säkerhetsbestämmelserna. • • • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 92 • • Udpakning • • Udpakning • • • Leveringsomfang • • Kun version EUROSTAR power control-visc 6000: • Motorbeskyttelse; • sikkerhedsanordninger • Anvendelse i henhold til bestemmelserne Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 93 EUROSTAR power basic Omdrejningstal - Normaldrift EUROSTAR digital, EUROSTAR power control - visc, Omdrejningstal - justeret (ingen omdrejningstal-afvigelse) EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7 EUROSTAR power control - visc 6000...
Page 94 Omdrejningstal - verbelastningsdrift Strøm - justeret (omdrejningstal-afvigelse mulig) Omdrejningsmoment-indikator EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, En absolut omdrejningsmoment-måling er ikke mulig med appa- EUROSTAR power control - visc P7 raterne.
Page 95 Interfaces og udgange - Analogudgang EUROSTAR power basic EUROSTAR power control-visc Ordresyntaks og format (10) (15) - Serielt interface RS 232 ( V24 ) EUROSTAR power control-visc soft Konfiguration af det serielle RS 232 C interface soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 96 Rampe-ordrer NAMUR ordre Funktion Yderligere Funktion ordrer IKA specifikt Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 97 Fastgøres - PC 5.1 Adapter IKA-Control Fastgørelse af udlæggerstangen på røreværket Fastgørelse af røreværket til stativet - PC 1.2 Adapter - PC 2.1 Kabel - AK 2.1 Kabel Fastgørelse af røreværktøjet i spændepatronen - AK 2.2 Kabel Gælder for alle EUROSTAR og EUROSTAR power røreap- parater med spændepatron...
Page 98 Hovedaksel Fastgørelse af røreakselbeskyttelsen Tænding af apparatet De bedes lægge mærke til afsnittet vedrørende “Sikkerhedshenvisninger” ! Vedligeholdelse Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 99 Tilbehør www.ika.de R 1826 R 2722 R 2723 R 182 R 270 Garanti R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 100 Tekniske data 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 101 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 102 Tilladte IKA-røreværktøjer ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 103 Inhold • • • • • • • • • • Sikkerhetshenvisninger • ikke • Les hele bruksanvisningen før du begynner å bruke appara • tet, og følg sikkerhetsanvisningene. • • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 104 Formålstjenlig bruk • • • • • Pakke ut • Pakke ut • • Leveranseomfang • • Kun versjonen EUROSTAR power control-visc 6000: • • Motorvern; sikkerhetsinnretninger • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 105 Turtall - normal drift EUROSTAR power basic Turtall - regulert (ingen turtallavvik) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power basic...
Page 106 Turtall - overlastdrift Strøm - regulert (turtallavvik mulig) Dreiemomentindikering EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, En absolutt dreiemomentmåling er ikke mulig med appa- EUROSTAR power control - visc P7, ratene.
Page 107 Grensesnitt og utganger - Analogutgang EUROSTAR power basic EUROSTAR power control-visc Kommandosyntaks og format (10) (15) - Serielt grensesnitt RS 232 ( V24 ) EUROSTAR power control-visc Konfigurasjion for det serielle RS 232 C grensesnittet soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 108 Rampekommandoer NAMUR Funksjon kommandoer Ytterligere Funksjon kommandoer IKA spesifikk - PC 5.1 Adapter IKA-kontroll Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 109 - PC 1.2 Adapter Feste røreapparatet på stativet - PC 2.1 Ledning - AK 2.1 Ledning - AK 2.2 Ledning Feste røreverktøyet i chucken Ingangsetting Gjelder alle EUROSTAR og EUROSTAR elektriske røreap- parater med chuck Feste røreverktøyet i konusfestet Feste Gjelder bare EUROSTAR power control-visc 6000-røreap- parater: Feste forlengelsesarmen på...
Page 110 Utgående aksel Feste røreakselbeskyttelsen Innkopling av apparatet Vær hertil oppmerksom på avsnittet ”Sikkerhetshenvis- ninger”. Vedlikehold www.ika.de Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 111 Tilbehør Garanti R 1826 R 2722 R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 112 Tekniske data 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 113 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 114 Tillatte IKA-røreverktøy ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 115 Sisällys • • • • • • • • • • Määräystenmukainen käyttö • • Lue käyttöohje huolella ennen laitteen käyttöä ja nouda- • ta kaikkia turvallisuusohjeita. • • • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 116 Määräystenmukainen käyttö • • • • Purkaminen pakkauksesta • • • Purkaminen pakkauksesta • • Toimituksen sisältö • Vain versio EUROSTAR power control-visc 6000: • • Moottorinsuojus, varolaitteet Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 117 Kierrosluku, normaalikäyttö EUROSTAR power basic Kierrosluku - säädetty (ei käyntinopeuspoikkeamaa) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000...
Page 118 Kierrosluvut, ylikuorrmitusalue Virta - säädetty (kierrosluvun poikkeama mahdollinen) Vääntömomenttinäyttö EUROSTAR power basic Absoluuttinen vääntömomentin mittaus ei ole laitteilla mahdollista. EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000 - Set Value = Process Value (vikkuva) : Set Value >...
Page 119 Liitännät ja lähtö – Analogialähtö EUROSTAR power EUROSTAR digi-visc Käskyjärjestelmä ja esitystapa (10) (15) – Sarjaliitäntä RS 232 (V24) EUROSTAR power control-visc Sarjaliitännän RS 232 C konfigurointi soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 120 Ramppikäskyt NAMUR Toiminto käskyt Lisäkäskyt Toiminto IKA:n omat Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 121 Kiinnitys - PC 5.1 Sovitin IKA-Control Tangon kiinnitys sekoittimeen Sekoittimen kiinnitys jalustaan - PC 1.2 Soviti - PC 2.1 Kaapeli - AK 2.1 Kaapeli Sekoitustyökalun kiinnitys istukkaan - AK 2.2 Kaapeli Koskee kaikkia istukalla varustettuja EUROSTAR ja EUROSTAR power -sekoittimia Käyttöönotto...
Page 122 Käyttöakseli Sekoitusakselin suojuksen kiinnitys Ks. myös kohtaa “Turvallisuusohjeet”. Kunnossapito Laitteen kytkeminen päälle Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 123 Varusteet www.ika.de Takuu R 1826 R 2722 R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 124 Tekniset tiedot 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 125 1/min litraa Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 126 Sallitut IKA-sekoitustyökalut ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 127 Indice • • • • • • • • • Instruções de segurança • • • Antes de ligar o aparelho, recomendamos a leitura atenta • das instruções de utilização e a observação cuidadosa das normas de segurança. • • •...
Page 128 Utilização para os fins previstos • • • • • Desembalar • Desembalar • • Material fornecido de série • • Apenas para versão EUROSTAR power control-visc 6000: • • Protecção do motor, dispositivos de segurança • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 129 EUROSTAR power basic Número de rotações - funcionamento normal EUROSTAR digital, EUROSTAR power control - visc, Número de rotações - controlado (sem desvio no número de EUROSTAR power control - visc P1, rotações) EUROSTAR power control - visc P4, EUROSTAR power control - visc P7,...
Page 130 Número de rotações - funcionamento de sobrecarga Set Value > Process Value (intermitente) : Corrente - controlada (desvio no número de rotações possível) Indicação EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, Com estes aparelhos não é...
Page 131 Interfaces e saídas - Saída analógica EUROSTAR power basic EUROSTAR power control-visc (10) (15) Sintaxe de instruções e formato - Interface serial RS 232 ( V24 ) EUROSTAR power control-visc Configuração da interface serial RS 232 C soft é Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 132 Comandos de rampa Comandos Função NAMUR Outras Função instruções específicas de IKA Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 133 Fixação - PC 5.1 Adaptator IKA-control Fixação da vareta do braço ao agitador Fixação do agitador ao suporte - PC 1.2 Adaptator - PC 2.1 Cabo - AK 2.1 Cabo - AK 2.2 Cabo Fixação do dispositivo de agitação do mandril de aperto Para todos os agitadores EUROSTAR e EUROSTAR power Colocação em funcionamento...
Page 134 Veio de saída Fixação do dispositivo de segurança do veio de agitação Observe a este propósito o capítulo “Instruções de segurança”! Conexão do aparelho Manutenção e limpeza Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 135 Acessórios www.ika.de R 1826 R 2722 R 2723 R 182 R 270 R 271 Garantia R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 136 Dados técnicos 1/min 1/min °C 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 137 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 138 Ferramentas misturadoras IKA homologadas ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 139 Spis treści • • • • • • • • • Wskazówki bezpieczeństwa • • Przed uruchomieniem należy dokładnie przeczytać in- strukcję obsługi i zapoznać się ze wskazówkami bezpiec- • zeństwa. • • Nie • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 140 • Użycie zgodne z przeznaczeniem • • • • • Rozpakowanie • Rozpakowanie • Zakres dostawy • • ersja EUROSTAR power control-visc 6000: • • Ochrona silnika, urządzenia za bezpie- • czające • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 141 EUROSTAR power basic Prędkości obrotowe – EUROSTAR digital, praca w warunkach normalnych EUROSTAR power control - visc, EUROSTAR power control - visc P1, Pr dko obrotowa – regulowana (brak odchylenia pr dkoci ob- EUROSTAR power control - visc P4, rotowej)
Page 142 Set Value > Process Value (minganie) : Prędkości obrotowe – praca przy przeciążeniu Prąd – regulowany (możliwość odchylenia prędkości obroto- wej) Wskaźnik momentu obrotowego EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7, EUROSTAR power control - visc 6000 Set Value = Process Value (minganie) :...
Page 143 Interfejsy i wyj cia - Wyjście analogowe EUROSTAR power basic EUROSTAR power control-visc Składnia polecenia i format (10) (15) - Interfejs szeregowy RS 232 ( V24 ) soft Konfiguratcja interfejsu szeregowego RS 232 C soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 144 Polecenia funkcji liniowo-rosnącej Działanie poleceń Funkcje NAMUR Pozostałe poleceń Funkcje Dotyczy urządzeń IKA Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 145 - Przystawka IKA-Control PC 5.1 Zamontowanie Przymocowanie drążka wysięgnika do mieszadła Przymocowanie mieszadła do statywu - Przystawka PC 1.2 - Kabel PC 2.1 - Kabel AK 2.1 Przymocowanie przyrządu mieszającego do uchwytu zacisko- wego - Kabel AK 2.2 Dotyczy wszystkich mieszadeł EUROSTAR i EUROSTAR power...
Page 146 Wał napędowy Przymocowanie osłony pręta mieszającego Należy przestrzegać wskazówek z rozdziału „Wskazówki bez- pieczeństwa!” Włączenie urządzenia Utrzymanie w dobrym stanie Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 147 O O s s p p r r z z ę ę t t R 1826 R 2722 R 2723 R 182 www.ika.de R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 Gwarancja AM 1 PC 1.2...
Page 148 Dane Techniczne 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 149 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 150 Dopuszczone przyrządy mieszające IKA ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 151 • Seznam • • • • • • • • • • Bezpečnostní upozornění • • Pﬁed uvedením pﬁístroje do provozu si kompletnû proãtûte • návod k pouÏití a dodrÏujte peãlivû bezpeãnostní pokyny. • • • • • • • Artisan Scientific - Quality Instrumentation ...
Page 152 • Použití v souladu s původním určením stroje • • • • Vybalení • Vybalení • • Rozsah dodávky • • Jen verze EUROSTAR power control-visc 6000: • • • Jištění motoru; bezpečnostní zařízení Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 153 Počty otáček – běžný provoz EUROSTAR power basic Po et otá ek – regulovaný (bez odchylky po tu otá ek) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7...
Page 154 Počty otáček – přetížení Proud – regulovaný (je možná odchylka počtu otáček) Ukazatel krouticího momentu EUROSTAR power basic Absolutní měření krouticího momentu není u těchto přístrojů EUROSTAR power control - visc, možné. EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7 EUROSTAR power control - visc 6000 Set Value = Process Value (blikající)
Page 155 Rozhraní a výstupy - Analogový výstup EUROSTAR power basic EUROSTAR power control-visc Syntaxe a formát příkazů (10) (15) - Sériové rozhraní RS 232 (V24) EUROSTAR power control-visc soft Konfigurace sériového rozhraní RS 232 C Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 156 Příkazy náběhu Funkce příkazů NAMUR Funkce Funkce dalších příkazů Funkce Specifické pro IKA Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 157 - PC 5.1 Adapter IKA-Control Upevnění Upevnění tyče ramena k míchacímu zařízení Upevnění míchacího zařízení ke stativu - PC 1.2 A A d d a a p p t t é é r r - PC 2.1 Kabel - AK 2.1 Kabel Upevnění...
Page 158 Hnací hřídel Upevnění ochrany míchacího hřídele Respektujte část „Bezpečnostní pokyny“! Údržba Zapnutí přístroje Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 159 Záruka IKA. . www.ika.de R 1826 R 2722 R 2723 Potřebná oprava R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2...
Page 160 Technická data 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 161 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 162 Přípustné míchací nástroje IKA ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 163 Tartalomjegyzék • • • • • • • • • • Biztonsági utasítások • • Üzembehelyezés előtt gondosan olvassa el a használati utasítást, és vegye figyelembe a biztonsági előírásokat. • Ne • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 164 • Rendeltetésszerű használat • • • • Kicsomagolás • Kicsomagolás • • Szállított elemek • • Csak az EUROSTAR power control-visc 6000 változat: • • Motorvédelem; biztonsági berendezések • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 165 EUROSTAR power basic Fordulatszámok – normál üzem Szabályozott fordulatszám (nincs fordulatszám eltérés) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7 EUROSTAR power basic...
Page 166 Fordulatszámok – túlterheléses üzem Szabályozott fordulatszám (lehet fordulatszám eltérés) Forgatónyomaték kijelzése EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, A készüléken nincs lehetőség abszolút forgatónyomaték EUROSTAR power control - visc P7, érték mérésére.
Page 167 Csatlakozási pontok (portok) és kimenetek - Analóg kimenet EUROSTAR power basic EUROSTAR power control-visc Parancs szintaxis és formátum valamennyi verziója (10) (15) - RS 232 (V24) soros port ( V24 ) EUROSTAR power control-visc soft A soros RS 232 port konfigurációja soft Artisan Scientific - Quality Instrumentation ...
Page 168 Felfutási utasítások NAMUR utasítások Funkciója További utasítások Funkciója IKA specifikus Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 169 Rögzítés - PC 5.1 adapter IKA vezérlés A tartókar rúd rögzítése a keverőművön A keverőmű rög zítése az állványon - PC 1.2 adapter - PC 2.1 kábel - AK 2.1 kábel A keverőszerszám rögzítése a tokmányban - AK 2.2 kábel Minden tokmányos EUROSTAR és EUROSTAR power...
Page 170 Meghajtó tengely Keverőtengely védelem rögzítése Vegye figyelembe a „Biztonsági utasítások” fejezet anyagát! Karbantartás A készülék bekapcsolása Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 171 Tartozékok www.ika.de R 1826 Szavatosság R 2722 R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 172 Műszaki adatok 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 173 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 174 Engedélyezett IKA-keverőszerszámok ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 175 • Vsebina • • • • • • • • • • Varnostna navodila • • Pred zagonom v celoti preberite Priročnik za uporabo in upo- števajte varnostna navodila. • • • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 176 • Uporaba v skladu z namenom • • • Razpakiranje • Razpakiranje • • Obseg dobave • • Samo različica EUROSTAR power control-visc 6000: • • • Zaščita motorja, varnostne priprave Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 177 EUROSTAR power basic Število vrtljajev – običajno delovanje Število vrtljajev – krmiljeno (ni odstopanja števila vrtljajev) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7...
Page 178 Število vrtljajev – delovanje pri preobremenitvi Regulacija toka (mogoče odstopanje števila vrtljajev) EUROSTAR power basic Prikaz navora EUROSTAR power control - visc, EUROSTAR power control - visc P1, Absolutna meritev navora z napravami ni možna. EUROSTAR power control - visc P4, EUROSTAR power control - visc P7 EUROSTAR power control - visc 6000 Set Value = Process Value (utripajoče) :...
Page 179 Vmesniki in izhodi - Analogni izhod EUROSTAR power basic EUROSTAR power control-visc Sintaksa ukazov in format (10) (15) - Serijski vmesnik RS 232 ( V24 ) EUROSTAR power control-visc soft Konfiguracija serijskega vmesnika RS 232 C soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 180 Robni ukazi ukazi NAMUR Funkcija Drugi ukazi Funkcija IKA specifično Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 181 PC 5.1 Adapter IKA-Control Pritrditev Pritrditev nosilnega droga na mešalo Pritrditev mešala na stojalo PC 1.2 Adapter PC 2.1 Kabel AK 2.1 Kabel Pritrditev mešalnega orodja v vpenjalno glavo AK 2.2 Kabel Za vse mešalne naprave z vpenjalno glavo EUROSTAR in...
Page 182 Pogonska gred Pritrditev zaščite mešalne gredi Upoštevajte poglavje »Varnostna opozorila«! Vzdrževanje Vklop naprave Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 183 Oprema www.ika.de Garancija R 1826 R 2722 R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 184 Tehnični podatki 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 185 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 186 Dopustna mešalna orodja IKA ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 187 Obsah • • • • • • • • • Bezpečnostné pokyny • • Prečítajte si celý návod na obsluhu už pred uvedením zaria denia do prevádzky a rešpektujte bezpečnostné pokyny. • neuvádzajte • • • • • • • •...
Page 188 • Použitie v súlade s určením • • • • Vylbaľovanie • Vylbaľovanie • • Rozsah dodávky • Iba verzia EUROSTAR power control-visc 6000: • • • • Motorový istič, bezpečnostné zariadenia • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 189 EUROSTAR power basic Rýchlosti otáčania – normálna prevádzka Rýchlosť otáčania - regulovaná (bez odchýlok rýchlosti otáčania) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7...
Page 190 Rýchlosti otáčania – Prevádzka s preťažením Prúd - regulovaný (možné odchýlky rýchlosti otáčania) EUROSTAR power basic Indikácia to ivého momentu EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7 EUROSTAR power control - visc 6000 Set Value = Process Value ((bliká) : Set Value >...
Page 191 Rozhrania a výstupy - Analógový výstup EUROSTAR power basic EUROSTAR power Syntax a formát povelov control-visc (10) (15) - Sériové rozhranie RS 232 ( V24 ) EUROSTAR power control-visc soft Konfigurácia sériového rozhrania soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 192 Rampové povely Funkcia povelov Funkcia NAMUR Funkcia ďalších povelov Funkcia Špecifické pre IKA Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 193 - PC 5.1 Adapter IKA-Control Upevnenie Upevnenie tyčky výložníka na miešačke Upevnenie miešačky na statíve - PC 1.2 Adaptér - PC 2.1 Kábel - AK 2.1 Kábel Upevnenie miešacieho nástroja v skľučovadle Platí pre všetky miešačky EUROSTAR a EUROSTAR power so - AK 2.2 Kábel...
Page 194 Výstupný hriadeľ Upevnenie chrániča miešacieho hriadeľa V tejto súvislosti rešpektujte pokyny v časti „Bezpečnostné pokyny“! Starostlivosť a údržba Zapnutie prístroja Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 195 Príslušenstvo www.ika.de R 1826 R 2722 Záruka R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 196 Technické údaje 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 197 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 198 Spoľahlivé miešacie nástroje IKA ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 199 • Sisukord • • • • • • • • • • Ohutusjuhised • • Lugege kasutusjuhend enne kasutuselevõttu täielikult läbi ja • järgige ohutusnõudeid. • • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 200 • Eesmärgipärane kasutamine • • • • Lahtipakkimine • Lahtipakkimine • • • Tarnekomplekt • Vaid versioon: EUROSTAR power control-visc 6000: • • • Mootorikaitse; turvaseadeldised Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 201 EUROSTAR power basic Pöörete arvud – tavarežiim Pöörete arv – reguleeritud (pöörete arvu erinevust ei ole) EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power basic EUROSTAR power control - visc P7...
Page 202 Pöörete arvud – ülekoormuse režiim Vool – reguleeritud (pöörete arvu erinevused võimalikud) Pöördemomendi näidik EUROSTAR power basic Absoluutne pöördemomendi mõõtmine ei ole seadmetega EUROSTAR power control - visc, võimalik. EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7 EUROSTAR power control - visc 6000 Set Value = Process Value (vilkuv):...
Page 203 Liidesed ja väljundid - Analoogväljund EUROSTAR power basic EUROSTAR power control-visc (10) (15) Käsusüntaks ja formaat - Jadaliides RS 232 (V24 EUROSTAR power control-visc soft Jadaliidese RS 232 C konfigureerimine Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 204 Rambikäsud NAMURi käsud Funktsioon Täiendavad käsud Funktsioon IKA-spetsiifiline Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 205 - PC 5.1 Adapter IKA-Control Kinnitamine Konsooli varda kinnitamine seguri külge Seguri kinnitamine statiivi külge - PC 1.2 adapter - PC 2.1 kaabel - AK 2.1 kaabel Seguri kinnitamine padrunis - AK 2.2 kaabel Puudutab kõiki EUROSTAR ja EUROSTAR power segureid koos padruniga Kasutuselevött...
Page 206 Veetav võll Seguri võlli kaitse kinnitamine Järgige siinkohal peatükki „Ohutusalased nõuanded!” Hooldus Seadme sisselülitamine Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 207 Tarvikud www.ika.de G G a a r r a a n n t t i i i i R 1826 R 2722 R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2...
Page 208 Tehnilised parameetrid 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 209 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 210 Lubatud IKA-segurid ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 211 • Satura rādītājs • • • • • • • • • Drošības norādes • Nedarbiniet • Pirms iekārtas nodošanas ekspluatācijā uzmanīgi izlasiet lie tošanas instrukciju un ņemiet vērā drošības norādījumus. • • • • • • • • • Artisan Scientific - Quality Instrumentation ...
Page 212 • Pareizas ekspluatācijas noteikumi • • • • Izņemšana no iepakojuma • Izņemšana no iepakojuma • • Komplektācijā ietilpst: • • • Tikai EUROSTAR power control-visc 6000 versija: • • Motora aizsardzība, drošības ierīces Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 213 EUROSTAR power basic Apgriezienu skaits normālā darbībā Apgriezienu skaits – noregulēts (nav apgriezienu skaita noviržu EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, EUROSTAR power control - visc P4, EUROSTAR power control - visc P7...
Page 214 Apgriezienu skaits pārslodzes darbībā Strāva – noregulēta (iespējamas apgriezienu skaita novirzes) Griezes momenta rādītājs EUROSTAR power basic EUROSTAR power control - visc, Absolūts griezes momenta mērījums ar ierīcēm nav iespē- EUROSTAR power control - visc P1, jams. EUROSTAR power control - visc P4, EUROSTAR power control - visc P7 EUROSTAR power control - visc 6000 Set Value = Process Value (mirgojošs) :...
Page 215 Saskarnes un izejas - Analogā izeja Komandas sintakse un formāts (10) (15) - Sēriju saskarne RS 232 ( V24 ) soft Sēriju saskarnes RS 232 C konfigurācija Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 216 Kopņu komandas NAMUR komandu Funkcija Citas komandu Funkcijas specifiski IKA Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 217 - PC 5.1 adapters IKA-Control Nostiprināšana Konsoles stieņa nostiprināšana pie homogenizatora Maisīšanas rīka nostiprināšana pie statīva - PC 1.2 adapters - PC 2.1 kabelis - AK 2.1 kabelis Maisīšanas rīka nostiprināšana iespiedpatronā - AK 2.2 kabelis Attiecas uz visiem EUROSTAR un EUROSTAR power homoge- nizatoriem ar iespiedpatronu.
Page 218 Piedziņas vārpsta Homogenizatora vārpstas aizsarga nostiprināšana Ievērojiet nodaļu „Drošības norādes!” Tehniskā apkope Ierīces ieslēgšana Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 219 Piederumi www.ika.de Garantija R 1826 R 2722 R 2723 R 182 R 270 R 271 R 301 RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 220 Tehniskie dati 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 221 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 222 Atļautie IKA maisīšanas rīki ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 223 Turinys • • • • • • • • • • Nenaudokite Saugos reikalavimai • • Prieš pradėdami naudotis prietaisu, perskaitykite visą nau- • dojimo instrukciją ir laikykitės saugos reikalavimų. • • • • • • • • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 224 • Tinkamas naudojimas • • • • Išpakavimas • Išpakavimas • • Komplektas • • Tik EUROSTAR power control-visc 6000 versija: • • Variklio apsauga; saugumo įrenginiai • Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 225 EUROSTAR power basic Apsukų skaičius – normalus veikimo režimas EUROSTAR digital, EUROSTAR power control - visc, EUROSTAR power control - visc P1, Apsukų skaičius - sureguliuotas (jokio nukrypimo nuo nor- EUROSTAR power control - visc P4, malaus apsukų skaičiaus) EUROSTAR power control - visc P7...
Page 226 Apsukų skaičius – perkrovos režimas Elektros srovė - sureguliuota (galimi apsukų skaičiaus nukrypimai) Sukimo momento indikacija EUROSTAR power basic EUROSTAR power control - visc, EUROSTAR power control - visc P1, Absoliučiai išmatuoti sukimo momentą prietaisais neįma- EUROSTAR power control - visc P4, noma.
Page 227 Sąsajos ir išėjimai - Analoginis išėjimas EUROSTAR power basic EUROSTAR power control-visc (10) (15) Komandų sintaksė ir formatas - Serijinė sąsaja Schnittstelle RS 232 ( V24 ) soft Serijinės RS 232 C sąsajos konfigūracija soft Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 228 Rampos komandos NAMUR komandų Funkcija Kitų funkcijų Funkcija komandos IKA specifinės Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 229 - PC 5.1 Suderintuvas IKA-Control Tvirtinimas Kronšteino skersinio tvirtinimas prie maišytuvo Maišytuvo tvirtinimas prie stovo - PC 1.2 Suderintuvas - PC 2.1 Laidas - AK 2.1 Laidas Maišymo mechanizmo tvirtinimas griebtuve - AK 2.2 Laidas Skirta visiems EUROSTAR ir EUROSTAR power maišymo...
Page 230 Išėjimo velenas Maišymo veleno apsaugos tvirtinimas Atkreipkite dėmesį į skyrių „Saugumo nuorodos!“ Priežiūra Prietaiso įjungimas Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 231 Priedai www.ika.de R 1826 R 2722 R 2723 R 182 R 270 R 271 R 301 Garantija RH 3 RH 5 RC 1 FK 1 AM 1 PC 1.2 PC 2.1 PC 5.1 AK 2.1 AK 2.2 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 232 Techniniai duomenys 1/min 1/min °C 1/min 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 233 1/min Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
Page 234 Leistini IKA maišymo mechanizmai ≤ R 1342 ≤ R 1345 ≤ R 1381 ≤ R 1382 ≤ R 1385 ≤ 8 R 1389 ≤ R 1311 ≤ R 1312 ≤ R 1313 ≤ R 1300 ≤ R 1302 ≤ R 1303 ≤...
Page 235 ¤ ¤ ¤ ¤ ¤ Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...

This manual is also suitable for:

Eurostar power control-visc p1 Eurostar power control-visc p4 Eurostar power control-visc Eurostar power control-visc p7 Eurostar power control-visc 6000

IKA EUROSTAR digital Operating Instructions Manual
