20000023854
DO 125 control_032019
IKA Oven 125 control - dry
IKA Oven 125 control - dry glass
Operating instructions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oven 125 control - dry glass and is the answer not in the manual?

Questions and answers

Summary of Contents for IKA Oven 125 control - dry glass

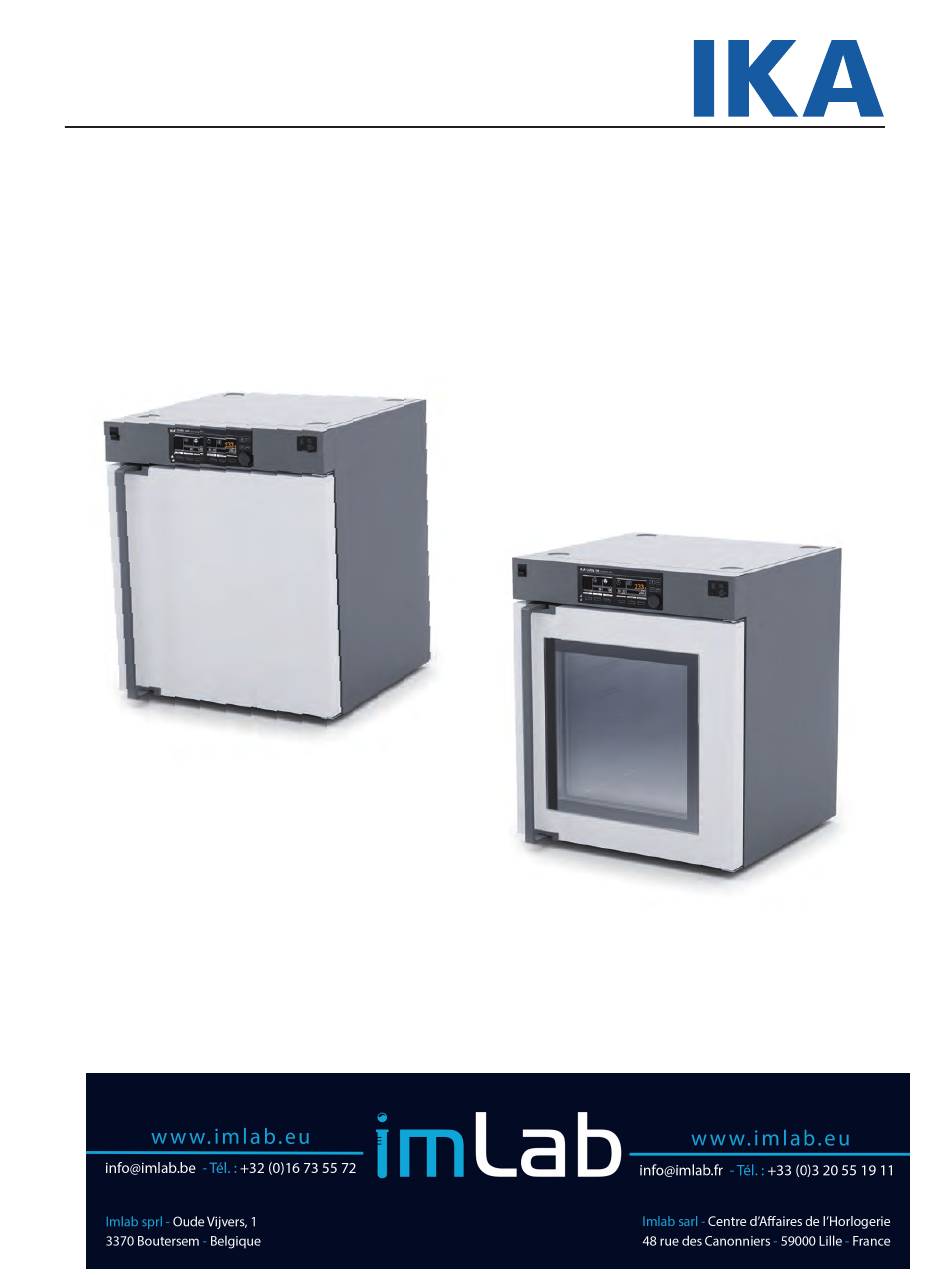

  • Page 1 20000023854 DO 125 control_032019 IKA Oven 125 control - dry IKA Oven 125 control - dry glass Operating instructions...
  • Page 2: Device Setup/Dangerous Spots

    Device setup/Dangerous spots Device setup IKA Oven 125 control - dry/ IKA Oven 125 control - dry glass Fig. 1 Pos. Designation Mains switch Door handle Device foot Operator Panel and display 1. + 2. USB interfaces 3. Limits 4. Interface for external temperature sensor...
  • Page 3: Table Of Contents

    Source language: German Contents Page Device setup/Dangerous spots ............................2 EU-Declaration of conformity ............................4 Explanation of warning symbols ............................. 4 Safety instructions ................................4 Intended use ................................... 6 Use ........................................6 Area of use ......................................6 Useful information ................................6 General ........................................
  • Page 4: Eu-Declaration Of Conformity

    2011/65/EU and conforms with the following standards or normative documents: EN 61010-1, EN 61010-2-010, EN 61326-1, EN 60529, EN ISO 12100 and DIN 12880. A copy of the complete EU Declaration of Conformity can be requested at sales@ika.com. Explanation of warning symbols Indicates an (extremely) hazardous situation, which, if not avoided, will result in death or serious injury.
  • Page 5 • Only use IKA approved accessories! NOTICE the roller frame or roller stand. • Use only original IKA spare parts! • Check the device and accessories for damage before each • Safe operation is only guaranteed with the accessories de- use.
  • Page 6: Intended Use

    Intended use The IKA Oven 125 basic - dry is a drying oven for a wide range of stances and objects. Do not process substances or objects that heating, drying and heating applications. might cause explosive vapour. The device must only be used for heating up non-explosive sub-...
  • Page 7: Temperature Monitoring

    Temperature monitoring The temperature monitoring function is a constantly active function whenever the heating operation of the device is turned “ON”. The main purpose of this function is to notify the user in the case of abnormal temperature behaviour such as overshoot and undershoot. The hysteresis level is adjustable from 1.0 K to 20.0 K and the factory default value would be 10.0 K.
  • Page 8: Unpacking

    In case of any damage a detailed report must be sent imme- diately (post, rail or forwarder). Scope of delivery • USB cable • IKA Oven 125 control - dry or IKA Oven 125 control - dry glass • User guide • 2 shelves •...
  • Page 9 In order to keep enough space, Never stack more than two devices. CAUTION NOTICE please use stacking adapter rec- When stacking the device, four per- ommend by IKA. sons are required to lift it. Stacking < 150 mm adapter > 150 mm...
  • Page 10 Changing the door opening direction When changing the door opening  Open the door. WARNING direction, two persons are required  Hold the door and loosen the hinge pin with a suitable tool. due to the heavy weight of the ...
  • Page 11: Operator Panel And Display

    Operator panel and display Operator panel Pos. Designation Function Light button Switch light on/off Lock key: Lock/unlock keys. “Menu” button: Open/close main menu “Back” button: Back to previous menu item Rotary/push knob: Navigate, select and change menu inputs, start/stop Temperature selection button: Temperature input, screen quick access Selection button: No function...
  • Page 12: Setting The Temperature Limit

    After the start screen, the information start screen for the Firmware Update Tool appears. You can use the tool to update the software of your IKA device to the latest version. Firmware updates contain new functions or optimisations of previous functions.
  • Page 13: Menu Settings

    Menu settings Menu structure Factory settings Temperature Control mode Exact PID............................activated Fast PID............................Int/probe sensor Internal......................activated External......................Monitoring Hysteresis............................10.0 K Heating OFF (forced)............................Calibrate Internal Temperature 1....................60.0°C/140.0°F Temperature 2....
  • Page 14: Navigation In The Menu

    Navigation in the menu When the temperature control is • Push or turn the rotary/push knob (E) again to select the de- NOTICE active, the menu is locked, while sired menu option and edit the values or settings, or activate/ all the selection buttons on the deactivate a function.
  • Page 15 Operating mode Mode C: Set values (set in mode A or B) cannot be changed. After Mode A: After power on/power failure no automatic restart of functions. power on/power failure automatic restart of functions, depending on previous settings. Mode B: After power on/power failure automatic restart of func- tions, depending on previous settings.
  • Page 16: Operation

    Datei Manager Memory Info User information on the memory that is available. Einstellungen Languages The following parameters can be selected by the user for the reset. The “Languages” option allows the user to select the desired lan- Settings guage. • Programs •...
  • Page 17: Counter And Timer

    Counter and Timer: Timer On the working screen: Timer/counter (H) selection button: Press the selection button under the time. Press and turn the rotary/push knob (E) to set the tempera- ture. (Increase by turning clockwise, reduce by turning anti- clockwise) Press the rotary/push knob (E).
  • Page 18: Graph

    EIA standard RS 232 in accordance with Install the driver by running the setup file. Then connect the IKA ® DIN 66 020 Part 1.
  • Page 19 With a suitable terminal or communications programme these com- mendations for the design of electrical plug connections for analogue and digital signal transmission on individual items of mands can be transmitted directly to the device. The IKA software ® laboratory control equipment, rev. 1.1).
  • Page 20: Maintenance And Cleaning

    Do not allow moisture to get into the device when cleaning. • If a different cleaning or decontamination method than the method defined by IKA is planned, you must ascertain from IKA that this method does not damage the device. Warranty...
  • Page 21: Error Codes

    Error code Cause Effect Solution Internal sensor error Internal temperature sensor defective/ Heating off Contact the IKA Service Department. missing External sensor error a) External temperature sensor defective/ Heating off Plug in the external temperature sensor missing correctly. b) External temperature sensor is not Contact the IKA Service Department.
  • Page 22: Technical Data

    700 x 825 x 650 Weight Oven 125 control- dry 82 (Oven 125 control - dry + 2 racks) Weight Oven 125 control- dry 89 (Oven 125 control - dry glass + 2 racks) Permitted ambient temperature range °C 5 - 40...
