Summary of Contents for Campbell COM220

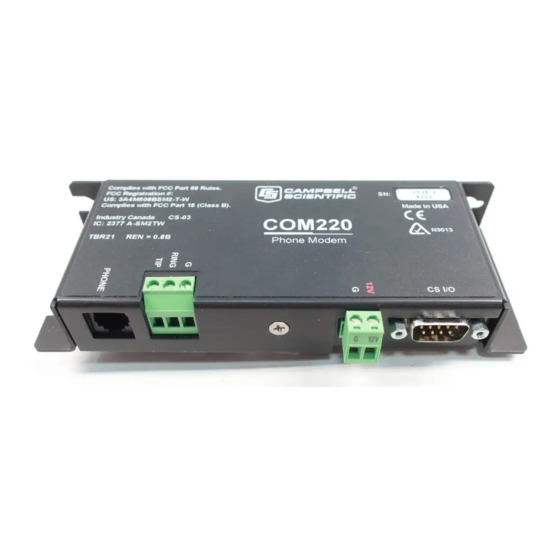

- Page 1 COM220 Telephone Modem Revision: 3/07 C o p y r i g h t © 1 9 9 7 - 2 0 0 7 C a m p b e l l S c i e n t i f i c ,...
-
Page 2: Warranty And Assistance
Warranty and Assistance The COM220 TELEPHONE MODEM is warranted by CAMPBELL SCIENTIFIC, INC. to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless specified otherwise. Batteries have no warranty. CAMPBELL SCIENTIFIC, INC.'s obligation under this warranty is limited to repairing or... -
Page 3: Table Of Contents
3.4 Telephone Service ...4 A.1 DIP Switch Settings ... A-1 A.2 Hayes AT Commands ... A-2 A.3 Downloading a New Operating System to the COM220... A-6 A.4 Program Examples... A-7 A.4.1 ModemCallback Example (for CR1000) ... A-7 A.4.2 DialModem Example (for CR1000)... A-8 A.4.3 P97 Instruction (for CR10X)... -
Page 4: List Of Figures
A-4. Send OS Screen in Device Configuration... A-7 B-1. CS I/O Pin Out ... B-1 List of Tables 1. Dataloggers that Require Direct 12 VDC Connection to COM220... 4 A-1. Selecting ME Baud-rates via DIP Switches 3 and 4... A-2 A-2. Maximum Datalogger ME Baud-rate ... A-2... -
Page 5: Introduction
(SDC) and modem enable (ME) communication, as well as various ME baud rates (9600 to 115200). The default settings for the COM220 at shipping are SDC7, and PakBus ready (see Appendix A for details). The default settings ARE NOT compatible with dataloggers that have non-PakBus operating systems (e.g., CR510,... -
Page 6: Computer Requirements
Scientific dataloggers (except the CR200 series). This is not an RS-232 connection. Appendix B describes the CS I/O interface. The COM220 can be used as an originate modem at the datalogger site. For non-Pakbus dataloggers (e.g., CR510, CR10X, CR23X), and for older PakBus dataloggers (e.g. -
Page 7: Specifications
Weight: 0.35 lbs (0.16 kg) 3. Installation The COM220 is designed to be used with standard analog telephone lines. It will not work with a digital telephone line. Connection to telephone-company- provided coin service (central office implemented systems) is prohibited. -
Page 8: Connecting To Earth Ground
When using a PakBus network with a datalogger configured as a router, the COM220 can be set for SDC7 and the radio for SDC8, or vice versa. Contact a Campbell Scientific Applications Engineer for more information. - Page 9 POWER OUT COM1 COM2 Rx Tx Rx Earth Ground Phone Line Transient Protector (Model 6362 or 2372-01) FIGURE 3. CR1000 and COM220 Using Remote Telephone Line POWER IN G 12V CAUTION DC ONLY GROUND CR1000 WIRING PANEL RS-232 (Not Isolated)
-
Page 10: Modem Settings
COM220 Telephone Modem Telephone Wall Jack FIGURE 4. CR10X with CR10 Wiring Panel and COM220 Using RJ11C Telephone Jack 4. Modem Settings The COM220 comes from the factory with the appropriate settings for PakBus dataloggers (e.g., CR8x0, CR1000, CR3000, CR10XPB, CR23XPB). It is programmed to answer a call as soon as a call is detected. -
Page 11: Troubleshooting
For example, the COM220 is sharing a line with people at an office. It can be programmed to only answer after the third ring. If the PC calls when the office is closed and no one answers the phone after three rings, the datalogger will pick it up. - Page 12 Instructions for setting the COM220’s ME baud rate are found in Appendix A.1. 5) If the COM220 is set for Modem Enable (DIP switch 1 open) and you are unable to connect to the datalogger, try setting the datalogger BaudrateME to a negative number (e.g.
- Page 13 If not, contact your local telephone company. If you can make a call out but the connection is poor or faint, contact your local telephone company. 12) Verify the COM220 is receiving 12 VDC. If the COM220 is receiving 12 VDC from a separate power supply instead of the datalogger, is the ground of the separate power supply connected to the datalogger’s ground?
- Page 14 COM220 Telephone Modem This is a blank page.
-
Page 15: Appendix A. Changing Com220 Settings
1 must be open (i.e., Modem Enable mode selected). DIP Switches 3 and 4: ME Baud-rates DIP switches 3 and 4 only have effect when the COM220 is in Modem Enable mode. If the COM220 is in ME mode, switches 3 and 4 select the baud-rate... -
Page 16: Hayes At Commands
SC532 or SC532A device. An SC12 cable must be connected to the peripheral port on the SC532 or SC532A and the CS I/O port on the COM220. Another cable should connect the “RS232” port (if using an SC532 device) or the “PC”... - Page 17 SC532(A) or SC532 to the CS I/O port on the modem with a SC12 cable. If using a SC532, you will also have to apply 12V to the COM220 via a green connector attached to a power supply. If using an SC532A...
- Page 18 7) Follow the instructions that appear in the terminal emulator screen (Figure A-3). 8) Be sure to save all new commands before exiting (by entering 5 and enter). 9) When finished, return DIP switch 8 on the COM220 to its open position. FIGURE A-2. Device Configuration Screen...
- Page 19 Appendix A. Changing COM220 Settings FIGURE A-3. Terminal Emulator Screen in Device Configuration HAYES AT COMMAND SUMMARY: This manual does not attempt to be a primer on the Hayes AT command set. The commands are, therefore, only summarized below. For most applications, these commands will not need to be used.
-
Page 20: Downloading A New Operating System To The Com220
SC12 cable. If using an SC532, you will also have to apply 12 V to the COM220 via a green connector attached to a power supply. If using an SC532A device, power will be provided to the modem... -
Page 21: Program Examples
Sample (1,batt_volt,FP2) Minimum (1,batt_volt,FP2,0,False) Maximum (1,batt_volt,FP2,False,False) Sample (1,PTemp,FP2) Minimum (1,PTemp,FP2,0,False) Maximum (1,PTemp,FP2,False,False) Sample (1,Count,FP2) EndTable BeginProg Scan (2,Min,3,0) Count = Count + 1 PanelTemp (PTemp,250) Battery (Batt_volt) Appendix A. Changing COM220 Settings FIGURE A-4. Send OS Screen in Device Configuration... -
Page 22: Dialmodem Example (For Cr1000
End Program A.4.2 DialModem Example (for CR1000) The program below does 2-minute callbacks via the COM220 configured for SDC7. DialModem is set equal to a variable, so that the success/failure result can be used by the EndDialSequence instruction. If the call fails, the link will be terminated at the EndDialSequence instruction. -
Page 23: P97 Instruction (For Cr10X
“20” CONNECT7200 “21” CONNECT12000 “25” CONNECT14400 Hence, to work with the COM220, the user must put in a NULL string, else the DialModem will fail unless by chance it returns the specific string the user entered. Therefore, it is highly recommended to use the “” string for the connect... - Page 24 In the example below, the program does two minute data callbacks via the COM220 phone modem. Edit instruction 13 with your PC’s (LoggerNet’s) phone number. Remember to set COM220 DIP switch 5 to “closed”, switch 1 open for Modem Enable mode, and switches 3 and 4 open for 9600 baud. The callback ID in this example is 222.
-
Page 25: Example Programs For Data-Callbacks Via A Cr1000 Datalogger Router
A.4.4 Example Programs for Data-Callbacks via a CR1000 Datalogger Router. In order to do data callbacks via a datalogger router with COM220 and RF401s or MD485s, they must all be configured to communicate with one another. In addition, two programs are necessary: one for the datalogger router and one for the remote datalogger. - Page 26 Sample (1,PanelTemperature,FP2) EndTable DialSequence (4094) StaticRoute(ComSDC8,4094,4094) DialSuccess = DialModem (ComSDC8,9600,"5551212","") ‘ Param 4 = "" allows CR1000 to accept all possible COM220 responses ‘ DialSuccess: -1 means successful, 0 means failure. EndDialSequence (DialSuccess) BeginProg Scan (2,Sec,0,0) PanelTemp (PanelTemperature,250) Battery (BatteryVoltage)
-
Page 27: Appendix B. Cs I/O Connection
0 V for logic low, 5 V for logic high. FIGURE B-1. CS I/O Pin Out 1. (input) +5 VDC supply. Not used by COM220. 2. (input) Ground 3. (output) Ring - a logic high signifies a ring signal has been detected 4. - Page 28 This is a blank page.
-
Page 29: Appendix C. Theory Of Operation
The COM220 is supplied with 12 V from the datalogger’s CS I/O connector or from the COM220’s external power connector. The 12 V is then regulated to +5 V to give power to the ring detect circuitry. - Page 30 This is a blank page.
-
Page 31: Appendix D. Fcc Warning To Users Of Class B Computing Devices
Appendix D. FCC Warning to Users of Class B Computing Devices WARNING This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. tested and found to comply with the limits for a Class B computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide... - Page 32 This is a blank page.
-
Page 33: E. Ic Information
Appendix E. IC Information NOTE CP-01, Issue 8, Part I Section 14.1 CAUTION CP-01, Issue 8, Part I Section 14.2 Industry Canada (IC) was formerly known as DOC. “NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). - Page 34 This is a blank page.
- Page 35 This is a blank page.
-
Page 36: Campbell Scientific Companies
Campbell Scientific Africa Pty. Ltd. (CSAf) Campbell Scientific Australia Pty. Ltd. (CSA) Please visit www.campbellsci.com to obtain contact information for your local US or International representative. Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com info@campbellsci.com...
