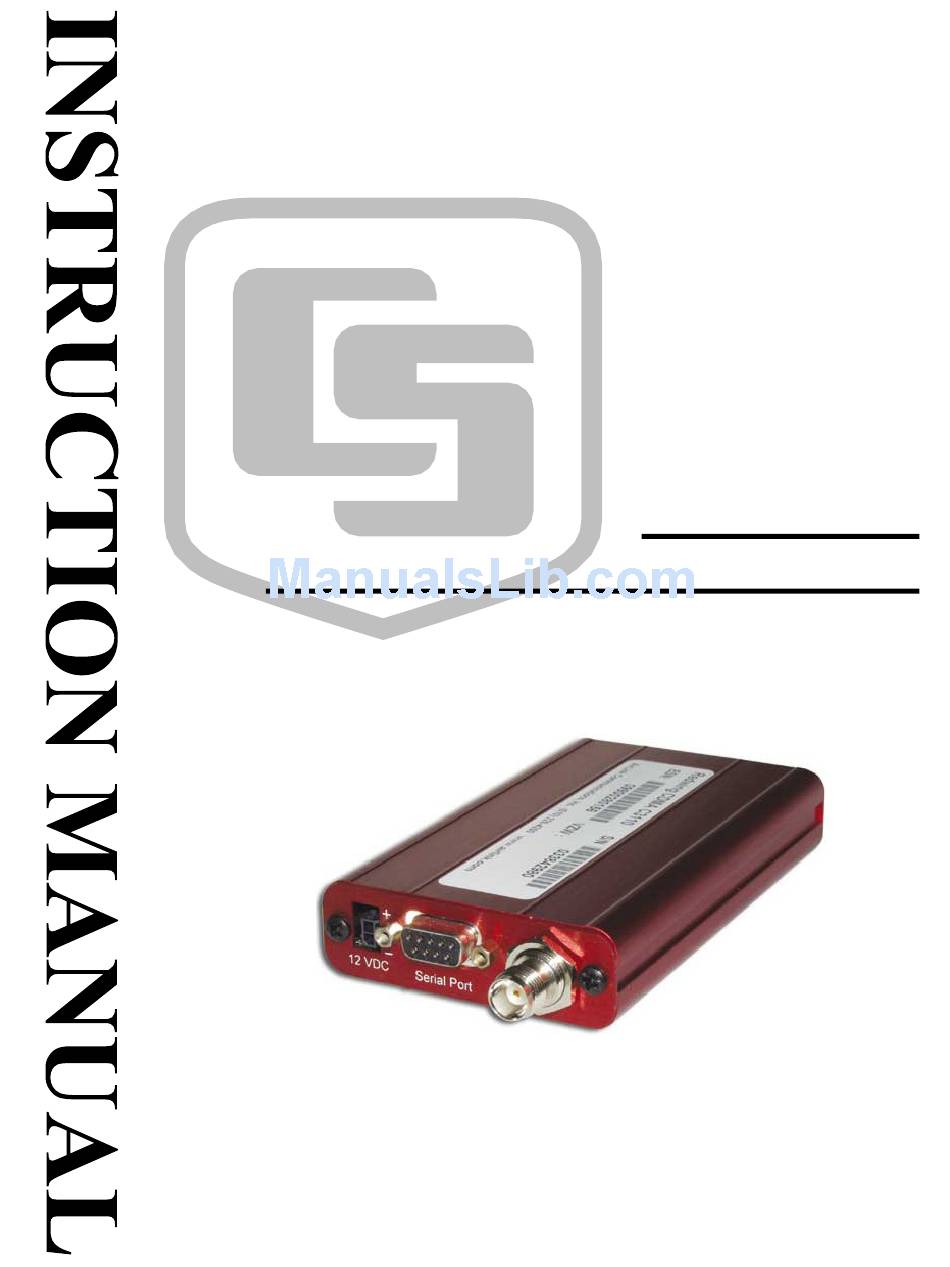

Redwing105

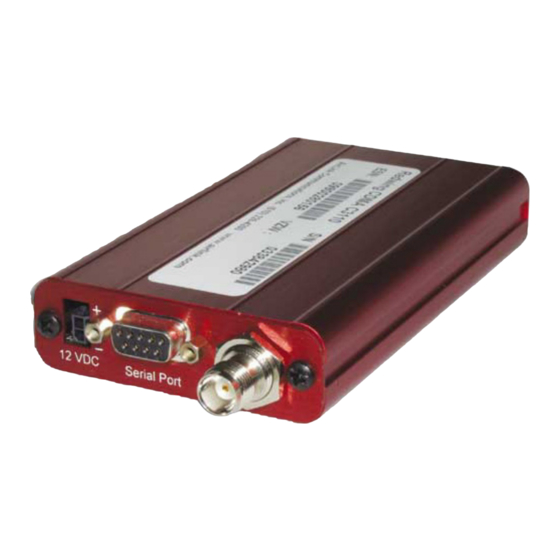

AirLink CDMA Modem C3111
Revision: 7/06
C o p y r i g h t
©
2 0 0 4 - 2 0 0 6
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C311 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell C311

Summary of Contents for Campbell C311

  • Page 1 Redwing105 AirLink CDMA Modem C3111 Revision: 7/06 C o p y r i g h t © 2 0 0 4 - 2 0 0 6 C a m p b e l l S c i e n t i f i c , I n c .
  • Page 2 Warranty and Assistance The REDWING105 AIRLINK CDMA MODEM C3111 is warranted by CAMPBELL SCIENTIFIC, INC. to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless specified otherwise. Batteries have no warranty.

  • Page 3: Table Of Contents

    Redwing105 CDMA Table of Contents PDF viewers note: These page numbers refer to the printed version of this document. Use the Adobe Acrobat® bookmarks tab for links to specific sections. 1. Introduction..............1 2. Specifications ..............1 2.1 Base Station Requirements ...............1 2.2 Datalogger Site Equipment...............1 2.3 Power Considerations ................2 3.
  • Page 4 This is a blank page.

  • Page 5: Introduction

    9-pin male to 9-pin female cable. • Antenna—the following antennas are available from Campbell Scientific; sites near the edge of the CDMA coverage may require the Yagi antenna. Contact a CSI applications engineer for help in determining the best antenna for your application.

  • Page 6: Power Considerations

    This may be the same number as the MDN. 3.2 Program the Modem Program the modem with CellWizard.exe, available from Campbell Scientific, Inc. The appendix describes how to program the modem via a terminal emulator; however, programming via a terminal emulator is NOT the preferred method.

  • Page 7: Setup Loggernet

    Redwing105 AirLink CDMA Modem 5. Enter the MDN. 6. Enter the MIN. 7. Press the “Start” button to program the phone. 3.3 Setup LoggerNet 1. Select Add Root | TapiPort. 2. Add a TapiRemote to the TapiPort. 3. Add a datalogger to the TapiRemote. 4.
  • Page 8 Redwing105 AirLink CDMA Modem This is a blank page.

  • Page 9: Configuring Modem With A Terminal Emulator

    Terminal Emulator Programming the modem with a terminal emulator is not NOTE recommended. Please first attempt programming with the CellWizard.exe program available from Campbell Scientific, Inc. Items needed: • Computer with a COM port. • 9-pin cable to connect between the computer and the Redwing.

  • Page 10: Programming The Redwing's Phone Number

    Appendix A. Configuring Modem with a Terminal Emulator Apply power to the modem and connect it to the computer via the 9-pin serial cable. A.2 Programming the Redwing’s Phone Number Your provider should give you two numbers to program into the Redwing, the MDN (Mobile Directory Number) and MIN (Mobile Identification Number).

  • Page 11: Programming The Redwing For Use With A Datalogger

    Appendix A. Configuring Modem with a Terminal Emulator A.3 Programming the Redwing for Use with a Datalogger The Redwing needs a few settings changed in it to power-up ready to work with the datalogger. Step AT Commands Response Description Sets auto answer in data mode. ATS0=1+CICB=0 Disables local flow control.
  • Page 12 Appendix A. Configuring Modem with a Terminal Emulator This is a blank page.
  • Page 13 This is a blank page.
  • Page 14 Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com info@campbellsci.com Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Somerset West 7129 SOUTH AFRICA www.csafrica.co.za sales@csafrica.co.za Campbell Scientific Australia Pty. Ltd. (CSA)

This manual is also suitable for:
