Summary of Contents for Campbell COM300

  • Page 1 COM300 Voice Communication Modem Revision: 10/02 C o p y r i g h t ( c ) 1 9 9 4 - 2 0 0 2 C a m p b e l l S c i e n t i f i c , I n c .
  • Page 2 Warranty and Assistance The COM300 VOICE COMMUNICATION MODEM is warranted by CAMPBELL SCIENTIFIC, INC. to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless specified otherwise. Batteries have no warranty. CAMPBELL SCIENTIFIC, INC.'s obligation under this warranty is limited to repairing or replacing (at CAMPBELL SCIENTIFIC, INC.'s option) defective products.
  • Page 3: Table Of Contents

    COM300 Voice Communication Modem Table of Contents PDF viewers note: These page numbers refer to the printed version of this document. Use the Adobe Acrobat® bookmarks tab for links to specific sections. 1. Introduction..............1 2. Hardware and Software Requirements .....1 2.1 COM300 Modem..................1 2.2 Voice Capable Datalogger ................2 2.3 Telephone ....................2...
  • Page 4 COM300 Voice Communication Modem Table of Contents A. CS I/O 9 Pin Serial Port .......... A-1 A.1 Pin Description..................A-1 B. Theory of Operation ..........B-1 B.1 Theory of Operation ................B-1 C. Changing RAM or PROM Chips in the CR10 ..C-1 C.1 Disassembling the CR10..............
  • Page 5: Introduction

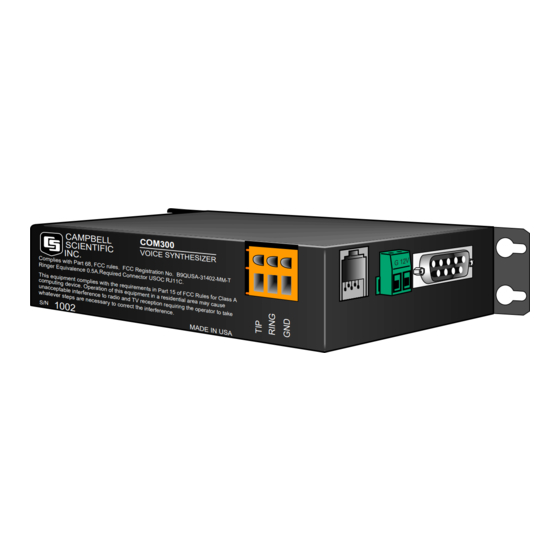

    COM300 Voice Communication Modem 1. Introduction The COM300 voice-synthesizer modem allows Campbell Scientific's voice capable dataloggers to transmit, by voice announcement, data stored in input locations and the current status of datalogger control ports and user flags. With voice communication enabled, a user can call a datalogger site and listen to announcements, or the datalogger can be programmed to initiate voice calls when alarm conditions are met.
  • Page 6: Voice Capable Datalogger

    COM300 Voice Communication Modem 2.1.1 Specifications • Bell 212A, CCITT V.22, and V.32BIS compatible • Full duplex at 9600 and 1200 baud to datalogger • V.42 LAPM and MNP2-4 error correction • Hayes AT command set • RJ-11C telephone jack •...
  • Page 7: Hardware Installation

    COM300 Voice Communication Modem 3. Hardware Installation 3.1 Site Installation Connection to telephone company-provided COIN service NOTE (Central Office ImplemeNted systems) is prohibited. Connection to party line service is subject to state tariffs. The COM300 is designed to be used on standard device telephone lines. The COM300 connects to the telephone line by means of a USOC RJ11C jack (standard modular telephone jack).
  • Page 8: Properly Grounding The Com300 System

    COM300 Voice Communication Modem G 12V Logan, Utah G 12V SW 12V CTRL CS I/O POWER 11 12 SW 12V DIFF G G H AG H L AG H L AG E3 AG G G 5V 5V G CR10X WIRING PANEL MADE IN USA DIFF G G H...
  • Page 9: Telephone Service

    COM300 Voice Communication Modem DIFF AG H L AG H L AG H L AG E3 AG G G G G G 12V SERIAL I/O 12V 12V POWER 9 10 SWITCHED CAMPBELL CR10 SCIENTIFIC INC. MADE IN USA SWITCHED WIRING PANEL NO. EARTH CONTROL DIFF...
  • Page 10: Repairs

    COM300 Voice Communication Modem are listed on its label. Additional technical information from the FCC and IC on the COM300 is available in Appendix D and E, respectively. If any of your telephone equipment is not operating properly, you should remove it immediately from your telephone line, as it may cause harm to the telephone network.
  • Page 11: Using The Com300 For Standard Modem Communications In Pc208W

    COM300 Voice Communication Modem Appendix F of this manual provides a guide to interpreting the code that is added to the end of the datalogger program file for voice communication. 5. Using the COM300 for Standard Modem Communications in PC208W The COM300 can be used for standard data transmission in PC208W.
  • Page 12: Using The Com300 To Hear Output Location Data

    COM300 Voice Communication Modem terms can be renamed to something more descriptive using LoggerTalk. A dialog box to make these changes is invoked by selecting the Menu Strings button from the main LoggerTalk window. Refer to the LoggerTalk on-line help system for more information. 6.4 Using the COM300 to Hear Final Storage Data Output data is normally stored in the datalogger's ring memory (Final Storage).
  • Page 13: For Problems Encountered When Making Data Calls

    COM300 Voice Communication Modem 8.2 For Problems Encountered When Making Data Calls 1) Verify you have selected the correct calling modem from PC208W's setup screen. 2) Verify the COM port you are using is activated. As a power saving feature, some notebook computers do not automatically activate the COM ports.
  • Page 14 COM300 Voice Communication Modem This is a blank page.
  • Page 15: Cs I/O 9 Pin Serial Port

    Appendix A. CS I/O 9 Pin Serial Port The modem’s CS I/O port is not a standard RS232 connection. NOTE A.1 Pin Description The COM300 modem connects to the datalogger using an SC12 cable connected to the devices’ 9-pin subminiature D-type socket connector. This connector is shown in Figure A-1.
  • Page 16: Pin Description

    Appendix A. CS I/O 9 Pin Serial Port TABLE A-1. Pin Description ABR = Abbreviation for the function name. = Pin number. = Signal Out of the datalogger to a peripheral. = Signal Into the datalogger from a peripheral. Description 5 VDC supply.
  • Page 17: Theory Of Operation

    Appendix B. Theory of Operation B.1 Theory of Operation The COM300 modem is used to transmit data over bandwidth-limited channels such as telephone lines by modulating audio tones, using Phase Shift Keying (PSK) at 9600 or 1200 baud and Frequency Shift Keying (FSK) at 300 baud. The telephone company gives a 40 to 150 VRMS, 20 Hz signal on the telephone lines to signify a ring, which is typically on for 2 seconds and off for 4 seconds.
  • Page 18 This is a blank page.
  • Page 19: Changing Ram Or Prom Chips In The Cr10

    Appendix C. Changing RAM or PROM Chips in the CR10 The CR10 has two sockets for Random Access Memory (RAM) and one socket for Programmable Read Only Memory (PROM). The standard CR10 has 64K of RAM, (a 32K RAM chip in each socket). Earlier CR10s had 16K of RAM (an 8K RAM chip in each socket).
  • Page 20: Installing New Prom

    Appendix C. Changing RAM or PROM Chips in the CR10 C.3 Installing New PROM The PROM chip is found at location C8 on the CR10 CPU board, (see Figure C-2). With a small flat screw driver, gently pry out the PROM chip and replace it with the new one.
  • Page 21: Jumper Settings For Different Ram Configurations

    Appendix C. Changing RAM or PROM Chips in the CR10 FIGURE C-2. Jumper Settings for Different RAM Configurations...
  • Page 22 Appendix C. Changing RAM or PROM Chips in the CR10 This is a blank page.
  • Page 23: Fcc Warning To Users Of Class A Computing Devices

    Appendix D. FCC Warning to Users of Class A Computing Devices WARNING This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of...
  • Page 24 This is a blank page.
  • Page 25: Ic Information

    Appendix E. IC Information NOTE Industry Canada (IC) was formally known as DOC. CP-01, Issue 8, Part I Section 14.1 “NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s).
  • Page 26 This is a blank page.
  • Page 27: Reading Voice Code Information From A *.Dld File

    Appendix F. Reading Voice Code Information from a *.DLD File When a file is edited and saved in LoggerTalk, the information for voice communication is added to the end of the *.DLD file. This information can be verified for accuracy. A copy of typical voice code is provided below.
  • Page 28: Callback Code

    Appendix F. Reading Voice Code Information from a “.DLD File The above code translates to: Input Locations Ports Flags (four decimal places) Campbell Scientific Datalogger Program (pause) (pause) (pause) "Datalogger Internal Temperature" is (input location 3) Degrees Fahrenheit. (four decimal places) Datalogger Battery Voltage is (input location 1) Volts. F.2 Callback Code If the datalogger has been programmed to initiate voice calls, you will see the phone number associated with the call command at the very end of the listing.
  • Page 29: Security Enabled

    Appendix F. Reading Voice Code Information from a *.DLD File F.3 Security Enabled This last example uses the security code "1234" to allow access to the second level menu. Notice the characters following the "?" at the beginning of the character stream.
  • Page 30 Appendix F. Reading Voice Code Information from a “.DLD File This is a blank page.
  • Page 31: Using P80 To Redirect Final Storage Data To Input Locations

    Appendix G. Using P80 to Redirect Final Storage Data to Input Locations The following section of code provides an example of using datalogger Instruction 80 to redirect Final Storage data to input locations. This is not a complete program. Instructions would be included prior to this section of code to measure sensors, perform control functions, and provide initial data processing.
  • Page 32 This is a blank page.
  • Page 33: Com300 Word List

    Appendix H. COM300 Word List H.1 COM300 Word List - Numerical Order ZERO 49. STATUS 97. BAROMETRIC 50. HIGH 98. BARS 51. LOW 99. BATTERY THREE 52. TOGGLE 100. CALIBRATE FOUR 53. FLAGS 101. CELSIUS FIVE 54. PORTS 102. CENTI 55.
  • Page 34 Appendix H. COM300 Word List 142. MAXIMUM 197. WEATHER 252. EAST 143. MERCURY 198. WELL 253. EASTERN 144. METER 199. WIND 254. EFFLUENT 145. METERS 200. A 255. ELECTRON 146. MICRO 201. A-M 256. ELEVATION 202. ABOVE 257. EMPTIED 147. MILES 148.
  • Page 35 Appendix H. COM300 Word List 304. L 359. R 414. UNITS 305. LAKE 360. RACE 415. UP 306. LAYER 361. RADIAL 416. V 307. LINE 362. RANGE 417. V-O-C 308. LOAD 363. REACHED 418. VALUE 364. READING 419. VERTICAL 309. LOCATED 310.
  • Page 36: Com300 Word List - Alphabetical Order

    Appendix H. COM300 Word List H.2 COM300 Word List - Alphabetical Order 71. 50MS 233. CHECK 117. EQUAL 199. A 102. CHILL 258. ERROR 200. A-M 234. CHILLER 119. EVENT 201. ABOVE 235. CHLORIDE 121. EXCEEDS 202. ACCUMULATE 236. CHLORINE 120.
  • Page 37 Appendix H. COM300 Word List 285. HEAD 144. METERS 160. PARTS 34. HEAR 145. MICRO 342. PAST 286. HEAT 315. MID 343. PEAK 129. HELLO 316. MID-MOUNTAIN 344. PENDING 287. HERTZ 317. MIDNIGHT 161. PER 146. MILES 162. PERCENT 49. HIGH 288.
  • Page 38 Appendix H. COM300 Word List 371. RUN 397. TAIL 428. X 372. RUNOFF 86. TEMPERATURE 429. Y 373. S 10. TEN 430. YEAR 374. S-O-2 398. TESTING 431. YESTERDAY 174. SAMPLE 399. THANK 39. YOU 400. THAT 63. YOUR 375. SATURDAY 89.
  • Page 39 This is a blank page.
  • Page 40 Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com info@campbellsci.com Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Somerset West 7129 SOUTH AFRICA www.csafrica.co.za sales@csafrica.co.za Campbell Scientific Australia Pty. Ltd. (CSA) PO Box 444 Thuringowa Central QLD 4812 AUSTRALIA...
