Campbell COM9602 Instruction Manual

Short burst data modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
COM9602 Short Burst
Data Modem
September 2016
Copyright © 201 6
Campbell Scientific (Canada) Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COM9602 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell COM9602

Summary of Contents for Campbell COM9602

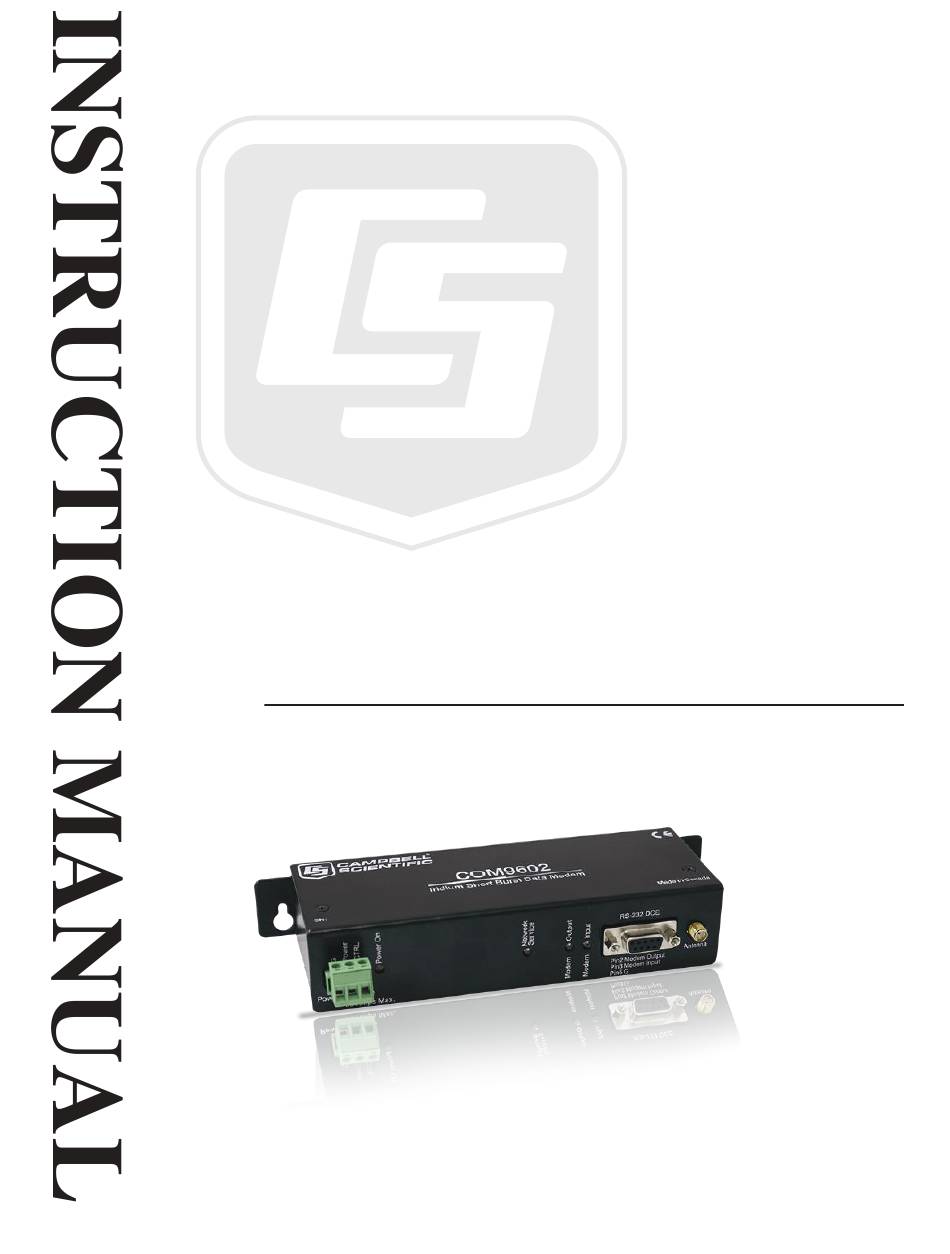

  • Page 1 COM9602 Short Burst Data Modem September 2016 Copyright © 201 6 Campbell Scientific (Canada) Corp.
  • Page 3 WARRANTY AND ASSISTANCE This equipment is warranted by CAMPBELL SCIENTIFIC (CANADA) CORP. ("CSC") to be free from defects in materials and workmanship under normal use and service for ***** twenty-four (24) months from date of shipment unless specified otherwise. ***** Batteries are not warranted.
  • Page 4 Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CLIENT ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.

  • Page 5: Table Of Contents

    Figure 6-3 Device Configuration Utility ..............8 Figure 6-4 File Control Tab ..................... 8 Figure 6-5 Run Options ....................9 Figure 6-6 Data Monitor Tab..................9 Table 4-1 COM9602 Modem & Interface Kit Equipment List ......4 Tables Table 6-1 Campbell Scientific Datalogger Connections ........10...

  • Page 6: Introduction

    If damage to the cable is suspected, • consult a Campbell Scientific Measurement Consultant. Although the COM9602 is rugged, it should be handled as a precision scientific instrument. • The black outer jacket of the cable is Santoprene® rubber. This compound was chosen for its resistance to temperature extremes, •...

  • Page 7: Initial Inspection

    COM9602 Short Burst Data Modem Initial Inspection The COM9602 Short Burst Data Modem & Interface Kit ships with the L18663 null modem cable, L17855 interface cable, C2626 right angle • coax adapter connector, SAF5350A antenna, L30626 antenna mount and C2945 power & control cable.

  • Page 8: Data Services

    For Short Burst Data (COM9602), the available services include a detailed analysis of the client’s expected data values and volume (collection frequency).

  • Page 9: Table 4-1 Com9602 Modem & Interface Kit Equipment List

    All datalogger connections require appropriate cabling and interface accessories (see Table 6-1). The antenna used for the COM9602 is fixed mast antenna, pn SAF5350A. For best signal reception, the antenna should be mounted so that it has an unobstructed view of the sky and the horizon. Reception quality changes as satellites move overhead;...

  • Page 10: Specifications

    Note The antenna used for the COM9602 is the SAF5350A mast mount antenna. For best signal reception, the antenna should be mounted so that it has an unobstructed view of the sky and horizon. Reception quality changes as satellites move overhead, so it is critical that the view be clear.

  • Page 11: Figure 6-1 Antenna, Mount, And Cable

    COM9602 Short Burst Data Modem The installation of the antenna and cable should begin by feeding the antenna cable through the nut, then spacer, and finally antenna mount (Figure 6-1). Next, loosen the 4 Phillips screws at the base of the antenna and separate the two pieces.

  • Page 12: Modem

    CS I/O port refer to the manual for the appropriate interface device or cable. 4. Connect the bare leads of the COM9602 power and control terminal to the to datalogger and power supply. Start your connections with the power control leads.

  • Page 13: Figure 6-3 Device Configuration Utility

    COM9602 Short Burst Data Modem Figure 6-3 Device Configuration Utility Select the File Control tab once connected to the datalogger. Click the Send button, select and then open both the datalogger program and the appropriate Include file (i.e. COM9602_Sub_str_Enc.CR1) in the CPU drive.

  • Page 14: Figure 6-5 Run Options

    COM9602 Short Burst Data Modem Figure 6-5 Run Options The datalogger will complile the programming to confirm its operation. Once the compile is complete, click OK in the dialogue box. You may receive a compile warning related to USR memory size.

  • Page 15: Datalogger Wiring

    Note The recommended connection of the remote modem to dataloggers, when possible is via an available COM port. It is possible for a COM9602 to communicate with a datalogger via either the RS-232 or CSI/O port; however, you will lose the ability to communicate directly on these ports.

  • Page 16: Programming

    • Please reference literature related to integrated equipment for programming details. • When building and testing an application program, be sure not to transmit data via the COM9602 until finalized, as this will be • counted against your account.
  • Page 17 'This is Table "2" DataTable (TableTwo,1,-1) DataInterval (0,1440,Min,0) TableFile ("USR:TableTwo",1,0,1,0,0,NewTableFile(2),TableFileName(2)) Minimum (1,BattV,FP2,0,False) Sample (1,PTemp,FP2) EndTable Include "CPU:Com9602 CR1000_Sub_str_Enc.CR1" BeginProg 'A USR Drive is required for the COM9602 subroutine to store some temporary files. SetStatus ("USRDriveSize",32768) 'Setup communication port for the COM9602...
  • Page 18 COM9602 Short Burst Data Modem SerialOpen (SBDComPort,19200,3,0,400) DataDefinitionFlag(1) = True DataDefinitionFlag(2) = True 'Perform modem initialization InitializeModem = True 'Configure the power control port for the COM9602 as an output 'Set C3 as output PortsConfig (&B100,&B100) Scan (5,Sec,0,0) PanelTemp (PTemp,250) Battery (BattV)

  • Page 19: Troubleshooting

    Also, be sure that the datalogger configuration and programming are correct, as per the manual. Solution 2: Confirm that the baud rate of the COM9602 is set to 19200 by prompting a response using DevConfig terminal emulator. Configure the emulator to 19200 baud.
  • Page 20 The Signal Quality AT command can be used to confirm signal strength during the installation/repositioning of the antenna. This requires the use of a laptop connected to the COM9602 and a terminal emulator. Once the terminal emulator is connected, the following command can be entered to...

  • Page 21: Appendix A. Csc Eu Declaration Of Conformity

    This declaration of conformity is issued under the sole responsibility of the manufacturer. Object of declaration: The object of the declaration described above is in conformity with Directives: COM9602 – Iridium 9602 Short Burst Data Modem RoHS Directive 2011/65/EU EMC Directive 2004/108/EC...
  • Page 22 Campbell Scienti c (Canada) Corp. | 14532 131 Avenue NW | Edmonton AB T5L 4X4 | 780.454.2505 | www.campbellsci.ca AUSTRALIA | BRAZIL | CANADA | COSTA RICA | FRANCE | GERMANY | SOUTH AFRICA | SPAIN | UNITED KINGDOM | USA...
