Product description
• Emergency lighting LED Driver with self-test function
• For self-contained emergency lighting
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal life-time up to 100,000 h
• 5-year guarantee
Properties
• Non maintained operation
• Self-test as per IEC 62034
• 1, 2 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with most constant current LED Drivers (see 5.4)
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Two-colour status display LED
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by by 3-pole
connector
• Automatic detection of the connected battery technology
(NiMH or LiFePO
batteries)
4
Self-test:
• Status of the battery
• Status of the LED
• Function test
• Duration test
Batteries
• High-temperature cells
• NiMH or LiFePO4 batteries
• LA or 18650 cells
• 4-year design life for NiMH batteries
• 1-year guarantee for NiMH batteries
• 4 – 8 years design life for LiFePO
• 3-year guarantee for LiFePO
batteries
4
• For battery compatibility refer to chapter „Battery selection"
È
Standards, page 5
Wiring diagrams and installation examples, page 6
Data sheet 10/20-EM090-8
Subject to change without notice. Information provided without guarantee.
batteries
4
Emergency lighting units
EM converterLED
EM converterLED ST MH/LiFePO4 50 V
SELFTEST series
www.tridonic.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SELFTEST Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tridonic SELFTEST Series

Summary of Contents for Tridonic SELFTEST Series

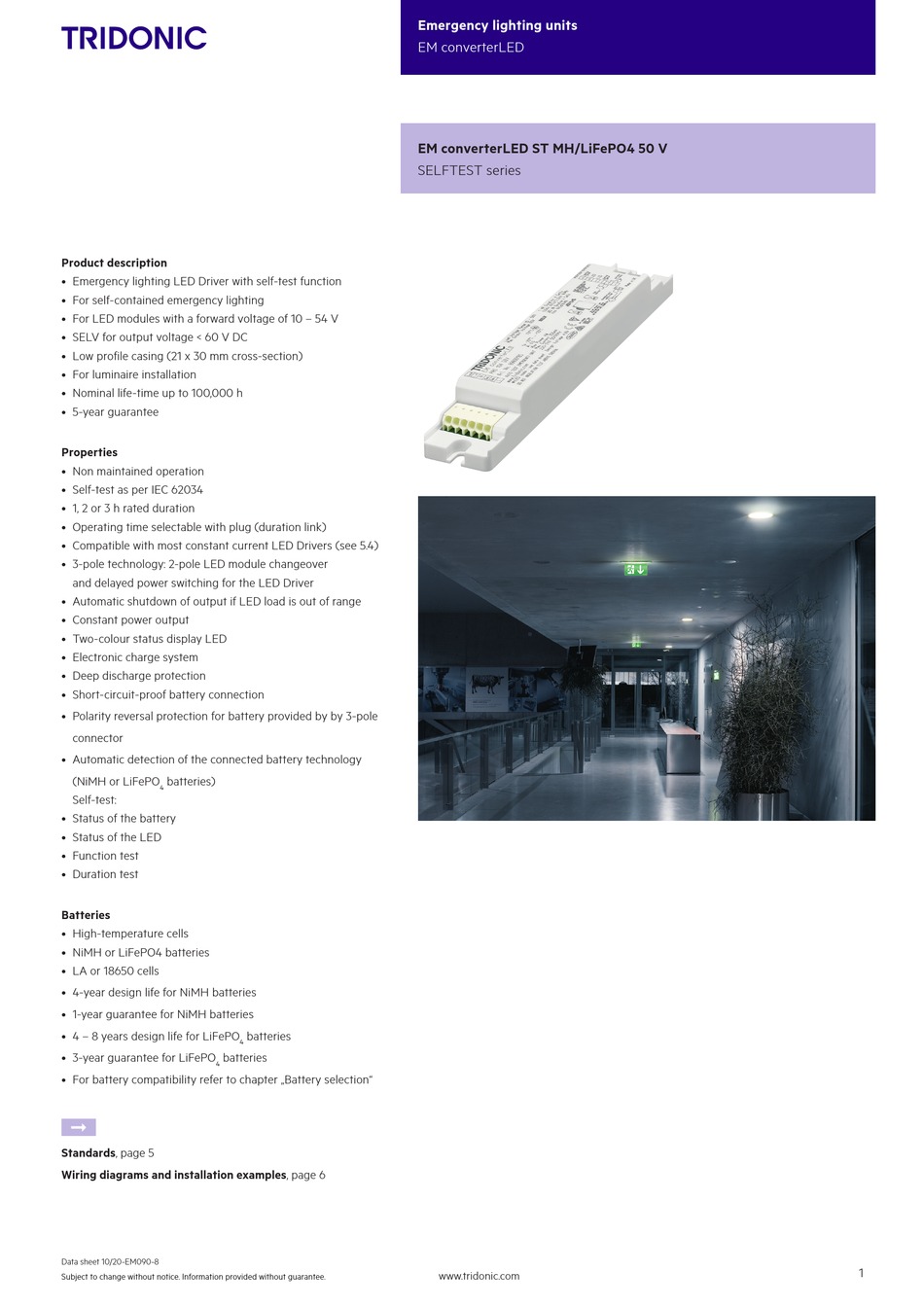

  • Page 1 Emergency lighting units EM converterLED EM converterLED ST MH/LiFePO4 50 V SELFTEST series Product description • Emergency lighting LED Driver with self-test function • For self-contained emergency lighting • For LED modules with a forward voltage of 10 – 54 V •...
