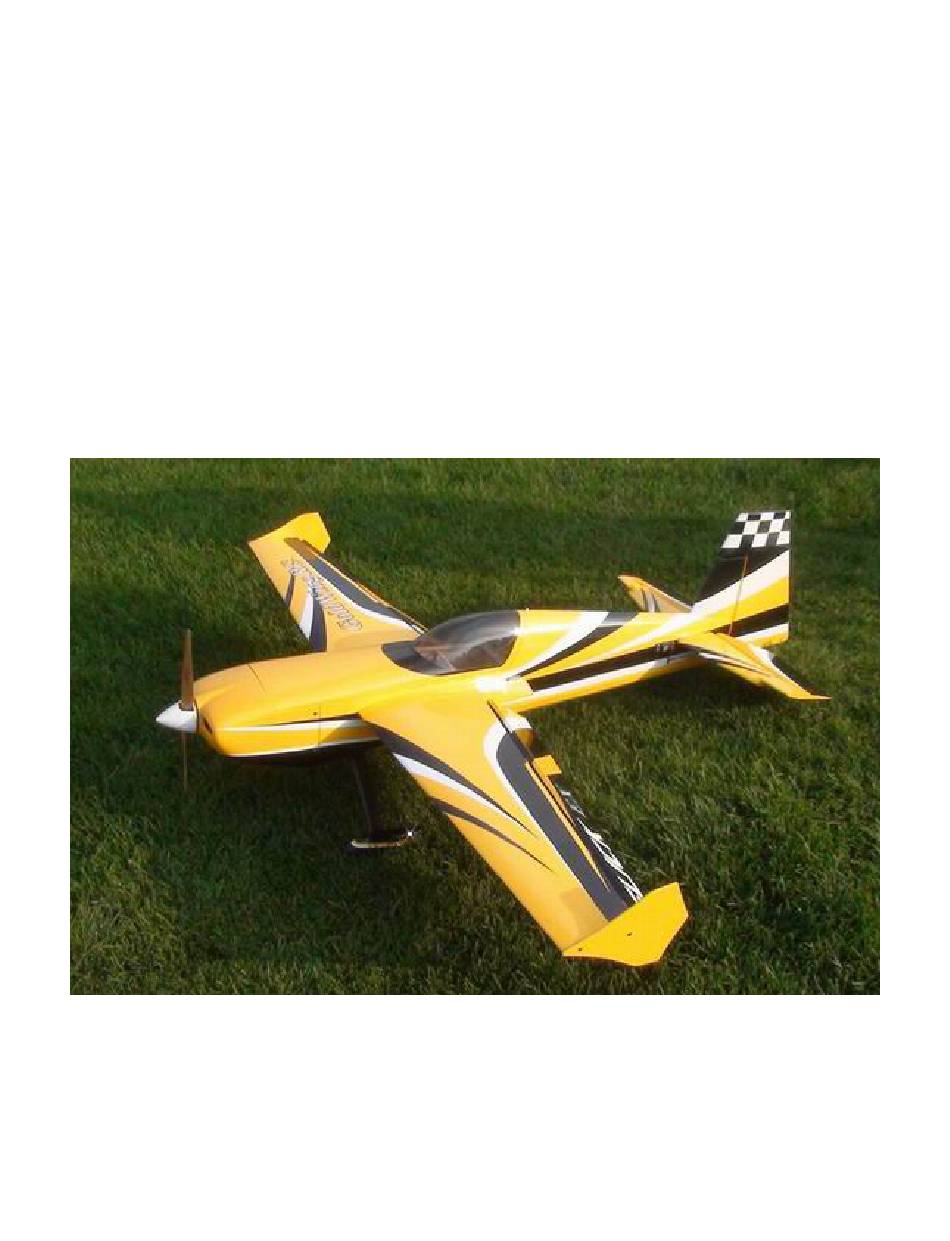

  • Page 1 GOLDWING RC 61in SLICK540 70E Electric Extreme Series All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 2 Thank you for purchasing the new GoldWing RC Electric Extreme series aircraft. This manual covers the 61-in SLICK540 70E aircraft. It is a premium product line of electric RC airplanes designed for unlimited 3D performance. The new 61-in SLICK540 70E adopts cutting edge aerodynamic features, such as streamlined canopy, aileron counterbalance, removable side force generators (SFGs),.The 61-in SLICK540 70E is also loaded with high-quality...
  • Page 3 GOLDWING RC WARRANTY AND RETURN POLICY GoldWing RC guarantees this product to be free from defects in both material and workmanship at the date of purchase. This does not cover any parts damaged by use, misuse or modification.
  • Page 4 The air exit for the electric set up still needs to be inside the fuselage behind the rudder tray. High quality ball link assemblys Extension Lead Safety Clips High Density light Rubber Wheels All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 5 Improved new stainless steel Axles Side Force Generators KUZA Alloy Backplate Hollowed-out Electric Spinner included All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 6 Quick release canopy latch Canopy extended into cowl Carbon Fiber accessories version： Extra strength Carbon Fiber control Horns All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 7 One piece air foiled carbon fiber landing gear New Light Electric C.F.Tail wheel assembly Strengthened fuselage by carbon fiber board and rods All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 8 Larger carbon fiber wing tube diameter. Scheme A Yellow /white/ /black All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 9 Scheme C White /blue /yellow All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 10 Scheme D White/red /blue All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 11 Recommend KUZA Twisted 28 AWG Lightweight Servo Extensions (Not included) Two 6”(155mm) No. KAG002511 Two 24”(610mm) No. KAG002514  Appropriate Lipo batteries (6S 2700-4000mah)  Receiver of your choice (minimum 4 channels)  RC radio of your choice All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 12 We have found this to be helpful with models intended for higher speed flight or models with unusually large hinge gaps. Aircrafts that utilize a very tight double beveled hinge line and All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 13 Please verify the accessories before assemble:  Carbon Fiber control Horns (Bag No. KA07NA2A): 2 horns for ailerons, 1 for elevator, and 1 for rudder.  2.25"(57mm) CNC Alloy Backplate Hollowed-out Spinner (Bag No. KAG0202) All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 14  New Light Electric C.F.Tail wheel assembly (Bag No. KAG0101)  Pushrods kits: Four 2x65mm pushrods for ailerons & elevator & rudder. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 15 Ball link assembly (Bag No. KAG0011): 8 PCS  Servo lead safety clips (Bag No. KAG0019)：4 pcs  2.25” main wheels（Bag No. KAG0146）：2pcs  New stainless steel Axle kits (Bag No. KA07NH) All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 16  Extra covering provided for small repairs  3 Hex keys (Bag No. KA07NE)  Side force generators (mounted with four M3X18 hand bolts and 2 wood sheets) All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 17  4 (3x16mm) hex-head bolts & Washers for landing gear mounting  Screews & Washers for cowl: 4(2.5x12mm) Hexagon socket screws & 4 PTFE Washers  Motor mounting hardware set All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...

  • Page 18: Rudder Assembly

    Insert control horn into base plate then into the slot, trace the edge of base plate with hobby knife then remove the underlying covering. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 19 Wipe off excessive epoxy with alcohol wipes. Set aside until cured. 1.5 Use epoxy glue to connect nylon hinges for rudder. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 20 Double check all screws, bolts and nuts to assure proper installation and operation without binding. Once satisfied, permanently attach the ball links to the servo arms and horns with the supplied screw and nut. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...

  • Page 21: Landing Gear Installation

    We recommend using KUZA 1.25” aluminium CNC servo arm (sold separately) for rudder control. Landing Gear Installation 2.1 Locate the landing gear set All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 22 Use a small drop of thread-lock and tighten in place. Slide the wheel onto the axle and install a second wheel collar also using thread-lock on the set screw. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 23 Repeat the above steps for the other main gear. 2.5 Tail wheel assembly for electric airplanes. 2.6 Tail wheel kit is almost pre-assembled in factory, for safety, please remove all screws and then re-assemble with thread locker. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 24 For best results, the pivot point of the assembly should be over the hinge line of the rudder. 2.8 Drill a 4mm hole on the bottom of rudder, 85-95mm away for the hinge line. Fill the hole and ball link with 30 minute epoxy. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...

  • Page 25: Wing Assembly

    Insert control horn into base plate then into the slot, trace the edge of base plate with hobby knife then remove the underlying covering. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 26 Fill the slot and coat the root of control horn and the bottom of base plate with 30 minute epoxy, insert the horn into the slot, press it down firmly. Wipe off excessive epoxy with alcohol wipes. Set aside until cured. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 27 Check the final radio operation of the ailerons and make sure there is no binding or servo fighting of each other. Also check to make sure all linkage bolts and nuts are secure. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 28 Removing covering on the central part of horizontal stabilizer is recommended for better glue bonding. Insert the horizontal stabilizer into fuselage, make sure it’s centered. Apply thin and gap-filling medium CA to glue it in place. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 29 Glue the nylon hinges for the elevator with epoxy glue. After installing the elevator, use supplied balsa pieces to fill gap behind the elevator as shown below All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 30 Double check all screws, bolts and nuts to assure proper installation and operation without binding. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...

  • Page 31: Motor Mounting

    5.2 Blind nuts are pre-installed behind the firewall. 5.3 Since the position of cowl is fixed and length of motors varies, you may need to use provided washers and wood crosses to position you motor properly. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...

  • Page 32: Cowl Installation

    6.1 Test fit the cowl first, make sure it fits well with canopy and fuselage. 6.2 There are pre-drilled screw holes on the cowl and the fuselage. 6.3 Secure the cowl with 2.5X12mm self-threading screws. You may install spinners and properlers afterward. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 33 Servo clips are provided in the kit for your convenience. These servo clips can even be glued to the wood structure using CA if desired. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 34 The wing tube may be initially tight but will loosen some with use. Guide your servo wires into the fuselage openings and connect to the proper aileron channels. Servo clips All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 35 9.3 Cut the wing film needed to be install the SFG. Fixed the SFG Use M3X18 hand bolts and wood sheets. Installation of the SFG is optional. All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 36 Recommend Accessories（Not included） *KUZA Twisted 28 AWG Lightweight Servo Extensions Two 6”(155mm) No. KAG002511 Two 24”(610mm) No. KAG002514 *KUZA Heavy duty aluminum Servo Arm (Not included) FUTABA servo arms HITEC servo arms All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 37 JR servo arms 26mm/1in for aileron No. KAG0S70F/KAG0S70H/KAG0S70J 32mm/1.25in for elevator & rudder No. KAG0S71F/KAG0S71H/KAG0S71J * KUZA new Wingbag for 70E Two color to choose: orange/ silver, blue / silver No. KAG0091 All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
  • Page 38 All contents copyright 2015, GOLDWING RC Version 1.0, Dec 2015...
