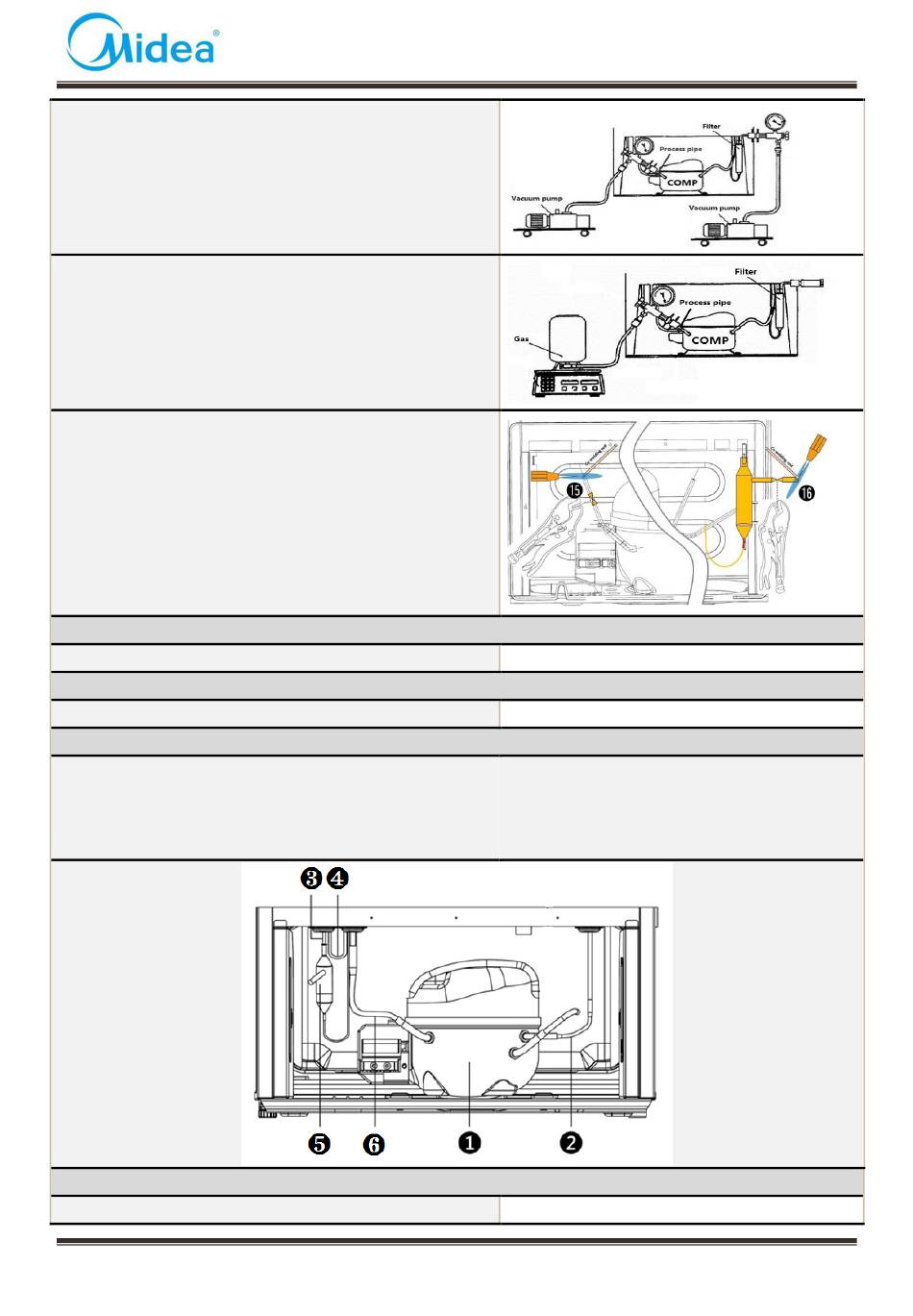

13）Vacuum system,The degree of vacuum below 6Pa.
14）Perfusion refrigerant.
15）Use the vise grip pliers clamp the middle of the
process pipe, then seal welding process tube⓯⓰.
Condenser fan motor
Condenser fan motor
Standby condenser
Standby condenser
Piping system in the compressor case
❶ Compressor
❷ Right condenser
❸Left condenser
❹Anti-dew tupe assembly
Disassembly and assembly of the drain tray
Disassembly and assembly of the drain tray
Service Manual_2018-V1.0
None
None
❺Dry filter
❻ Suction transition tube
