Service Manual_2018-V1.0
7. Refrigerating piping system and circulating route of cooling air

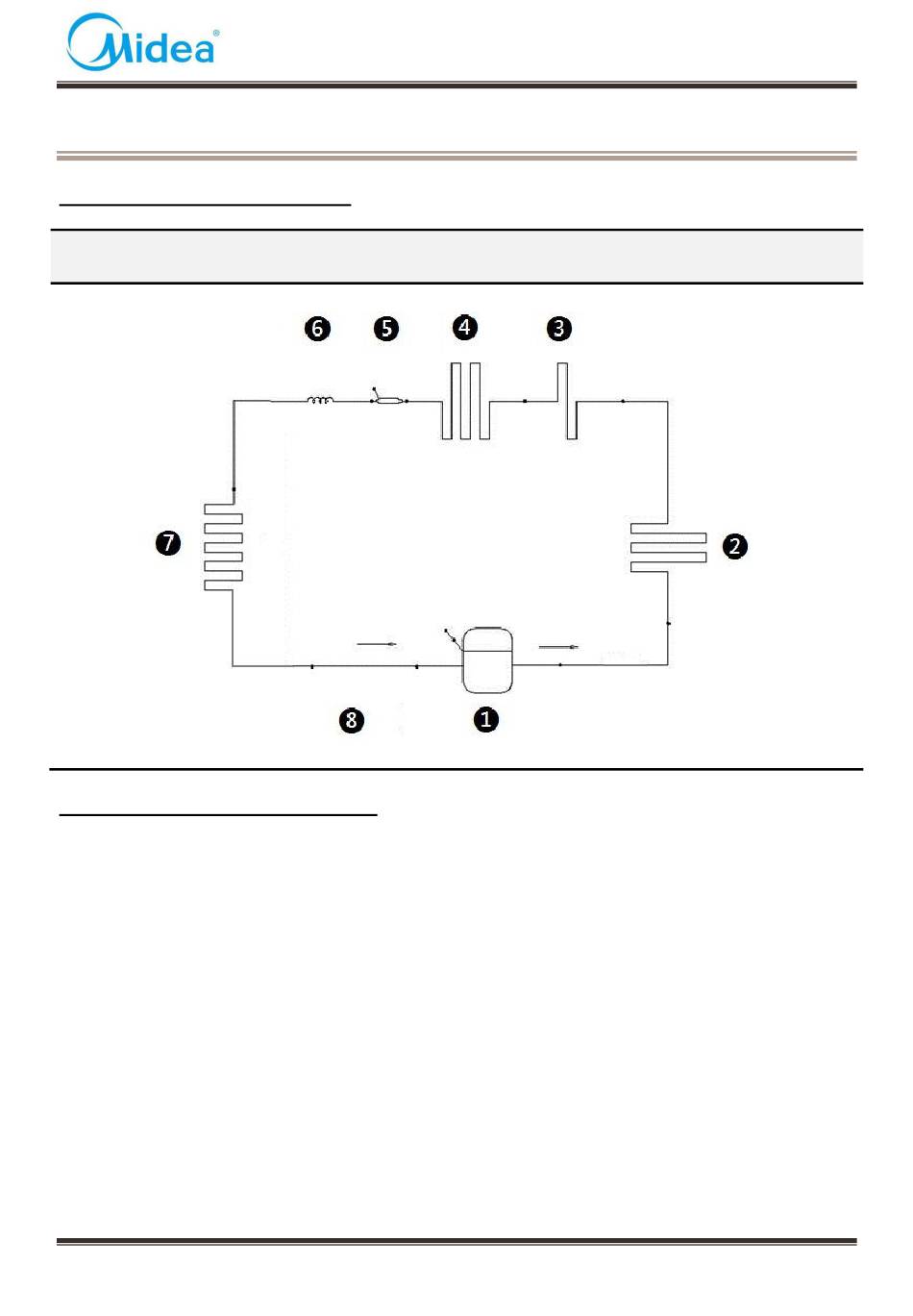

7.1 Refrigerating piping system
❶Compressor→❷Right condenser→❸Anti-condensation tube→❹Left Condenser→❺Dry
filter→❻Capillary tube→❼Evaporator→❽Suction tube→❶Compressor
7.2 Circulating route of cooling air(None)
