Service Manual
(The picture in this service manual is only for reference, and specific appearance and configuration are
subject to the real product)

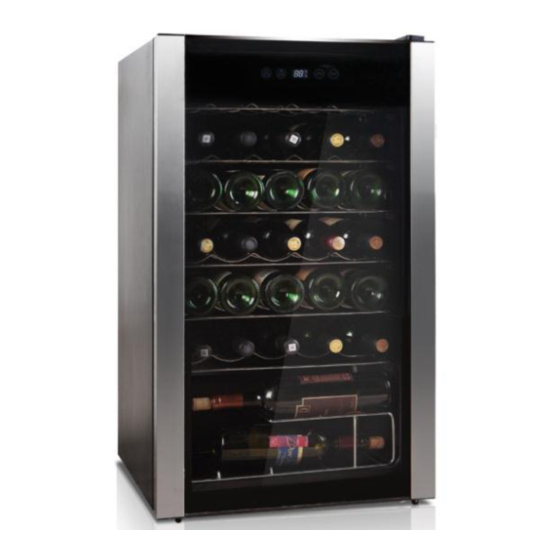

COMPACT SERIES
Applicable Models
UR-JC96G-FR
UR-JC96GE-FR
CE-JC96GE-AR
CE-JC96GE-AR
Prepared by
Reviewed by
Approved by
1
Service Manual_2018-V1.0
Model Code
22033010000221
22033010000121
22033010000011
22033010000781
R&D:Ding Sheng
QA:Ke Bingfei
SVC:Zhang Kun
R&D:Zhang Huawei
SVC:Guang Taoshuai
Advertisement
Table of Contents
Related Manuals for Midea COMPACT Series
Summary of Contents for Midea COMPACT Series
- Page 1 Service Manual_2018-V1.0 Service Manual COMPACT SERIES Applicable Models Model Code UR-JC96G-FR 22033010000221 UR-JC96GE-FR 22033010000121 CE-JC96GE-AR 22033010000011 CE-JC96GE-AR 22033010000781 R&D:Ding Sheng Prepared by QA:Ke Bingfei Reviewed by SVC:Zhang Kun R&D:Zhang Huawei Approved by SVC:Guang Taoshuai (The picture in this service manual is only for reference, and specific appearance and configuration are...
- Page 2 Manufacturers or distributors are not responsible for the content of the Manual and interpretation thereof. Midea Refrigerators Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales Corporation of Midea Refrigerators.
-
Page 3: Table Of Contents
Service Manual_2018-V1.0 Contents 1. SAFETY WARNING CODE ........................... 5 ........................... 5 1.1 W ARNING FOR OPERATION SAFETY 1.2 S ......................... 7 AFETY INSTRUCTION FOR REFRIGERANT 2. DESCRIPTION FOR PRODUCT FEATURES ..................... 8 3. INSTALLATION AND COMMISSIONING ......................9 3.1 H ................................... - Page 4 Service Manual_2018-V1.0 ..............................20 8.7 C OMPRESSOR CASE 8.8 D ............................24 ISPLAY CONTROL BOARD ............................25 8.9 M AIN CONTROL BOARD 8.10 B ................................ 26 AR COUNTER ..............................26 8.11 W ATER DISPENSER 8.12I ................................26 CE MAKER 9. FUNCTION AND OPERATION ..........................27 ..............................
-
Page 5: Safety Warning Code
Service Manual_2018-V1.0 1. Safety Warning Code 1.1 Warning for operation safety Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer. - Page 6 Service Manual_2018-V1.0 CONNECTING ELECTRICITY Electrical Shock Hazard. Failure to follow these instructions can Plug into a grounded 3-prong outlet. result in death, fire, or electrical shock. Do not remove the ground prong. Do not use an adapter. WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death.
-
Page 7: Safety Instruction For Refrigerant
Service Manual_2018-V1.0 13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this freezer. 14) Do not use extension cords or ungrounded (two-prong) adapters with this freezer. If the power cord is too short, have a qualified electrician install an outlet near the freezer. Use of an extension cord can negatively affect the freezer’s performance. -
Page 8: Description For Product Features
Service Manual_2018-V1.0 2. Description for product features This product is provided with following features: Electronic temperature control, more accurate 1） 2）Advantageous touch control for users 3）Slide-out chrome shelf (Wooden shelf optional) -
Page 9: Installation And Commissioning
Service Manual_2018-V1.0 3. Installation and commissioning 3.1 Handling Handling 1)Protect the refrigerator in moving it,Same as shown as left photo, please move it by handcart with cushion 2)Remove all packing materials and bottom cushion, the n move into house for placement 3)After moving it to appropriate location, wait for 2 hours before power on. -
Page 10: Door Reversal(None)
Service Manual_2018-V1.0 If the refrigerator cannot be placed steadily, adjust the footing to level it. 3.5 Door reversal(None) Door reversal 1) Door reversal None 3.6 Installation of handle Installation of handle Installation of handle None 3.7 Installation of door lock Installation of door lock Installation of door lock None... -
Page 11: Terms
Service Manual_2018-V1.0 4. Terms 4.1 Definition of model (None) 4.2 Location of nameplate (None) 5. Product specification 5.1 Type specification(None) 5.2 Electrical parameters Product Name UR-JC96G-FR UR-JC96GE-FR CE-JC96GE-AR CE-JC96GE-AR Product Code 22033010000221 22033010000121 22033010000011 22033010000781 Item Specification Specification Specification Specification Compressor Compressor FZ40E1J... -
Page 12: Inside Temperature
Service Manual_2018-V1.0 Lights inside the refrigerator Lights inside the None None None None freezing chamber Lights inside the 115V/0.6W 12V/0.6W 12V/0.6W 12V/0.6W refrigerating chamber Switch of the None None None None refrigerator door 5.3 Inside temperature Temperature tolerance ≤ 4 The highest ( Lowest ( Compartment... -
Page 13: Circuit Diagram
Service Manual_2018-V1.0 5.5 Circuit diagram Thermostat θ Protector... -
Page 14: Internal View And Dimension
Service Manual_2018-V1.0 6. Internal view and dimension 6.1 Main parts and their names Freezer chamber Refrigerator chamber ❶ temperature display control panel None ❷ wine shelf❸ wine basket... -
Page 15: External Dimension
Service Manual_2018-V1.0 6.2 External dimension Description Code Size (mm) Height to Top of Case Width Depth w/Handles Depth (Total with Door Open) Width (door open 90 deg. w/ handle) None... -
Page 16: Refrigerating Piping System And Circulating Route Of Cooling Air
Service Manual_2018-V1.0 7. Refrigerating piping system and circulating route of cooling air 7.1 Refrigerating piping system ❶Compressor→❷Right condenser→❸Anti-condensation tube→❹Left Condenser→❺Dry filter→❻Capillary tube→❼Evaporator→❽Suction tube→❶Compressor 7.2 Circulating route of cooling air(None) -
Page 17: Dismantling Of Parts
Service Manual_2018-V1.0 8. Dismantling of parts 8.1 Parts on the door Door seal Door seal is installed into door liner groove. 1） Open the wine cabinet door; 2) Take the door seal ①out of door liner. Guardrail Guardrail None Door stopper Door stopper None rollover beam... -
Page 18: Light System
Service Manual_2018-V1.0 1）Lift up the division plate with a proper force and pull it out towards yourself; Refrigerator Fruit box cover Refrigerator Fruit box cover None Drawer Drawer None 8.3 Light system Light The light at the top of refrigerator chamber 1）Push the lampshade inner and take it down. -
Page 19: Evaporator And Temperature Sensing System
Service Manual_2018-V1.0 Fan motor of air duct Fan motor of air duct None Damper assembly Damper assembly None 8.6 Evaporator and temperature sensing system Evaporator in freezing chamber Evaporator in freezing chamber None Components on the evaporator Defrost thermostat None Fuse None Defrost sensor... -
Page 20: Compressor Case
Service Manual_2018-V1.0 Sensor in refrigerating chamber Evaporator in refrigerating chamber 1）To remove the sensor cover, you may squeeze it up and down.. 2）Take the sensor out from card slot.. Ambient temperature sensor None Sensor in Variable temperature chamber None Thermostat Thermostat None 8.7 Compressor case... - Page 21 Service Manual_2018-V1.0 3）Cut off the compressor pipeline.-❶Cut off the process pipeline.-❷Cut off the low-pressure muffler.-❸Cut off the high-pressure exhaust pipe. 4-1）Remove the screws(for some models) -Two screws outside -One screw inside 4-2）Remove the metal clamp(for some models) -Disassembly the metal clamp that is fix the electric appliance shield 5）Remove the clipping strip Slowly pull it out...
- Page 22 Service Manual_2018-V1.0 7）Remove the starter and protector Unplug the starter and protector (you can use a screwdriver to pry it slowly) 8）Loosen the screw of the compressor bottom plate, remove the floor together with the compressor from the box. 9）Use the wrench to remove the bolts by steps❹❺❻❼, replace the compressor and reverse process can complete installation.
- Page 23 Service Manual_2018-V1.0 11） Replace the compressor and welding the compressor pipeline.-❿Welding the process pipeline.-⓫Welding the low-pressure muffler.-⓬Welding the high-pressure exhaust pipe. 12）Replace the filter, Cu-Fe tubes welding ⓭ used Ag welding rod, Cu-Cu tubes welding ⓮ used Cu welding rod. 13）Vacuum system,The degree of vacuum below 6Pa.
-
Page 24: Display Control Board
Service Manual_2018-V1.0 Standby condenser Standby condenser None Piping system in the compressor case ❶ Condenser-1(in) ❻Capacitor ❷Drier ❼Compressor cover ❸Capillary Tube ❽Compressor ❹Transition pipe ❾drain tray ❺Main control board box ❿Condenser-2(out) ⓫Suction conection Pipe Disassembly and assembly of the drain tray 1）Pull out the drain tray 2）Replace the drain tray, the reverse process can complete installation. -
Page 25: Main Control Board
Service Manual_2018-V1.0 Take down door seal Take down screws, then the cover Take down screws on operation panel 8.9 Main control board Main control board ❶Screw ❸box cover of main control board ❷Main control board... -
Page 26: Bar Counter
Service Manual_2018-V1.0 Take down screws Take out main control panel cover Disconnect the fast connector Take screws on main control panel 8.10 Bar counter Bar counter Disassembly and installation of bar counter None Disassembly and installation bar doorseal None 8.11 Water dispenser Water dispenser Disassembly and installation of water valve None... -
Page 27: Function And Operation
Service Manual_2018-V1.0 9. Function and operation 9.1 Operation panel Icons Button 9.2 Temperature control UI Control ●Powering on each time, the display screen gives a full display for 3s and meanwhile the start-up sound rings; then the machine enters into operation in the locked state .●The corresponding fault code will be displayed when a fault occurs;... -
Page 28: Give An Alarm (None)
Service Manual_2018-V1.0 mode. Temperature setting ●Press the Temperature-rise key , the temperature will increase 1℃ (or 1℉). After locking, the cooler will operate according to the setting temperature; ●Press the Temperature-drop key , the temperature will decrease 1℃ (or ℉). After locking, the cooler will operate according to the setting temperature ●The wine cooler‘s temperature can be set between 7~18℃（44~65℉）... -
Page 29: Circuit Description
Service Manual_2018-V1.0 10. Circuit description 10.1 Power Supply(None) AC power is reduced and output stable DC12V by SMPS control chip and LC ,DC12V provide power to r elay,the relay is for controlling the compressor and defrosting heater. DC12V is changed into stable DC5 V by adjustor 7805,DC5V provide power to control chip,control chip monitor the temperature change of r efrigerator 10.2 Test circuit for door switch(None) -
Page 30: Temperature Test Circuit(None)
Service Manual_2018-V1.0 The characteristic that resistance value reduces as the temperature increases is deemed to have negative slope or negative temperature coefficient (NTC), and such thermistor is called as NTC thermistor. The resistance value changes sensitively with temperature and typically changes 7% ~ 3% per degree centigrade. - Page 31 Service Manual_2018-V1.0 20.01 8.841 4.167 2.094 1.115 18.9 8.392 3.972 2.005 1.071 17.87 7.968 3.788 1.919 1.029 16.9 7.568 3.613 1.838 0.9885 15.98 7.19 3.447 1.761 0.9506 15.12 6.833 3.29 1.687 0.914...
-
Page 32: Troubleshooting Method
Service Manual_2018-V1.0 11. Troubleshooting Method 11.1 Not cooling... -
Page 33: Not Working Of Compressor
Service Manual_2018-V1.0 11.2 Not working of compressor 11.3 Thermostat malfunction-Undercooling... -
Page 34: Light Is Not On
Service Manual_2018-V1.0 11.4 Light is not on 11.5 Noise... -
Page 35: Figures And Details Of Repair Parts(Documents Are Provided Separately)
Service Manual_2018-V1.0 12. Figures and details of repair parts(Documents are provided separately) 12.1 Figures 12.2 List of parts and components... -
Page 36: Appendix
Service Manual_2018-V1.0 13. Appendix 13.1 Refrigerator maintenance tooling and equipment and material Tooling Name Main Usage Photo screw assemble and Phillips screwdriver disassemble slotted screw and rivet assemble and screwdriver/scraper disassemble hinge and compressor screw Socket spanner 5/16″ assemble and disassemble display panel and air duct cover Sucker disassemble... - Page 37 Service Manual_2018-V1.0 Capillary tube scissors Shear capillary Knife assistive tool Pipe cutter, Flaring Pipe cutting，flaring device Electronic digital Test temperature thermometer Measurement with resistance, Multi meter voltage, current and so on. Equipment Name Main Usage Photo Vacuum pump with vacuum pumping gauge Electronic scale weighing refrigerant/gas...
- Page 38 Service Manual_2018-V1.0 Connection process pipeline, Quick coupling vacuum or charge refrigerant will be used. Soldering gun heating and welding welding point leakage detect, if hand leak detector no, use soap-suds Material Name Main Usage Photo Process pipeline Charge the refrigerant Involving a system failure to be Dry filter...
- Page 39 Service Manual_2018-V1.0 Aluminium-Aluminium tubes Transition copper pipe welding, maintain lengthen tubes...
- Page 40 MIDEA appliances after sales website tsp.midea.com For more information about Midea appliances after sales, please visit the For more information about the service manual, please visit the tsp.midea.com tsp.midea.com For more information about the EV and SBOM, please visit the...
