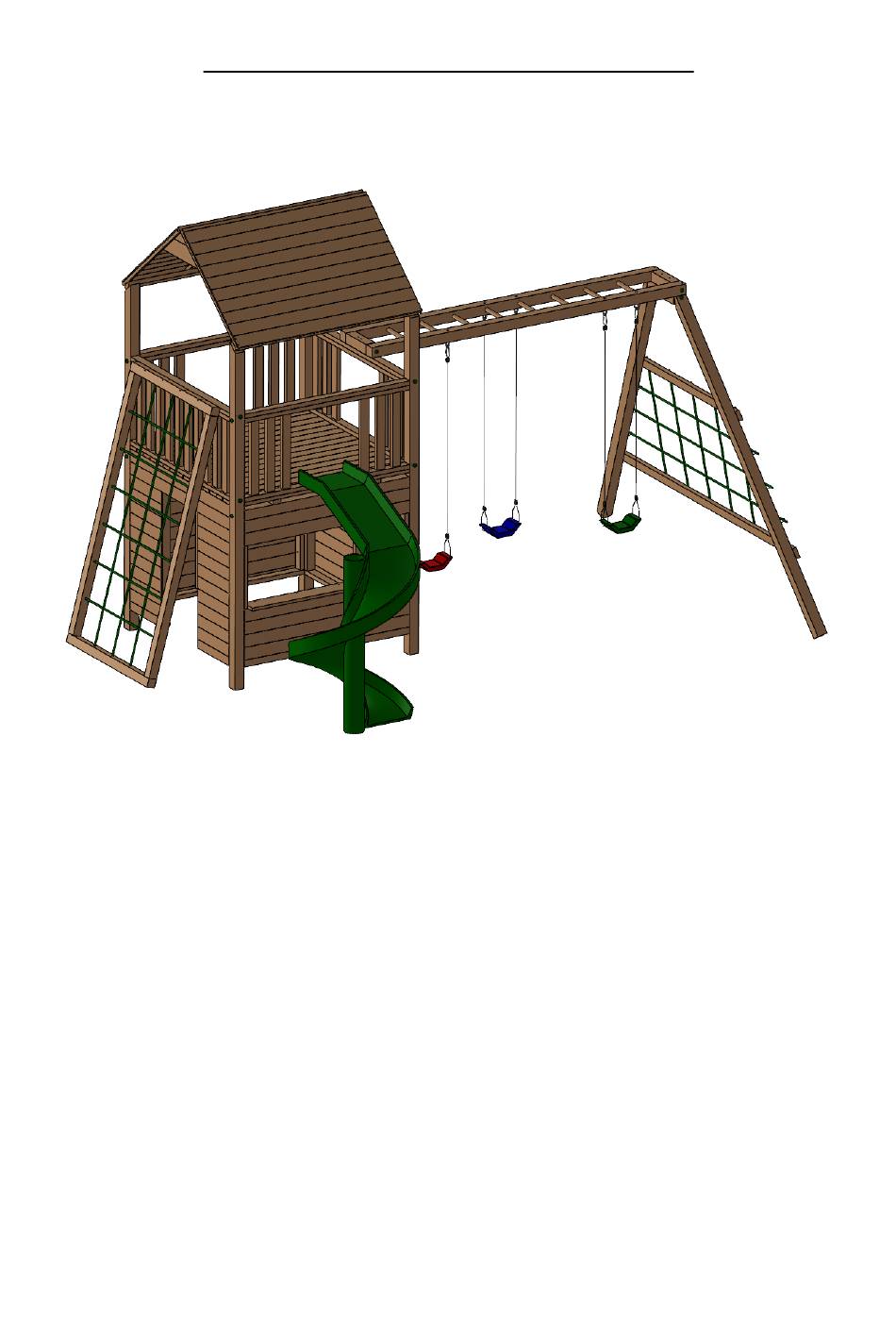

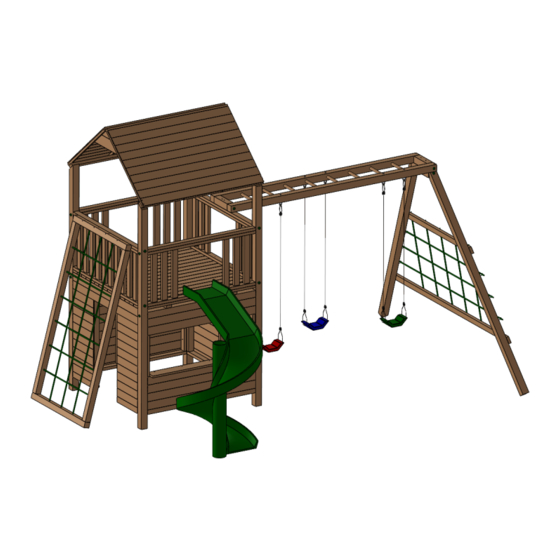

- Page 1 Miami (6ft) Climbing Frame Instruction Manual...
- Page 2 Parts List Item Description Image Quantity Number 3m post cut at 40° angle 3m post cut 2 (with at 60° angle 32mm hole pre-drilled) 420mm post 1575mm post...
- Page 3 1755mm x 1170 mm roof panel 6” x 1” small board for roof 6” x 1” large board for roof 1755mm x 1755mm base 1575mm x 3” x 1.5” timber...
- Page 4 1755mm 3” x 1.5” timber Railings 4 (3 open, 1 closed as standard) Open Railing Closed Railing Decking Approx. screws...
- Page 5 200mm index screws 120mm screws Set of steps Screw covers Approx. 20...
- Page 6 M10 swing 6 (as hook standard, depends on swing choices) 8ft Cargo Net Spiral Slide...
- Page 7 Swing (varies 3 as depending standard customers choice) 10ft Monkey 1 (holes Bars pre-drilled for swing hooks) 3m x 3” x 1.5”...
- Page 8 U-Nails 1 bag 16mm Rope Enclosed 4 walls (2 Bottom tall, 2 small)
- Page 9 6” x 1” board Other components included: Handgrips, telescope, steering wheel. Tools needed: • Cordless drill • Handsaw • Spirit Level • Hammer • Shovel • Stepladder • Pencil • Measuring tape • 10mm Hex bit • PZ 2 Drill Bit Ground Preparation 1.
- Page 10 Assembly Instructions All components needed during the assembly are numbered with reference to the parts list, please refer back to the parts list to ensure you are assembling the correct components for each step. Step 1: ‘H-Frame’ Assembly • Lay 2 3m posts that are cut at a 40° angle on a level surface •...
- Page 11 Step 3: • Make a mark 2400mm (2.4m) from the top of both 3m posts. If your frame has a picnic or sandpit picnic table, add a second mark to each post 2100mm down from the top of the post •...
- Page 12 Step 4: • Place another 1755mm 3” x 1.5” timber on the 40° angle on the top of the post and screw into place using the 65mm decking screws • Steps 3 and 4 strengthen the H-frame structure, without this additional support at the top and bottom, the frame will twist once it is lifted up Step 5: •...
- Page 13 Step 6: (Requires heavy lifting, please use at least 2 people) • Lift both ‘H’-frames into the holes that have been cut out in the ground • Make sure the ‘H’-frames are orientated correctly (to ensure that the roof will be able to rest on the tops) Step 7: •...
- Page 14 Step 8: Base Assembly • The structure should now be able to stand on its own • Lift the base and place it onto the two horizontal posts. The 3” x 1.5” base supports should sit onto the horizontal posts •...
- Page 15 Step 9: Railings Assembly • There are 4 railings per tower. The open ones are typically for the rope bridge, steps, fireman’s pole, monkey bars and slide; the closed ones are for the rock wall, cargo net and swing module. Ensure to fit the railings in their correct positions depending on the desired layout of the frame.
- Page 16 • For the two sides with 4” x 4” posts with the 3” x 1.5” base supports sitting on them, the decking screws should be screwed in from beneath at an angle between each of the 3” x 1.5” base supports Step 10: •...
- Page 17 Step 11: • Repeat steps 9 and 10 for each railing...
- Page 18 Step 12: Roof Assembly • Place one of the 1755mm x 1170mm roof panels directly onto the ground (so that the shingled part is facing downwards) • Using the ‘v’ boards provided assemble the two roof panels together using decking screws...
- Page 19 Step 13: • Lift the roof onto the climbing frame and ensure it is positioned evenly on all sides before securing the roof to the top of the post using 2 x decking screws for each 2” x 1” support of the roof panel •...
- Page 20 Step 14: Enclosed Bottom Assembly • Place the two small enclosed walls between the 3m posts and below the 1575mm post. The front of the wall should sit flush against these posts. • Secure the two small walls using decking screws. Screw through the enclosed walls from the inside into the 3m posts at each side and screw upwards through the enclosed bottom into the 1575mm post above...
- Page 21 Step 15: H-Frame Supports Removal • Remove all the lower H-Frame supports that were added during steps 3 and 7...
- Page 22 Step 16: • Place the two large enclosed walls between the two remaining spaces between the 3m posts. The front of the wall should sit flush against these posts. Place the wall with the door in the desired position • Secure the two tall walls using decking screws.
- Page 23 Step 17: Monkey Bar Module Assembly • Lay out the 2 posts on a flat surface • Attach the 420mm post to the top of the posts as shown, using the 200mm screws. Please ensure that the 420mm post is flush with the cut on the top of each 3m post...
- Page 24 Step 18: • Attach a piece of 1755mm x 3” x 1.5” across the middle of the A-frame to hold it in its place when lifted. To position this, mark 900mm down from the top of each post and line up the top of the 1755mm timber to each of these lines Step 19: •...
- Page 25 Step 20: • Place each swing hook through the pre-drilled holes of the 3m monkey bar post, secure using the appropriate spanner...
- Page 26 Step 21: • Now the tricky part. The ‘A’-frame is designed to be at an 82° angle (i.e it is not at 90 degrees to the ground) • The ‘A’-frame should be then lined up to the centre of the frame •...
- Page 27 Step 22: • Ensure that the monkey bar is flush with the A-frame and is overhanging either side the same distance • Use the 200mm screws provided to screw the monkey bars to the 3m posts of the A-frame, and the 120mm screws to screw down into the 420mm post •...
- Page 28 Step 23: • Place the 3m 3” x 1.5” timber provided at a height of approximately 200mm from the ground to the bottom of the timber • Secure them in place using the decking screws provided...
- Page 29 Step 24: • Cut the 3” x 1.5” flush with the A-frame posts...
- Page 30 Step 25: Cargo Net Assembly • The height and width of the squares are approximately 300mm apart. Make a mark of these points on the 2 posts and the 3” x 1.5”. Best way to do this is to measure the distance between the 3”...
- Page 32 Step 26: Steps Assembly • The steps might have to be cut or dug into place (depending on the slope of your surface) • They are secured using decking screws through the top and sides of the steps into the base of the tower.
- Page 33 Step 27: Cargo Net Assembly • Place the cargo net onto the top of the railing • Using the 120mm screws provided screw the cargo net into the top rail...
- Page 34 Step 28: Slide Assembly • Using 2 decking screws, secure the slide to the bottom timber of an open railing through the pre-drilled holes in the slide...
- Page 35 Step 29: Swing Attachment • Hang your chosen swings from the swing hooks...
- Page 36 Step 30: Adding Lip to Enclosed Bottom • Use decking screws to secure the 6” x 1” board to the enclosed bottom wall with a large opening...
- Page 37 Step 31: Concreting structure • Using postcrete and following the manufacturer’s instructions, concrete all the posts into the ground • The frame should be left overnight before it is used to ensure the postcrete has dried The final stage is to put on the accessories, give everything a good sand down to avoid the children getting splinters from any rough edges.
- Page 38 Maintaining Your Climbing Frame My climbing frame has been installed, what do I do next? A: If your climbing frame was installed in a grassed area the installers have concreted the frame into the ground. They have left a small exposed hole, where the posts have been sunk into the ground. The reason this has been done is to allow the concrete to set overnight.
