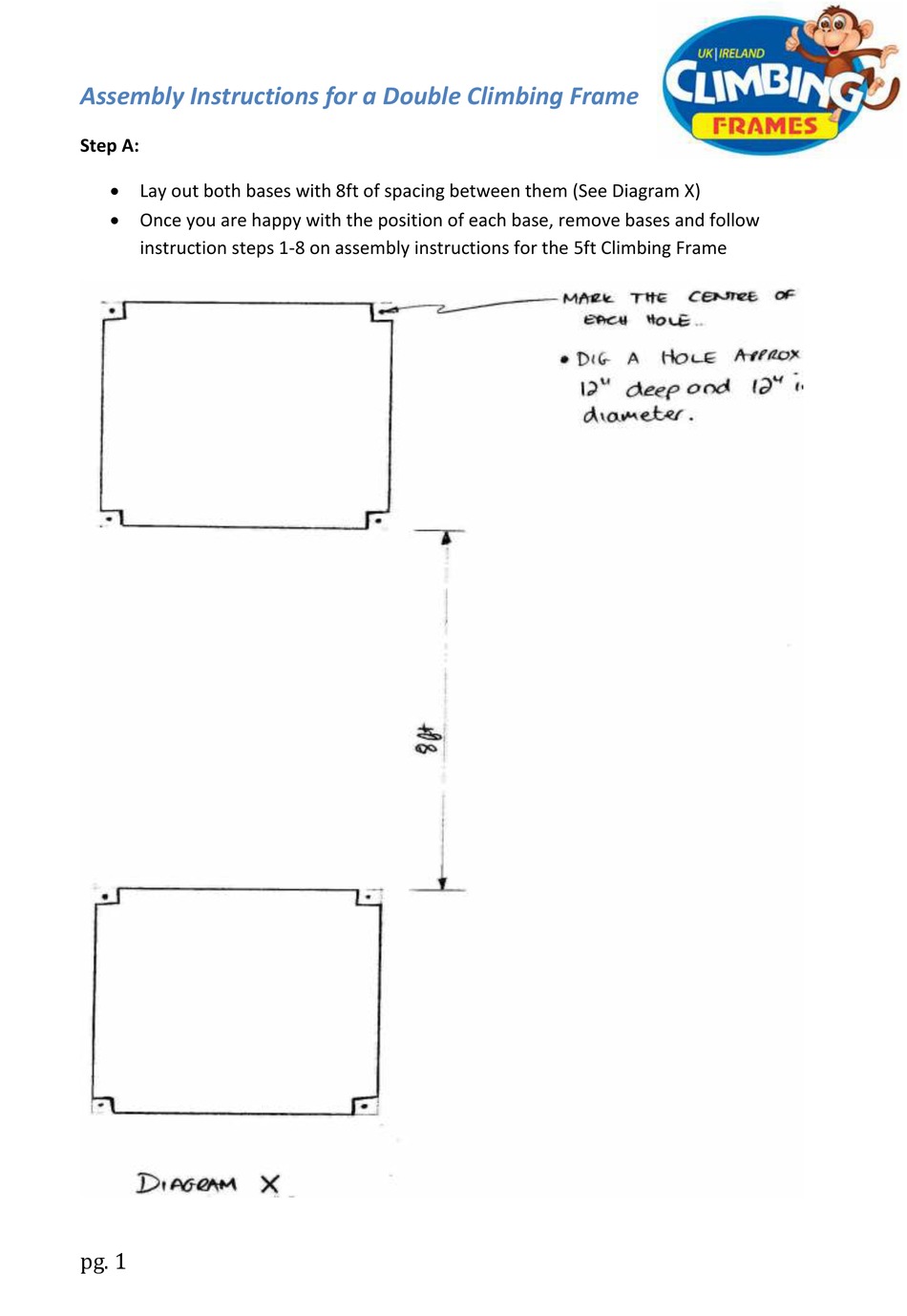

Assembly Instructions for a Double Climbing Frame
Step A:
 Lay out both bases with 8ft of spacing between them (See Diagram X)
 Once you are happy with the position of each base, remove bases and follow
instruction steps 1-8 on assembly instructions for the 5ft Climbing Frame
pg. 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Double Climbing Frame and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NI Climbing Frames Double Climbing Frame

Summary of Contents for NI Climbing Frames Double Climbing Frame

  • Page 1 Assembly Instructions for a Double Climbing Frame Step A:  Lay out both bases with 8ft of spacing between them (See Diagram X)  Once you are happy with the position of each base, remove bases and follow instruction steps 1-8 on assembly instructions for the 5ft Climbing Frame...

  • Page 2: Materials Provided

    Assembly instructions for 5 foot climbing frame Materials provided 4 x 10ft posts cut at an angle of 40 degrees 2 x 10ft posts cut at an angle of 60 degrees (with the top already prepared for the swing pole) 1 x 10ft post for the swing pole 2 x 1274mm posts 2 x 6ftx4ft fence panels...
  • Page 3 Step1: Ground Preparation  Lay out the base, slide and the 10ft swing pole in the position that you intend the climbing frames to be placed.  Allow for 6 ft clearance beyond the end of the slide and 4 ft clearance for the steps, rock module and swing module.
  • Page 4  Now with the 200mm index screws provided, screw the poles together on both sides, making sure the index screw is tightened into place  Make a mark 900mm from the bottom of both 10ft posts  Using the 1460mm 3”x1 1/12” timber and using the 50mm decking screws screw the timber to the frame (this is to strengthen the H-frame structure, without this additional support at the bottom the frame will twist once it is lifted up) ...
  • Page 5  The structure should now be able to stand on it’s own  Lift the base and place it in it’s place  Secure base using the 120mm screws provided, they are to be screwed directly into the base onto the 4”x4” cross posts Step 4: Side-rails assembly ...
  • Page 6  Using a 19mm drill bit, drill a hole on the outside of the post as indicated on Diagram C  Using the 120mm screws, screw through the upright post so as to tighten the top railing to the post ...
  • Page 7 Step 6: Swing module assembly  Lay the 2 x 10ft posts (with the ends cut off at 60 degrees) on a flat surface  Place the ends together so that it forms a v-shape  Using the 200mm index screws, tighten the ends together ...
  • Page 8  Using the remaining 10ft post (that is square on both ends) mark out equidistantly where the swings are to be placed. Leave 600mm per swing  Once these have been marked, using a 10mm drill bit, drill a hole right through the timber ...
  • Page 9 Step 7: Concreting structure  Using postcrete and following the manufacturers instruction concrete all 6 posts into the ground  Once dry you can continue Step 8: Final assembly  The steps might have to cut or dug into place (depending on the slope of your surface) ...
  • Page 10 Step 9: Rope Bridge  Using the 9ft lengths of 3x1 1/2’’ (that is doubled up) place these on the underside of the bases.  They are to be placed 150mm to the left and right of the centre point of the base ...
  • Page 11 Photos that might be useful in building the climbing frame: pg. 11...
  • Page 12 pg. 12...
  • Page 13 pg. 13...
