The Highlands Commercial (6ft Triple) Climbing Frame Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Highlands Commercial and is the answer not in the manual?

Questions and answers

Related Manuals for NI Climbing Frames Highlands Commercial

Summary of Contents for NI Climbing Frames Highlands Commercial

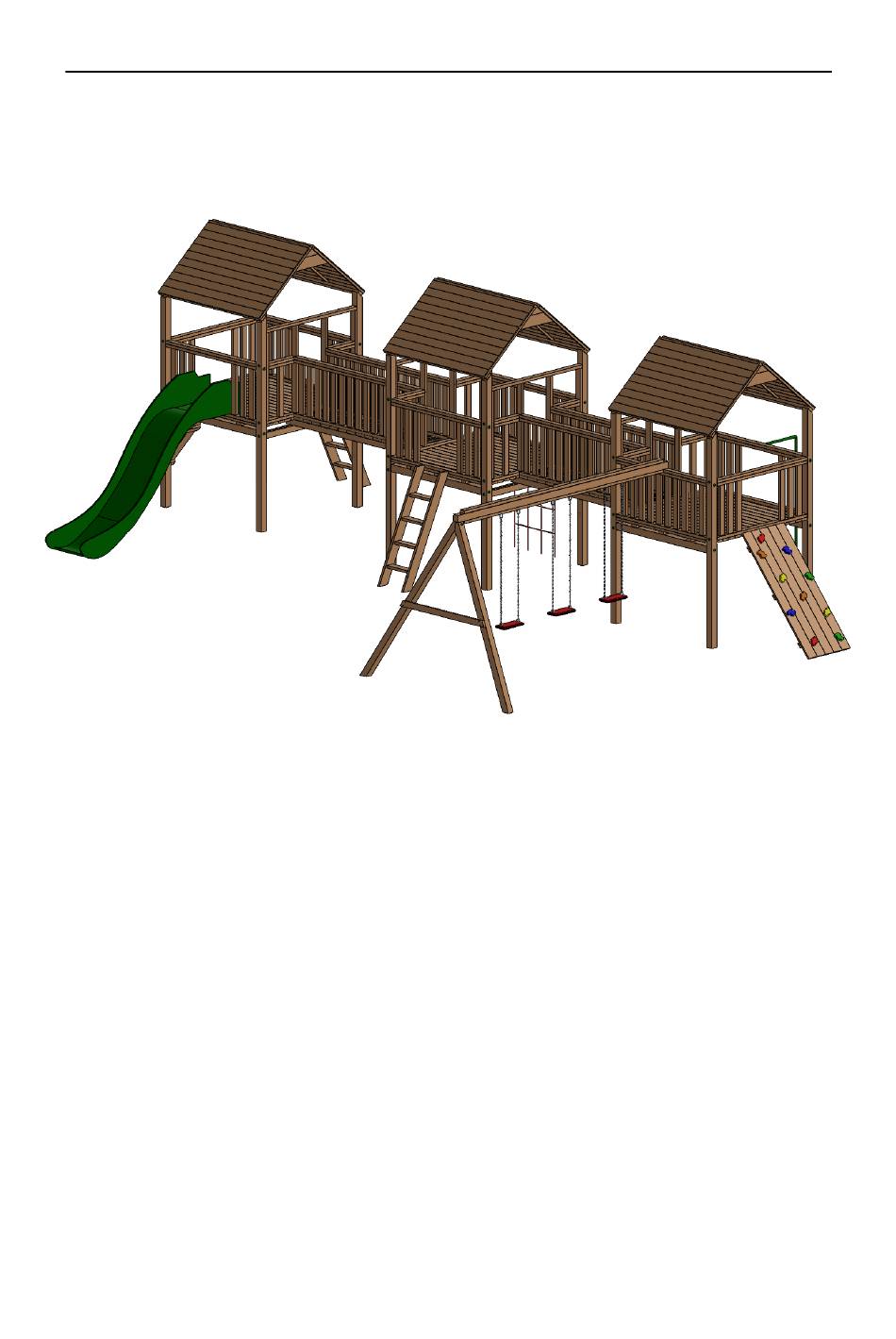

  • Page 1 The Highlands Commercial (6ft Triple) Climbing Frame Instruction Manual...
  • Page 2 Parts List Item Description Image Quantity Number 9ft post cut at 40° angle 9ft post cut 2 (with at 60° angle 32mm hole pre- drilled) 12ft Swing Beam 1575mm post...
  • Page 3 1755mm x 1170 mm roof panel 6” x 1” small board for roof 6” x 1” large board for roof 1755mm x 1755mm base 1575mm x 6 + 20 for 3” x 1.5” picnic timber table...
  • Page 4 1755mm 3” 13 + 2 for x 1.5” picnic timber table Railings 14 (12 for towers and 2 for bridge) Open Railing Closed Railing Decking Approx. screws...
  • Page 5 200mm index screws 120mm screws Set of steps Screw covers M12 swing 6 (as hook standard, depends on swing choices)
  • Page 6 Rock wall (with baton) Commercial Slide (with fixings) Swing 3 as (varies standard depending customers choice)
  • Page 7 Decking 32 (or 64 Boards 3” x 1.5” slats) 2450mm x 3” x 1.5” doubled up 1575mm x 3” x 1.5” doubled up...
  • Page 8 4ft Cargo Net (with fixings) 2” Thick Fireman’s Pole 6x60 screws Other components included: Handgrips, telescope, steering wheel.
  • Page 9 Tools needed: • Cordless drill • Handsaw • Spirit Level • Hammer • Shovel • Stepladder • Pencil • Measuring tape • 10mm Hex bit • PZ 2 Drill Bit Ground Preparation 1. Lay out the bases slide and 12ft swing bar in the position that you intend the climbing frame to be placed.
  • Page 10 Assembly Instructions All components needed during the assembly are numbered with reference to the parts list, please refer back to the parts list to ensure you are assembling the correct components for each step. Step 1: ‘H-Frame’ Assembly • Lay 2 x 9ft posts that are cut at a 40° angle on a level surface. •...
  • Page 11 Step 3: • Make a mark 2100mm (2.1m) from the top of both 9ft posts. If your frame has a picnic or sandpit picnic table, add a second mark to each post 1800mm down from the top of the posts. •...
  • Page 12 Step 4: • Place another 1755mm 3” x 1.5” timber on the 40° angle on the top of the post and screw into place using the 65mm decking screws. • Steps 3 and 4 strengthen the H-frame structure, without this additional support at the top and bottom, the frame will twist once it is lifted up.
  • Page 13 Step 6: (Requires heavy lifting, please use at least 2 people) • Lift both ‘H’-frames into the holes that have been cut out in the ground. • Make sure the ‘H’-frames are orientated correctly (to ensure that the roof will be able to rest on the tops)
  • Page 14 Step 7: • Using 2 pieces of 1575mm x 3” x 1.5” timber, connect the two H-frames together using decking screws.
  • Page 15 Step 8: Base Assembly • The structure should now be able to stand on its own. • Lift the base and place it onto the two horizontal posts. The 3” x 1.5” base supports should sit onto the horizontal posts. •...
  • Page 16 Step 9: Railings Assembly • There are 4 railings per tower. Ensure to fit the railings in their correct positions depending on the desired layout of the frame. The tall rails are for the bridge entrance. They should fit tightly into place between the upright posts and on the base. •...
  • Page 17 • For the two sides with 4” x 4” posts with the 3” x 1.5” base supports sitting on them, the decking screws should be screwed in from beneath at an angle between each of the 3” x 1.5” base supports. Step 10: •...
  • Page 18 Step 11: • Repeat steps 9 and 10 for each railing.
  • Page 19 Step 12: Roof Assembly • Place one of the 1755mm x 1170mm roof panels directly onto the ground (so that the shingled part is facing downwards) • Using the ‘v’ boards provided assemble the two roof panels together using decking screws.
  • Page 20 Step 13: • Lift the roof onto the climbing frame and ensure it is positioned evenly on all sides before securing the roof to the top of the post using 2 x decking screws for each 2” x 1” support of the roof panel.
  • Page 21 Step 14: • Repeat steps 1-13 for the other towers and make sure there is 2160mm between the towers and that the frames are orientated correctly for the bridges to connect to.
  • Page 22 Step 15: Bridge Assembly Step 1 • Using two 2.45m lengths of 3” x 1.5’’ (that is doubled up) place these on the underside of the bases. • They are to be placed 310mm (measured from the outside of the timber) to the left and right of the centre point of the base (480mm in between) •...
  • Page 23 Step 16: Bridge Assembly Step 2 • Secure the two doubled up 1575mm 3” x 1.5’’ (one to each tower) by placing them below the two doubled up 2.45m lengths of 3” x 1.5’’ and between the 9ft vertical posts. •...
  • Page 24 Step 17: Bridge Assembly Step 3 • Screw the decking boards down into the two doubled up 2.45m lengths of 3” x 1.5’’ using decking screws.
  • Page 26 Step 18: Bridge Assembly Step 4 • Secure each end of the bridge railings with 120mm screw through the high tower railing and into the decking of the bridge with 60mm screws (you may need to trim the bridge railings slightly to make them fit)
  • Page 29 Step 19: • Repeat previous steps to assemble the 2 bridge.
  • Page 30 Step 20: Swing Module Assembly • Lay the 2 x 9ft posts (with the ends cut off at 60 degrees) on a flat surface. • Place the ends together so that it forms an A-shape. • Using the 200mm index screws, screw the ends together, so the two posts meet nice and flush on all sides.
  • Page 31 Step 22: • Cut the 1755mm 3” x 1.5” timber so that it is flush on both sides of the A-frame. Step 23: • Place each swing hook through the pre-drilled holes of the 12ft post and secure using the appropriate spanner.
  • Page 32 Step 24: • Now the tricky part. The ‘A’-frame is designed to be at an 80° angle (i.e it is not at 90 degrees to the surface). • The ‘A’-frame should be then lined up to the centre of the frame. •...
  • Page 33 Step 25: • Once this is achieved (no easy task), then secure both ends into place, screw 120mm screws down into the railing, and 200mm index screws down into each leg of the A-frame.
  • Page 35 Step 26: Steps Assembly • The steps might have to be cut or dug into place (depending on the slope of your surface) • They are secured using decking screws through the top and sides of the steps into the base of the tower.
  • Page 37 Step 27: Rock Wall Assembly • Firstly, cut out the bottom rail of the railing where the rock wall is to go, the same width as the rock wall itself, approx. 720mm. • Then screw on the 35mmx32mm baton in its place, keeping the cut edge facing out of the tower and flush to the edge of the decking.
  • Page 39 Step 28: Slide Assembly • Place the slide in the desired position then mark and drill two 8mm holes where the centre of the bracket is meeting the base. Then it is just a matter of tightening down the bracket using M8 bolts and washers, ensuring the nuts are tight.
  • Page 40 Step 29: Fireman’s Pole Assembly • Place the fireman’s pole into its position and mark the position that it will go into the ground, which will be the centre of the railing and out the same distance as the turn in the pole itself.
  • Page 41 Step 30: Cargo Net Assembly • Use the fixings that come with the armoured cargo net to secure the net to a 1575mm post that make up one of the H-Frames of a tower.
  • Page 42 Step 31: Swing Attachment • Hang your chosen swings from the swing hooks. Step 32: Concreting structure • Using postcrete and following the manufacturer’s instructions, concrete all the posts into the ground. • The frame should be left overnight before it is used to ensure the postcrete has dried. •...
  • Page 43 Step 33: Remove H-Frame Supports • Remove the H-Frame supports that were added during steps 3 & 7.
  • Page 44 The final stage is to put on the accessories, give everything a good sand down to avoid the children getting splinters from any rough edges. All screws should also be checked to ensure they are flush to the surface they are securing and press the screw covers into the 32mm holes in the posts.
