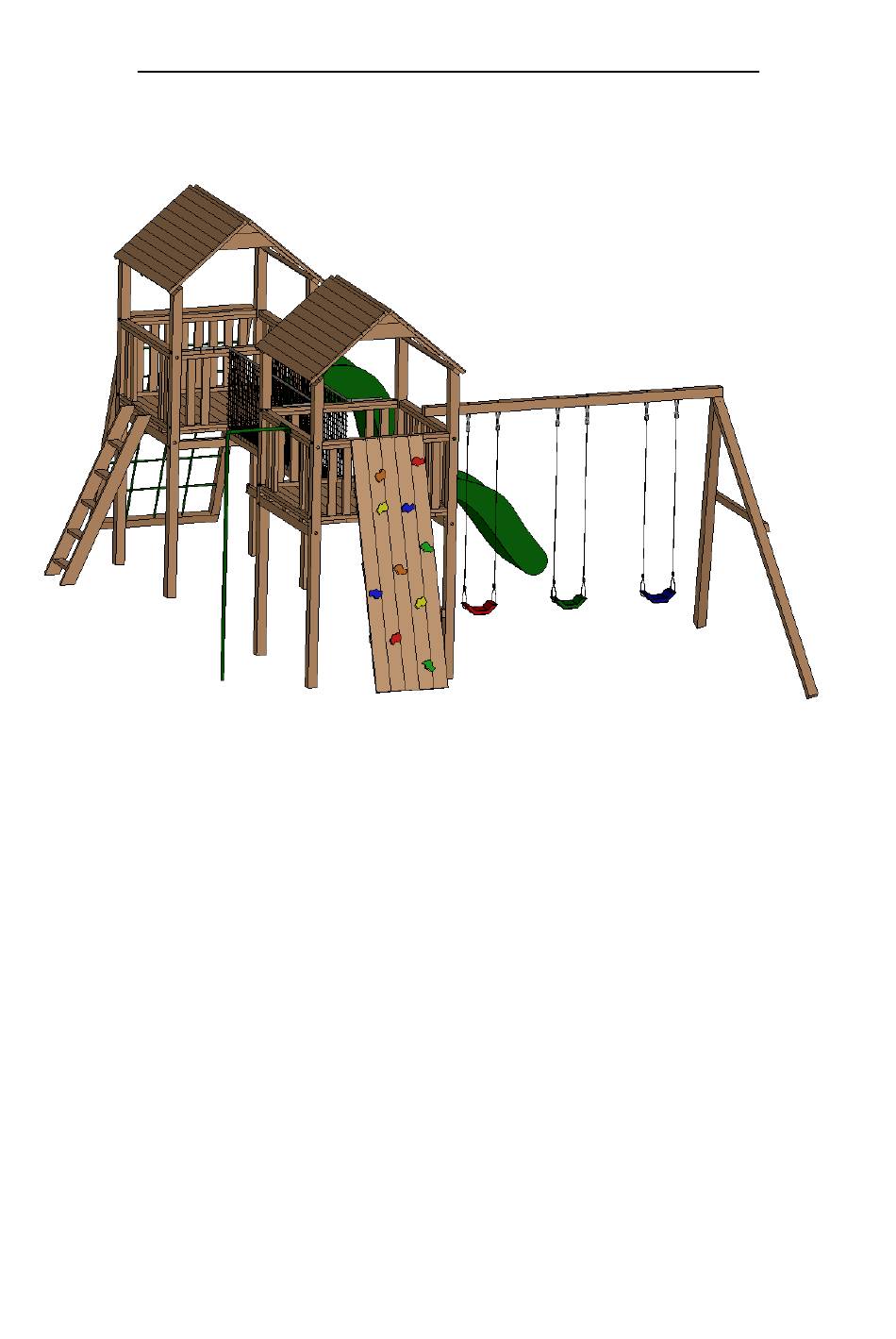

- Page 1 Dromoland (5ft Double) Climbing Frame Instruction Manual...
- Page 2 Parts List Item Description Image Quantity Number 3m post cut at 40° angle 3m post 2 (One cut at 60° with a angle 32mm hole pre- drilled) 3m post for swing bar or monkey bar module Holes pre-drilled depending on swing choices 1280mm post...
- Page 3 1460mm x 1010 mm roof panel 6” x 1” small board for roof 6” x 1” large board for roof 1460mm x 1460mm base 1280mm x 3” x 1.5” timber...
- Page 4 1460mm 3” x 1.5” timber Railings 8 (5 open, 3 closed standard) Open Railing Closed Railing Decking screws...
- Page 5 200mm index screws 120mm screws Set of steps Screw covers...
- Page 6 M10 swing 6 (as hook standard, depends on swing choices) Rock wall 1 (10 rocks as standard for 8ft wall) (5ft wall has 5 rock holds) 9ft slide...
- Page 7 Swing 3 as (varies standard depending customers choice) 2450mm 3” x 1.5” doubled up for Rope Bridge 1280mm 3” x 1.5” doubled up for Rope Bridge...
- Page 8 330mm 16 (or 32 x Decking 330mm 3” Board x 1.5” slats) Green Mesh 3m rope Large U- 1 Bag Nails...
- Page 9 Small U- 1 bag Nails 8ft Cargo 8ft tall Fireman’s Pole Other components included: Handgrips, telescope, steering wheel.
- Page 10 Tools needed: • Cordless drill • Handsaw • Spirit Level • Hammer • Shovel • Stepladder • Pencil • Measuring tape • 10mm Hex bit • PZ 2 Drill Bit Ground Preparation 1. Lay out the bases, slide and the 3m swing bar in the position that you intend the climbing frame to be placed, allowing 2.160m between the bases for the rope bridge.
- Page 11 Assembly Instructions All components needed during the assembly are numbered with reference to the parts list, please refer back to the parts list to ensure you are assembling the correct components for each step. Step 1: ‘H-Frame’ Assembly • Lay 2 3m posts that are cut at a 40° angle on a level surface •...
- Page 12 Step 3: • Make a mark 2400mm (2.4m) from the top of both 3m posts. If your frame has a picnic or sandpit picnic table, add a second mark to each post 2100mm down from the top of the post •...
- Page 13 Step 4: • Place another 1460mm 3” x 1.5” timber on the 40° angle on the top of the post and screw into place using the 65mm decking screws • Steps 3 and 4 strengthen the H-frame structure, without this additional support at the top and bottom, the frame will twist once it is lifted up Step 5: •...
- Page 14 Step 6: (Requires heavy lifting, please use at least 2 people) • Lift both ‘H’-frames into the holes that have been cut out in the ground • Make sure the ‘H’-frames are orientated correctly (to ensure that the roof will be able to rest on the tops) Step 7: •...
- Page 15 Step 8: Base Assembly • The structure should now be able to stand on its own • Lift the base and place it onto the two horizontal posts. The 3” x 1.5” base supports should sit onto the horizontal posts •...
- Page 16 Step 9: Railings Assembly • There are 4 railings per tower. The open ones are for the rope bridge, steps, fireman’s pole, monkey bars and slide; the closed ones are for the rock wall, cargo net and swing module. Ensure to fit the railings in their correct positions depending on the desired layout of the frame.
- Page 17 • For the two sides with 4” x 4” posts with the 3” x 1.5” base supports sitting on them, the decking screws should be screwed in from beneath at an angle between each of the 3” x 1.5” base supports Step 10: •...
- Page 18 Step 11: • Repeat steps 9 and 10 for each railing...
- Page 19 Step 12: Roof Assembly • Place one of the 1460mm x 1010mm roof panels directly onto the ground (so that the shingled part is facing downwards) • Using the ‘v’ boards provided assemble the two roof panels together using decking screws...
- Page 20 Step 13: • Lift the roof onto the climbing frame and ensure it is positioned evenly on all sides before securing the roof to the top of the post using 2 x decking screws for each 2” x 1” support of the roof panel •...
- Page 21 Step 14: • Repeat Steps 1-13 for 2 Tower • Ensure there is 2.160m between the towers and that 2 open railings are facing each other for the rope bridge to connect to...
- Page 22 Step 15: Rope Bridge Assembly Step 1 • Using the two 2.45m lengths of 3” x 1.5’’ (that is doubled up) place these on the underside of the bases • They are to be placed 65mm to the left and right of the centre point of the base (130mm in between) •...
- Page 23 Step 16: Rope Bridge Assembly Step 2 • Secure the two doubled up 1280mm 3” x 1.5’’ (one to each tower) by placing them below the two doubled up 2.45m lengths of 3” x 1.5’’ and between the 3m vertical posts •...
- Page 24 Step 17: Rope Bridge Assembly Step 3 • Screw the decking boards down into the two doubled up 2.45m lengths of 3” x 1.5’’ using decking screws...
- Page 25 Step 18: Rope Bridge Assembly Step 4 • Attach the rope and safety netting, you will need to thread the beige rope in and out of the green netting at one side the whole way through. Copy this for both lengths of rope and netting •...
- Page 26 Step 19: Swing Module Assembly • Lay the 2 x 3m posts (with the ends cut off at 60 degrees) on a flat surface • Place the ends together so that it forms an A-shape • Using the 200mm index screws, screw the ends together, so the two posts meet nice and flush on all sides...
- Page 27 Step 20: • Measure down from the top of the ‘A’ post 900mm to both posts and place the 1460mm 3” x 1.5” timber across both posts and secure these into place with decking screws Step 21: • Cut the 1460mm 3” x 1.5” timber so that it is flush on both sides of the A-frame...
- Page 28 Step 22: • Place each swing hook through the pre-drilled holes of the 3m post that is square on both ends, secure using the appropriate spanner Step 23: • Now the tricky part. The ‘A’-frame is designed to be at an 80° angle (i.e it is not at 90 degrees to the surface).
- Page 29 Step 24: Once this is achieved (no easy task), then secure both ends into place, screw 120mm screws down into the railing, and 200mm index screws down into each leg of the A-frame Step 25: Screw Cover Assembly • Press the screw covers into each of the 32mm holes on the 8 vertical posts that make up the H-Frames and the swing assembly post...
- Page 30 Step 26: Rock Wall Assembly • The rock wall is typically made slightly longer than required to allow for a slope • Place the rock wall against the top of a closed railing • Measure the amount you may have to take off the bottom of the rock wall •...
- Page 31 Step 27: Steps Assembly • The steps might have to be cut or dug into place (depending on the slope of your surface) • They are secured using decking screws through the top and sides of the steps into the base of the tower.
- Page 32 Step 28: Slide Assembly • Using 2 decking screws, secure the slide to the bottom timber of an open railing through the pre-drilled holes in the slide...
- Page 33 Step 29: Cargo Net Assembly • Place the cargo net onto the top of the railing • Using the 120mm screws provided screw the cargo net into the top rail...
- Page 34 Step 30: Fireman’s Pole Assembly • Place the fireman’s pole into its position and mark the position that it will go into the ground, which will be the centre of the railing and out the same distance as the turn in the pole itself •...
- Page 35 Step 31: Swing Attachment • Hang your chosen swings from the swing hooks Step 32: Concreting structure • Using postcrete and following the manufacturer’s instructions, concrete all the posts into the ground • The frame should be left overnight before it is used to ensure the postcrete has dried.
- Page 36 Step 33: Removing the H-Frame supports • Remove the lower H-Frame supports that were added during steps 3 and 7. The final stage is to put on the accessories, give everything a good sand down to avoid the children getting splinters from any rough edges. All screws should also be checked to ensure they are flush to the surface they are securing.
- Page 37 Maintaining Your Climbing Frame My climbing frame has been installed, what do I do next? A: If your climbing frame was installed in a grassed area the installers have concreted the frame into the ground. They have left a small exposed hole, where the posts have been sunk into the ground. The reason this has been done is to allow the concrete to set overnight.
