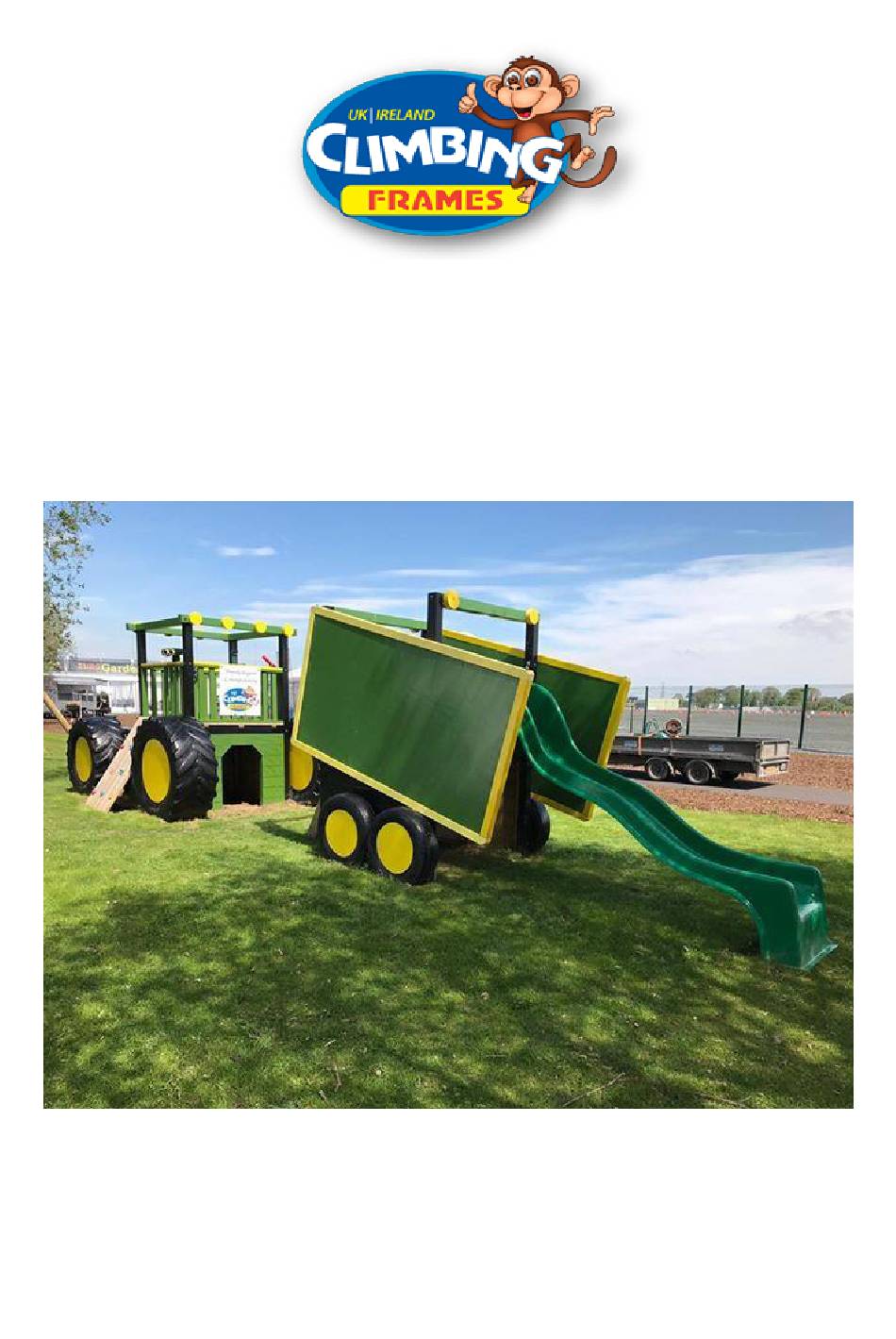

Assembly instructions for Commercial Tractor
and Trailer Climbing Frame:
This tractor climbing is designed for a flat garden, this can also fit for a slope,
but may require extra adjustment, please seek this from your onsite joiners.
pg. 1
