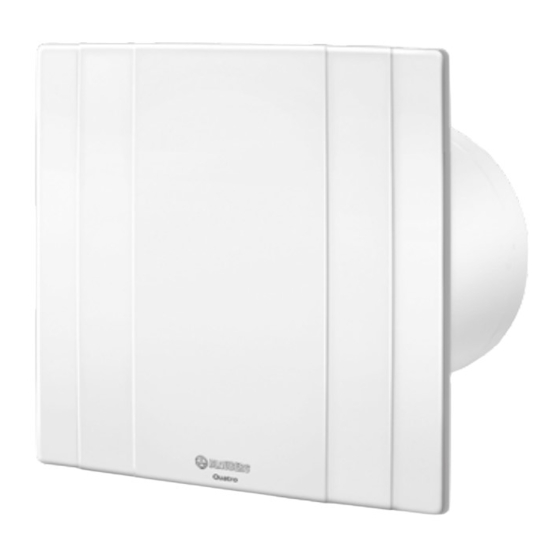

- Page 1 AXIAL WALL / CEILING FAN BLABQUATRO USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions.............................................. 4 Delivery set ................................................6 Brief description ..............................................6 Operation guidelines ............................................6 Installation and set-up............................................. 6 Technical maintenance ........................................... 7 Storage and transportation regulations ....................................7 Warranty ................................................... 8... - Page 3 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the BLABQUATRO unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
-
Page 4: Safety Instructions
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND TROUBLE-FREE OPERATION OF THE UNIT. SAFETY INSTRUCTIONS Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation and maintenance. - Page 5 burning equipment to prevent back drafting. Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous materials. • Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. • Do not close or block the intake or extract vents in order to ensure the efficient air flow. •...
-
Page 6: Delivery Set
DELIVERY SET - 1 pc. Screws with dowels - 4 pcs. User’s manual - 1 pc. Packing box - 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. It is designed for wall or ceiling mounting (Fig. -
Page 7: Technical Maintenance
TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 14). • Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 15). •... -
Page 8: Warranty
WARRANTY - This warranty is given by Blauberg Australasia Pty Ltd, with an office at U5, 45 Eastern Creek Drive, Eastern Creek, NSW 2766, Australia. Phone 1300 475 504 - From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a period of five... - Page 9 FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE OPERATION OF THE UNIT. USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.
- Page 10 Dimensions [mm] Weight Model [kg] 171 151 108 128 100 0.56 201 178 113 136 125 0.73 236 207 165 157 150...
- Page 13 BLABQUATRO 100/125/150 Fan does not run Contact of the switch is CLOSED BLABQUATRO 100/125/150 Fan runs Contact of the switch is OPEN...
- Page 15 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 16 BLABQUATRO www.blaubergventilation.com.au Blauberg_Australasia_B174EN-02 BLABQUATRO...
