- Page 1 AXIAL FAN Bravo USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Delivery set ................................................6 Brief description ..............................................6 Operation guidelines ............................................6 Designation key ..............................................7 Installation and set-up............................................. 8 Electronics operation algorithm ......................................8 Fan setup ................................................. 9 Technical maintenance ........................................... 10 Storage and transportation regulations ....................................10 Manufacturer’s warranty .......................................... - Page 3 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Bravo unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
- Page 4 FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND TROUBLE-FREE OPERATION OF THE UNIT. Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation and maintenance. The present user’s manual should be carefully read before beginning works.
- Page 5 than 3 mm. Check the unit for any visible damages of the impeller and the casing before starting installation. The casing internals must be free of any foreign objects that can damage the impeller blades. • While mounting the unit, avoid compression of the casing! Deformation of the casing may result in the motor jam and noisy operation.
- Page 6 • Do not close or block the intake or extract vents in order to ensure the efficient air flow. • Do not sit on the unit and do not put objects on it. • The unit is allowed to be used by children aged from 8 years old and above and persons with reduced physical, sensory, or mental capabilities or no experience and knowledge provided that they have been given supervision or instruction regarding safe use of the unit...
-
Page 7: Delivery Set

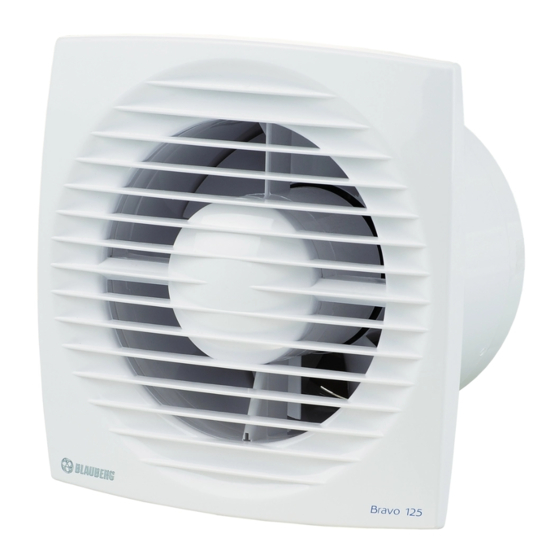

DELIVERY SET - 1 pc. Screws with dowels - 4 pcs. Plastic screwdriver - 1 pc. (only for the models with a timer) User’s manual - 1 pc. Packing box - 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. It is designed for wall or ceiling mounting (Fig. -
Page 8: Designation Key
DESIGNATION KEY Bravo Voltage: 12: motor with 12 V/50 Hz rated voltage Differences from the base model: e2: the motor is equipped with rolling bearings. without check valve Additional options: S: pull cord switch T: turn-off delay timer ST: turn-off delay timer and pull cord switch... -
Page 9: Installation And Set-Up
INSTALLATION AND SET-UP The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of matching diameter (Fig. 2). Fan installation sequence: step 1. Cut off power supply and make sure electricity has been turned off (Fig. 6). step 2. -
Page 10: Fan Setup
THE TIMER CIRCUIT IS LIVE. MAKE SURE THE FAN IS DISCONNECTED FROM POWER SUPPLY. FAN SETUP — to adjust the humidity set point, turn the control knob H clockwise to increase and counter-clockwise to decrease the humidity sensor set point, adjustable from 60 % up to 90 %. —... -
Page 11: Technical Maintenance
TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 18). • Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 19). •... -
Page 12: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 13 • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. •...
- Page 14 Dimensions [mm] Weight Model [kg] Bravo 100 150 122 102 100 0.56 Bravo 125 176 144 104 125 0.73 Bravo 150 205 174 124 150...
- Page 17 Fan does not run Contact of the S switch or the pull cord switch is CLOSED Fan runs Bravo 100/125/150 S Contact of the S switch or the pull cord switch is OPENED Bravo 100/125/150 T Fan does not run...
- Page 18 Bravo 100/125/150 H Bravo 100/125/150 SH Fan does not run Contact of the S switch or the pull cord switch is CLOSED Humidity exceeds set point Fan runs Contact of the S switch or the pull cord switch is OPENED...
- Page 19 Bravo100/125/150 IR Fan does not run Motion detected Fan runs No motion detected Activation of turn-off delay timer (2-30 minutes)
- Page 23 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 24 Still Bravo www.blaubergventilatoren.de B175EN-02 Bravo...
