Summary of Contents for BLAUBERG BLAUBOX ME Series

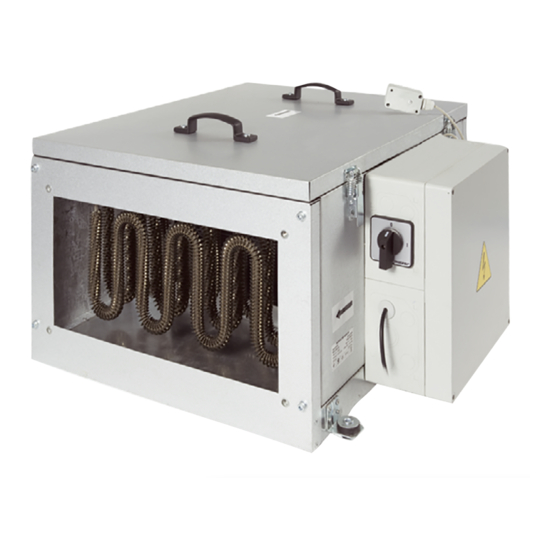

- Page 1 Air supply unit BlAuBOX ME USER’S MANUAL...
-
Page 2: Table Of Contents
BlAuBOX ME www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................6 Designation key ....................................6 Technical data ....................................7 Design and operating principle ............................8 Mounting and set-up .................................. 9 Connection to power mains ..............................10 Unit control ....................................... -
Page 3: Safety Requirements
BlAuBOX ME www.blaubergventilatoren.de SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. - Page 4 BlAuBOX ME www.blaubergventilatoren.de • Do not touch the unit controls • Do not wash the unit with with wet hands. water. • Do not carry out the • Protect the electric parts of the installation and maintenance unit against ingress of water. operations with wet hands.
-
Page 5: Purpose
BlAuBOX ME www.blaubergventilatoren.de PURPOSE The unit is intended for filtering, supplying and heating purified intake air in private homes, offices, hotels, cafés, conference halls and other residential and public spaces. The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens and other spaces with high humidity. -
Page 6: Delivery Set
BlAuBOX ME www.blaubergventilatoren.de DELIVERY SET NAME NUMBER Air handling unit 1 pc. Control panel (for models with automation) 1 pc. Duct temperature sensor 1 pc. 1 pc. User’s manual Packing box 1 pc. DESIGNATION KEY BLAUBOX M E XXXX - X.X Integrated automation system _: without automation PRO: with automation... -
Page 7: Technical Data
BlAuBOX ME www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for application with the ambient temperature ranging from +1 °C to +40 °C and relative humidity up to 80 %. In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above the dew point temperature of the transported air. -
Page 8: Design And Operating Principle
BlAuBOX ME www.blaubergventilatoren.de MAIN TECHNICAL PARAMETERS Number Maximum Voltage Heater Heater of electric Sound pressure Number Air flow Weight ambient air Model [V] at 50 power current heating power current level at 3 m of phases [min [kg] temperature [kW] elements distance [dBA] [°C]... -
Page 9: Mounting And Set-Up
BlAuBOX ME www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER’S MANUAL PRIOR TO MOUNTING THE UNIT. The unit should be mounted so that the arrow on the cover coincides with air flow direction in the system in order to provide access for maintenance, servicing or replacement work. -
Page 10: Connection To Power Mains
BlAuBOX ME www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. - Page 11 BlAuBOX ME www.blaubergventilatoren.de CONNECTION OF EXTERNAL DEVICES FOR BLAUBOX ME 800-2500 duct temperature sensor contacts X1:8, X1:9 signal leads from the automatic re-extinguishing system, contacts 1:17, 1:18 humidistat contacts X1:19, X1:20 control panel contacts 1:10, 1:11, 1:12, 1:13 CONTROL BOARD BLAUBOX ME 3200-3500 Control panel Duct...
- Page 12 BlAuBOX ME www.blaubergventilatoren.de GENERAL VIEW AND WIRING DIAGRAMS OF CONTROL UNITS AND EXTERNAL DEVICES BLAUBOX ME 800 Control unit Opto-triac control unit « » blue broun « » black « » yellow-green Heater Di erential pressure sensor « » « »...
- Page 13 BlAuBOX ME www.blaubergventilatoren.de BLAUBOX ME 2500 Opto-triac control unit « » blue Heater broun black « » « » yellow-green « » « » Di erential pressure sensor « » «RESET» « » Duct sensor t° « » Control panel Circuit «...
- Page 14 BlAuBOX ME www.blaubergventilatoren.de BLAUBOX ME 3200, BLAUBOX ME 3500...
- Page 15 BlAuBOX ME www.blaubergventilatoren.de BLAUBOX ME 3200 PRO, BLAUBOX ME 3500 PRO CONTROL UNIT Contacts for connecting a signal from an automatic Contacts for connecting a humidistat X5:3, X5:4 re extinguishing circuit X5:1, X5:2 Contacts for connecting an air damper X5:5, X5:6, X5:7 Damper actuator X5:5 (1) X5:6 (2)
- Page 16 BlAuBOX ME www.blaubergventilatoren.de BLAUBOX ME 800 PRO CONTROL UNIT...
- Page 17 BlAuBOX ME www.blaubergventilatoren.de BLAUBOX ME 1200-2500 PRO CONTROL UNIT...
- Page 18 BlAuBOX ME www.blaubergventilatoren.de X1 TERMINAL BLOCK OF BLAUBOX ME 800 PRO X1 TERMINAL BLOCK OF BLAUBOX ME 1200-2500 PRO CONTROL UNIT CONTROL UNIT Terminal Terminal Circuit External connection Circuit External connection marking marking Power supply ~ 230 V Power supply ~ 400 V Power supply ~ 230 V Power supply ~ 400 V РЕ...
-
Page 19: Unit Control
BlAuBOX ME www.blaubergventilatoren.de UNIT CONTROL The unit is controlled using a remote control panel. FUNCTIONAL CAPABILITIES The system allows you to control the performance of the supply fan and has 3 speed levels: • 1 – minimal ventilation, used on weekends and holidays in non-residential premises or at night in residential premises •... -
Page 20: Manufacturer's Warranty
BlAuBOX ME www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 21: Certificate Of Acceptance
BlAuBOX ME www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air supply unit Model BLAUBOX ME__________________________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 22 BlAuBOX ME www.blaubergventilatoren.de...
- Page 23 BlAuBOX ME www.blaubergventilatoren.de...
- Page 24 www.blaubergventilatoren.de B27EN-04...
