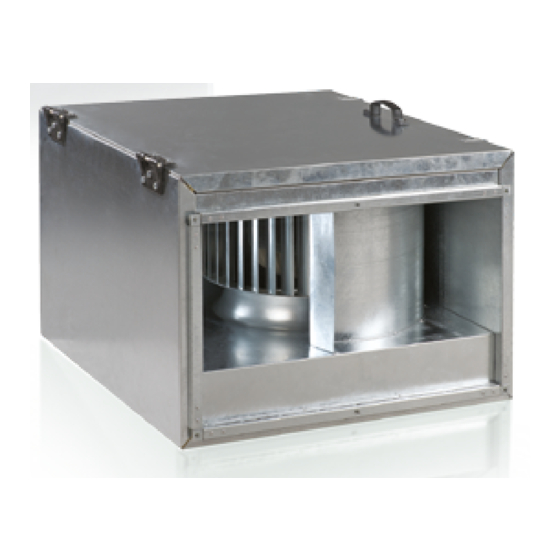

Inline rectangular fans
Hide thumbs
Table of Contents

Advertisement

Quick Links

InlIne rectangular fans
Box
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Box Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Box Series

Summary of Contents for BLAUBERG Box Series

  • Page 1 InlIne rectangular fans USER’S MANUAL...

  • Page 2: Table Of Contents

    www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Mounting and set-up .................................. 14 Connection to power mains ..............................15 Technical maintenance ................................23 Troubleshooting ..................................... 25 Storage and transportation regulations .......................... 25 Manufacturer’s warranty ................................

  • Page 3: Safety Requirements

    www.blaubergventilatoren.de SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit.
  • Page 4 www.blaubergventilatoren.de • Do not touch the unit controls • Do not wash the unit with with wet hands. water. • Do not carry out the • Protect the electric parts of the installation and maintenance unit against ingress of water. operations with wet hands.

  • Page 5: Purpose

    www.blaubergventilatoren.de PURPOSE Inline rectangular fans are intended for supply and exhaust ventilation of residential, public and industrial premises (production and storage facilities, sport halls, water pools, large auditoriums, conference halls, etc.). The fans are designed for mounting into rectangular ducts. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING.

  • Page 6: Technical Data

    www.blaubergventilatoren.de TECHNICAL DATA BOX-F / BOX-FI Box-F / Box-F / Box-F / Box-F / Box-F / Box- Box-FI Box-FI Box-FI Box-FI FI 40x20 4D 40x20 4E 50x25 4E 50x25 4D 50x25 6E Voltage [V/50 Hz] 1~230 3~400 1~230 3~400 1~230 Power [W] Current [A] 1.32...
  • Page 7 www.blaubergventilatoren.de Box-F / Box-F / Box-F / Box-F / Box-FI Box-FI Box-FI Box-FI 60x35 4D 60x35 6E 60x35 6D 70x40 4D Voltage [V/50 Hz] 3~400 1~230 3~400 3~400 Power [W] 2460 3630 Current [A] 3.93 1.47 6.00 Max. air capacity [m 5020 2755 3310...
  • Page 8 www.blaubergventilatoren.de FAN OVERALL DIMENSIONS: Box-F Box-FI Dimensions [mm] Weight Type [kg] Box-F 40x20 4E 17.5 Box-F 40x20 4D 17.5 Box-F 50x25 4E Box-F 50x25 4D Box-F 50x25 6E Box-F 50x25 6D Box-F 50x30 4E Box-F 50x30 4D Box-F 50x30 6E Box-F 50x30 6D Box-F 60x30 4E Box-F 60x30 4D...
  • Page 9 www.blaubergventilatoren.de Dimensions [mm] Weight Type [kg] Box-FI 40x20 4E Box-FI 40x20 4D Box-FI 50x25 4E 40.5 Box-FI 50x25 4D 40.5 Box-FI 50x25 6E 40.5 Box-FI 50x25 6D 40.5 Box-FI 50x30 4E 52.5 Box-FI 50x30 4D 52.5 Box-FI 50x30 6E 52.5 Box-FI 50x30 6D 52.5 Box-FI 60x30 4E...
  • Page 10 www.blaubergventilatoren.de BOX EC Box EC Box EC Box EC Box EC Box EC Box EC 60x30 60x35 70x40 80x50 90x50 100x50 Voltage [V/50/60 Hz] 1~200-277 3~380-480 3~380-480 3~380-480 3~380-480 3~380-480 Power [kW] 0.48 0.99 1.70 2.95 2.98 2.98 Current [A] 3.10 1.70 2.60...
  • Page 11 www.blaubergventilatoren.de BOX-I EC Box-I Box-I Box-I Box-I Box-I Box-I EC 60x30 EC 60x35 EC 70x40 EC 80x50 EC 90x50 EC 100x50 Voltage [V/50/60 Hz] 1~200-277 3~380-480 3~380-480 3~380-480 3~380-480 3~380-480 Power [kW] 0.48 0.99 1.70 2.95 2.98 2.98 Current [A] 3.10 1.70 2.60...
  • Page 12 www.blaubergventilatoren.de BOX / BOX-I Box / Box-I Box / Box-I 50x25 Box / Box-I Box / Box-I 40x20 2E 50x30 4E 50x30 4D Voltage [V] 1~220-240 1~220-240 1~220-240 3~400 Frequency [Hz] Power [W] Current [A] 0.60 0.88 1.32 1.65 0.57 0.53 0.34 0.53...
  • Page 13 www.blaubergventilatoren.de FAN OVERALL DIMENSIONS: Box 100x50 4D Box-I Dimensions [mm] Weight Type [kg] Box 40x20 2E 11.25 Box 50x25 2E 17.88 Box 50x30 4E 19.80 Box 50x30 4D 19.80 Box 60x30 4E 27.77 Box 60x30 4D 27.77 Box 60x35 4E 36.38 Box 60x35 4D 36.38...

  • Page 14: Mounting And Set-Up

    www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. The fan is designed for mounting and operation in any position. In case of ceiling mounting the fan is recommended to be mounted with the motor cover downwards to facilitate access to the terminal box. Check the fan power cables for integrity and make sure the impeller has smooth rotation prior to mounting.

  • Page 15: Connection To Power Mains

    www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 16 www.blaubergventilatoren.de THE RECOMMENDED RATED CURRENT OF THE AUTOMATIC CIRCUIT BREAKER AND THE WIRE CROSS SECTION Recommended cable, n x S, Fan type Automatic circuit breaker current [A] where n means number of wires, S means cross section [mm Box, Box-I 40x20 2E 3x0.75 Box, Box-I 50x25 2E 3x0.75...
  • Page 17 www.blaubergventilatoren.de ~400 V 50/60 Hz ~230 V 50/60 Hz ~400 V Wiring diagram of the fan Wiring diagram of the fan 50/60 Hz ~230 V Box / Box-I 40x20 2E; Box / Box-I 50x25 2E; Box / Box-I 50x30 4D (first option) with a three-phase motor to the 50/60 Hz Box / Box-I 50x30 4E;...
  • Page 18 www.blaubergventilatoren.de ~230 V WIRING DIAGRAM OF THE FANS BOX-F, BOX-FI WITH A SINGLE-PHASE MOTOR TO THE ALTERNATING CURRENT POWER 50 Hz SUPPLY ~230 V РЕ 50 Hz РЕ WIRING DIAGRAM OF THE FANS BOX-F, BOX-FI WITH A THREE-PHASE MOTOR TO THE ALTERNATING CURRENT POWER SUPPLY ~400 V 50 Hz...
  • Page 19 Connection Colour Purpose / Function Contact www.blaubergventilatoren.de Power supply 50/60 Hz, phase Black Blue Power supply 50/60 Hz, zero Green/Yellow Ground cable WIRING DIAGRAM OF THE FANS BOX EC 60X30, BOX-I EC 60X30 Fault relay, normally closed White 1 contact Cable 1 Cable 2 Fault relay, COMMON...
  • Page 20 www.blaubergventilatoren.de WIRING DIAGRAM FOR THE FANS BOX EC 70X40, BOX-I EC 70X40 Terminal Connection Purpose / Function Terminal Connection Purpose / Function Terminal Connection Purpose / Function Terminal Connection Purpose / Function Digital input 1 (electronics unblocking/blocking) Net, L3 Net, L3 Digital input 1 (electronics unblocking/blocking) Unblocking: Pin is opened or set voltage 5…50 V Net, L2...
  • Page 21 ~230 V 50/60 Hz www.blaubergventilatoren.de RECOMMENDED WIRING DIAGRAM FOR CONNECTION OF THE SINGLE-PHASE MOTOR WITH OVERHEATING PROTECTION KM 1 KM 1 TW 1 “ON” TW 2 ~230 V 50/60 Hz “OFF” TW 1 “ON” TW 2 “OFF” RECOMMENDED WIRING DIAGRAM FOR CONNECTION OF THE THREE-PHASE MOTOR WITH OVERHEATING PROTECTION ~400 V 50/60 Hz...
  • Page 22 www.blaubergventilatoren.de BOX, BOX-I, BOX-F, BOX-FI 40X20, 50X25, 50X30, 60X30, 60X35 BOX-F, BOX-FI 70X40, 80X50, 90X50, 100X50, BOX EC 60X30, BOX-I EC 60X30, BOX 100X50...

  • Page 23: Technical Maintenance

    www.blaubergventilatoren.de BOX EC 60X35, BOX EC 70X40, BOX EC 80X50, BOX EC 90X50, BOX EC 100X50, BOX-I EC 60X35, BOX-I EC 70X40, BOX-I EC 80X50, BOX-I EC 90X50, BOX-I EC 100X50 TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Disconnect the fan from power mains and make sure the rotating parts do not move prior to any maintenance and repair operations.
  • Page 24 www.blaubergventilatoren.de...

  • Page 25: Troubleshooting

    www.blaubergventilatoren.de TROUBLESHOOTING TROUBLE POSSIBLE REASONS TROUBLESHOOTING Check the electric connections and the operation status of No power supply. the circuit breaker. The fan does not get started. Turn the fan off. Troubleshoot clogging of the impeller. Motor jam. Restart the fan. Automatic circuit breaker...

  • Page 26: Manufacturer's Warranty

    www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.

  • Page 27: Certificate Of Acceptance

    www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Inline rectangular fans Model Box_____________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 28 www.blaubergventilatoren.de B07EN-03...
