Adjustments
5.2

Accessories: height adjustable support

When using the device in "batch operation", for gripping of single stone slabs batched one upon the other,
we advise to use the accessories "height adjustable support"!
This way the inside height stays the same for gripping goods with the same dimensions, see Fig.
When gripping in batch operation, only the uppermost stone slab may be gripped at any
time.
Caution while adjusting of the gripping range. There is danger of injuring the hands!
Use safety gloves.
•

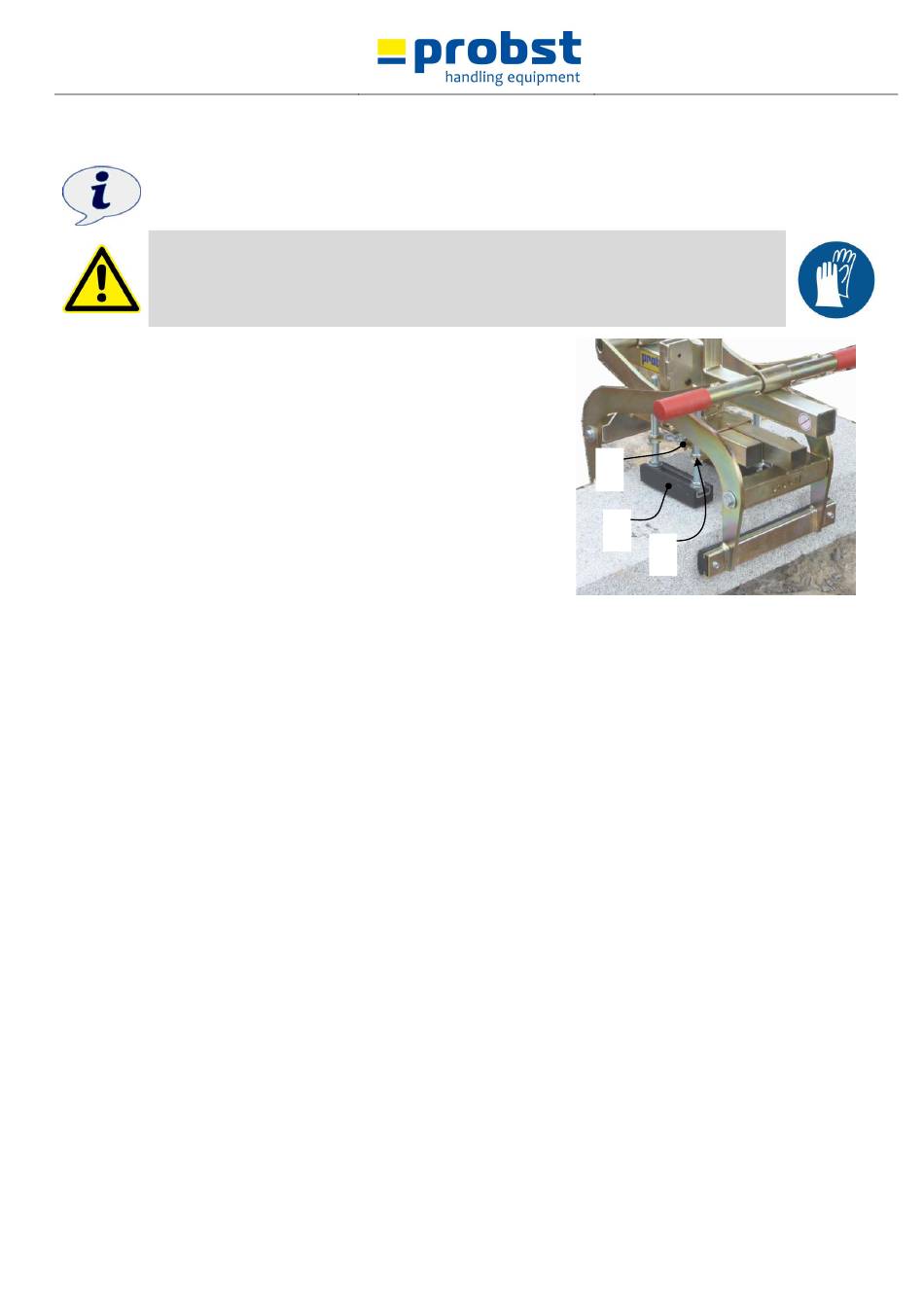

The height adjustable support (A) is attached to the mounting
plate (B), see Fig.
•
Adjust the height adjustable support (A) with the adjusting
screws (C), so both halves have the same height and that the
rubber gripper bars are positioned in the middle to lower area of
stone thickness, see Fig.
5310.0364
B
A
V3
C
