probst TAS-UNI Translation Of Original Operating Instructions

Teleskopic screeding system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Teleskopic Screeding System TAS-UNI
TAS-UNI
V5
51000042/43
Teleskopic Screeding System TAS-UNI
Translation of original operating instructions
TAS-UNI
GB
5100.0042+43
V4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAS-UNI and is the answer not in the manual?

Questions and answers

Related Manuals for probst TAS-UNI

Summary of Contents for probst TAS-UNI

  • Page 1 Teleskopic Screeding System TAS-UNI TAS-UNI 51000042/43 Teleskopic Screeding System TAS-UNI Translation of original operating instructions TAS-UNI 5100.0042+43...
  • Page 2 Bitte beachten Sie, dass das Produkt ohne vorliegende Betriebsanleitung in Landessprache nicht eingesetzt / in Betrieb gesetzt werden darf. Sollten Sie mit der Lieferung des Produkts keine Betriebsanleitung in Ihrer Landessprache erhalten haben, kontaktieren Sie uns bitte. In Länder der EU / EFTA senden wir Ihnen diese kostenlos nach.

  • Page 3: Table Of Contents

    Manual Pulling ............................. 14 5.1.2 Machine Pulling ............................15 Maintenance and care ............................16 Maintenance ..............................16 Repairs ................................17 Safety procedures ............................17 Hints to the identification plate ........................18 Hints to the renting/leasing of PROBST devices ................... 18...

  • Page 4: Authorized Use

    TAS-UNI 3 / 18 Authorized use The device TAS-UNI is universally suitable for precise and flexible screeding of laying courses on both, large and small building sites. In one run a clean and exact screed can be produced. ● For the manual: 2 commercial shovels can be hooked in for pulling the device.

  • Page 5: Survey And Construction

    Crank for level adjustment Skleeve for shovel Step board (which the operator can stand to increase the pressure to the ground when using the TAS-UNI mechanically.) Roller unit Suspension lug for pulling chain (when using the TAS-UNI Screeding rail cleaning mechanically)

  • Page 6: Safety

    12/06/18 Safety TAS-UNI 5 / 18 Safety Safety symbols Danger to life! Identifies imminent hazard. If you do not avoid the hazard, death or severe injury will result. Danger Hazardous situation! Identifies a potentially hazardous situation. If you do not avoid the situation, injury or damage to property can result.

  • Page 7: Personal Safety Requirements

    12/06/18 Safety TAS-UNI 6 / 18 Personal safety requirements ● ● Only qualified, authorized certificated Each operator must have read and personal is allowed to operate the device understood the operating instructions. !111 and all devices which are connected (lifting ●...

  • Page 8: Safety Procedures

    12/06/18 Installation and Operation TAS-UNI 7 / 18 Safety procedures 3.8.1 General ● ● The operator (of the excavator/wheel Do not use the device to jerk seized loader) must have always the device in products. Danger range of vision. Prohibition...

  • Page 9: Adjustable Adapter For Roof-/Pan Profile

    Installation and Operation 12/06/18 TAS-UNI 8 / 18 4.1.1 Adjustable Adapter for Roof-/Pan Profile ● With the adjustable adapter TAS-DP (2000 mm) any roof or pan profile can be adjusted (+/- 4 % with scale) to prepare any roof or pan profiles.
  • Page 10 12/06/18 Installation and Operation TAS-UNI 9 / 18 Meassure the outer dimension at the TAS-DP (1) with a qualified measuring tool (6) e.g. yard stick (or slide gauge). These measure must be equal at the front side and back side (see ).  Figure 4 and Figure 5.

  • Page 11: Adjustment Pan Profile

    Installation and Operation 12/06/18 TAS-UNI 10 / 18 4.1.3 Adjustment pan profile Loosen both nuts (2) on the inner side at the TAS-DP.  Figure 7 Adjust the slope (e.g. 1%) with the both nuts (3) on the inner side at the TAS-DP.  Figure 8 Slope (e.g.
  • Page 12 12/06/18 Installation and Operation TAS-UNI 11 / 18 Figure B (pan profil) Remessure the actual slope at facing bedding sand Referenz plane Also a pan profile with different lengths of Figure B1 aluminium profiles is preparable.  see Figure B1...

  • Page 13: Adjustment Of Roller Unit (Kerbstone)

    12/06/18 Installation and Operation TAS-UNI 12 / 18 Adjustment of roller unit (kerbstone) The working height of the device (TAS-UNI) can be adjusted with the spindle (1). ● Place the roller unit on the kerbstone. ● Release the eyebolt (2).

  • Page 14: Adjustment Of Roller Unit (Alu-Profile)

    12/06/18 Installation and Operation TAS-UNI 13 / 18 Adjustment of roller unit (Alu-Profile) The working height of the device (TAS-UNI) can be adjusted with the spindle (1). ● Place the alu-profile direct on the facing bedding sand (see fig.4). ●...

  • Page 15: Operation

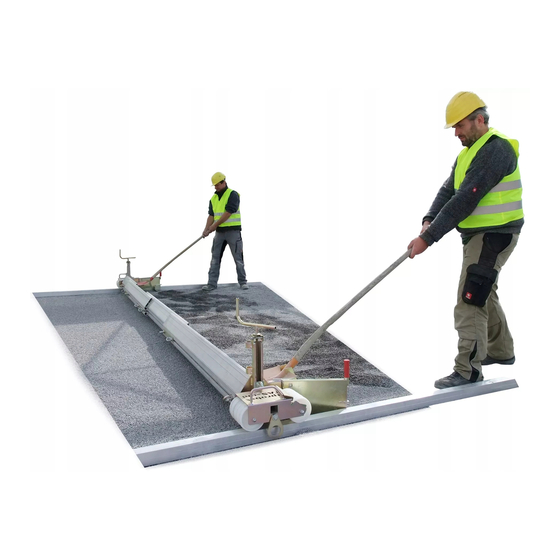

    TAS-UNI 14 / 18 Operation General The making of a facing bedding sand with the device (TAS-UNI) can take place either via manual pulling (2-man operation) or by machine pulling (wheeled loader) 5.1.1 Manual Pulling Fit 2 commercial shovels into the hooh-in-system of shovel (1) for pulling the device (TAS-UNI).

  • Page 16: Machine Pulling

    12/06/18 Operation TAS-UNI 15 / 18 5.1.2 Machine Pulling Fig. 6 Fit 2 pulling chains into eyebolt (2) to pull the device by machine. Fasten the ends of the pulling chains on the wheel loader/excavator (near hook-in-system of shovel) Step board (3) above the roller unit increase the pressure to the ground (Operator can place a foot on it).

  • Page 17: Maintenance And Care

    12/06/18 Maintenance and care TAS-UNI 16 / 18 Maintenance and care Maintenance To ensure the correct function, safety and service life of the device the following points must be executed in the maintenance interval. Used only original spare parts, otherwise the warranty expires.

  • Page 18: Repairs

    Maintenance and care 12/06/18 TAS-UNI 17 / 18 Repairs ● ● Only persons with the appropriate knowledge and Before the device is used again, it has to be checked ability are allowed to repair the device by an expert. For all repairs the device must be completely shut down!

  • Page 19: Hints To The Identification Plate

    Example: Hints to the renting/leasing of PROBST devices With every renting/leasing of PROBST devices the original operating instructions must be included unconditionally (in deviation of the users country's language, the respective translations of the original operating instructions must be delivered additionally)!
  • Page 20 After each completed performance of a maintenance interval the included form must be fill out, stamped, signed and send back to us immediately 1) via e-mail to service@probst-handling.com / via fax or post Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 21 Max. width 4500 mm Eigengewicht komplett nur ca. / Total dead Weight only: kg / Gesamtbreite max. / Maximum width: 4500 mm Product Name: TAS-UNI-450 Telescopic Screeding System © all rights reserved conform to ISO 16016 Datum Name Benennung SET Teleskop-Abziehsystem Erst.
  • Page 22 1500 Abziehbreite 3000 mm min Dchprofil DP 41000173 ca. 2120 2065 Abziehbreite 4130 mm max Bei Änderungen Rücksprache TB ! Gewicht: 112,5 kg Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! Benennung Datum Name System_TAS-Uni-DP-2x1240 Erst. 17.6.2011 Perumal.Hurth Gepr.
  • Page 23 2959,33 Abziehbreite 3000 mm min. Dchprofil DP sonder ca. 2120 3465,28 Bei Änderungen Rücksprache TB ! Gewicht: 119,7 kg Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! Benennung Datum Name System_TAS-Uni-3xDP-560 Erst. 22.6.2011 Perumal.Hurth Gepr. Blatt Artikelnummer/Zeichnungsnummer System_TAS-Uni-3xDP-560 Kunde: Urspr.
  • Page 24 Liste see separate list 41000161 41000260 © all rights reserved conform to ISO 16016 Datum Name Benennung SET Teleskop-Abziehsystem Erst. 12.4.2012 Perumal.Hurth TAS-UNI-450 Gepr. 5.2.2013 Joerg.Werner Breite max. 4500 mm Artikelnummer/Zeichnungsnummer Blatt E51000042 Zust. Urspr. Ers. f. Ers. d.
  • Page 25 41000158 41000260 41000160 41000162 © all rights reserved conform to ISO 16016 Datum Name Benennung SET-Teleskop-Abziehsystem Erst. 28.10.2013 Alexander.Renger Gepr. TAS-uni 600, 5.11.2013 Ralf.Hoffmann Breite max. 6000 mm Artikelnummer/Zeichnungsnummer Blatt E51000043 Zust. Urspr. Ers. f. Ers. d.
  • Page 26 41000157 20110001 41000148 41000260 20110001 41000147 © all rights reserved conform to ISO 16016 Datum Name Benennung TAS-UNI 450 Montage-, Anbauteile Erst. 24.1.2017 R.Seidel 41000260 Gepr. 24.1.2017 R.Seidel Artikelnummer/Zeichnungsnummer Blatt E41000325 Zust. Urspr. Ers. f. Ers. d.
  • Page 27 41000147 20110001 41000148 © all rights reserved conform to ISO 16016 Datum Name Benennung TAS-Uni Klemmverstellung mit Klemm- Erst. 10.1.2014 Ralf.Hoffmann Gepr. schiene, Abst. 300, Bolzenhöhe 37 24.1.2017 R.Seidel Artikelnummer/Zeichnungsnummer Blatt E41000157 Zust. Urspr. Ers. f. Ers. d.
  • Page 28 © all rights reserved conform to ISO 16016 41000255 Datum Name Benennung siehe separate Liste Seitenteil (R/L) kompl. mit Rollen Erst. 25.1.2017 R.Seidel see separate list Gepr. 25.1.2017 R.Seidel für TAS-Uni-2011 Artikelnummer/Zeichnungsnummer Blatt E41000256 Zust. Urspr. Ers. f. Ers. d.
  • Page 29 20100027 41000253 33700060 20080011 20110003 20000071 41000251 20100006 © all rights reserved conform to ISO 16016 Datum Name Benennung Seitenteil rechts mit Rollen kompl. Erst. 14.2.2012 Perumal.Hurth TAS-Uni-2011 Gepr. 25.1.2017 R.Seidel Artikelnummer/Zeichnungsnummer Blatt E41000254 Zust. Urspr. Ers. f. Ers. d.
  • Page 30 21600005 33700715 20000126 20440003 20440003 20100014 33700664 © all rights reserved conform to ISO 16016 Datum Name Benennung Klappe rechts Erst. 14.2.2012 Perumal.Hurth kompl. TAS-uni-2011 Gepr. Artikelnummer/Zeichnungsnummer Blatt E41000250 Zust. Urspr. 41000052 Ers. f. Ers. d.
  • Page 31 © all rights reserved conform to ISO 16016 20550001 siehe separate Liste see separate list Datum Name Benennung Seitenteil links mit Rollen kompl. für Erst. 13.2.2012 Perumal.Hurth TAS-uni-2011 Gepr. 5.2.2013 Joerg.Werner Artikelnummer/Zeichnungsnummer Blatt E41000255 Zust. Urspr. Ers. f. Ers. d.
  • Page 32 21600005-neu 20000126 20440003 33700664 20440003 20100014 © all rights reserved conform to ISO 16016 Datum Name Benennung Klappe links kompl. Erst. 14.2.2012 Perumal.Hurth TAS-uni-2011 Gepr. 13.9.2013 Joerg.Werner Artikelnummer/Zeichnungsnummer Blatt E41000249 Zust. Urspr. 41000069 Ers. f. Ers. d.
  • Page 33 A51000042+43 TAS-UNI-450+600 29040220 Auch auf der rechten Klappe/ also on the right flap 29040666 29040056 P 09.10.2017_V2 1 / 1 Einige der Abbildungen sind möglicherweise optionales Zubehör des Gerätes/Some of pictures may be optional equipment of the device.
