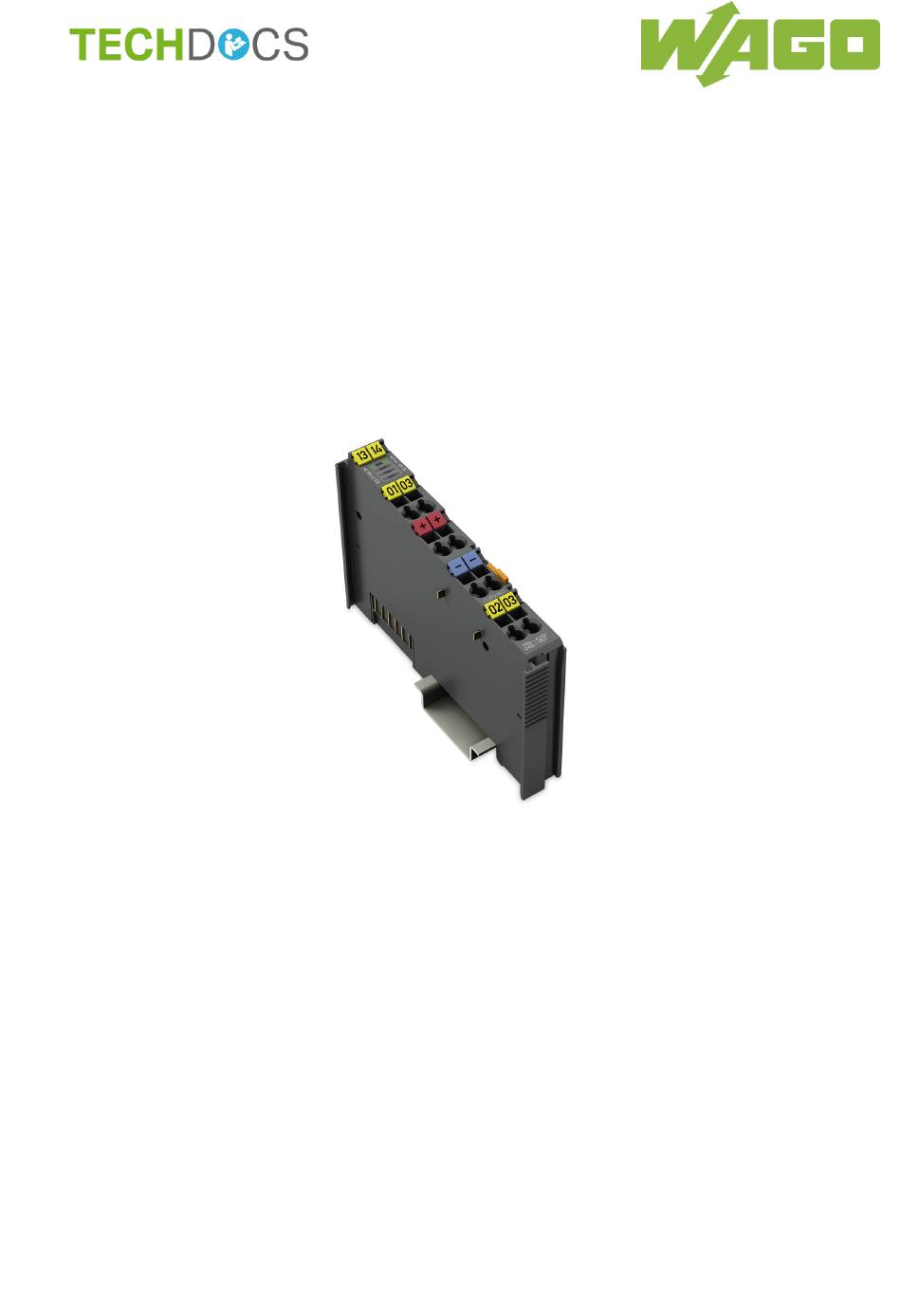

- Page 1 Manual WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR 2-Channel Digital Input; 60 V DC; 3 ms; Extreme Version 1.2.0...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Manual Version 1.2.0...
-
Page 3: Table Of Contents
WAGO-I/O-SYSTEM 750 XTR Table of Contents 750-429/040-001 2DI 60V DC 3ms XTR Table of Contents Notes about this Documentation ............. 5 Validity of this Documentation..............5 Copyright ....................5 Symbols ....................6 Number Notation ..................7 Font Conventions ................... 7 Important Notes .................. - Page 4 Table of Contents WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Connect Devices ..................35 ® Connecting a Conductor to the CAGE CLAMP ........35 Connection Examples ................36 6.2.1 2 Channels, High-side Switching ............36 6.2.2 2 Channels, Low-side Switching ............36 6.2.3...
-
Page 5: Notes About This Documentation
(2DI 60V DC 3ms XTR). The I/O module 750-429/040-001 shall only be installed and operated according to the instructions in this manual, in the system description for the WAGO-I/O- SYSTEM 750 XTR and in the manual for the used fieldbus coupler/controller. -
Page 6: Symbols
Notes about this Documentation WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 7: Number Notation
WAGO-I/O-SYSTEM 750 XTR Notes about this Documentation 750-429/040-001 2DI 60V DC 3ms XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Number Notation Table 1: Number Notation Number Code Example... -
Page 8: Important Notes
2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents. -
Page 9: Technical Condition Of Specified Devices
These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •... -
Page 10: 2.1.4.1.2 Packaging
Important Notes WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR • Observe national and local regulations for the disposal of electrical and electronic equipment. • Clear any data stored on the electrical and electronic equipment. • Remove any added battery or memory card in the electrical and electronic equipment. -
Page 11: Safety Advice (Precautions)
WAGO-I/O-SYSTEM 750 XTR Important Notes 750-429/040-001 2DI 60V DC 3ms XTR Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on devices while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work. - Page 12 Important Notes WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Only connect or disconnect lines when power is safely isolated! The lines to the device can carry hazardous voltages and currents. Contact with the lines when live can result in severe injury or death. Therefore, read and observe the following safety rules before you perform work on the device: Disconnect the respective system component from the power supply.
- Page 13 WAGO-I/O-SYSTEM 750 XTR Important Notes 750-429/040-001 2DI 60V DC 3ms XTR Do not use any contact spray! Do not use any contact spray. The spray may impair contact area functionality in connection with contamination. Do not reverse the polarity of connection lines! Avoid reverse polarity of data and power supply lines, as this may damage the devices involved.
-
Page 14: Device Description
The meaning of the LEDs is described in the “Display Elements” section. Only connect to I/O modules with the same field power supply! The I/O module 750-429/040-001 requires a field supply not equal to 24 VDC. Therefore, this I/O module 750-429/040-001 shall only be connected to modules having the same field power supply. - Page 15 750-429/040-001 or before I/O modules 750-429/040-001 arranged in blocks! The I/O module 750-429/040-001 receives the 60 VDC power supply and the 0 V potential for the field level from an upstream I/O module via the power jumper contacts designed as blade contacts and makes the potential available to subsequent I/O modules via power jumper contacts designed as spring contacts.
-
Page 16: View
Device Description WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR View Figure 1: View Table 3: Legend for Figure “View” Pos. Description Details See Section Marking possibility with Mini- Status LEDs “Device Description” > “Display Elements” Data contacts “Device Description” > “Connectors”... -
Page 17: Connectors
WAGO-I/O-SYSTEM 750 XTR Device Description 750-429/040-001 2DI 60V DC 3ms XTR Connectors 3.2.1 Data Contacts/Local Bus Communication between the fieldbus coupler/controller and the I/O modules as well as the system supply of the I/O modules is carried out via the local bus. The contacting for the local bus consists of 6 data contacts, which are available as self-cleaning gold spring contacts. -
Page 18: Power Jumper Contacts/Field Supply
The blade contacts are sharp-edged. Handle the I/O module carefully to prevent injury. Do not touch the blade contacts. The I/O module 750-429/040-001 has 2 self-cleaning power jumper contacts that supply and transmit power for the field side. The contacts on the left side of the I/O module are designed as blade contacts and those on the right side as spring contacts. -
Page 19: Cage Clamp ® Connectors
WAGO-I/O-SYSTEM 750 XTR Device Description 750-429/040-001 2DI 60V DC 3ms XTR Use supply modules for ground (earth)! The I/O module has no power jumper contacts for receiving and transmitting the earth potential. Use a supply module when an earth potential is needed for the subsequent I/O modules. -
Page 20: Display Elements
Input DI 1: Signal voltage “0” Status DI 1 Green Input DI 1: Signal voltage “1“ Input DI 2: Signal voltage “0“ Status DI 2 Green Input DI 2: Signal voltage “1“ Operating Elements The I/O module 750-429/040-001 has no operating elements. Manual Version 1.2.0... -
Page 21: Schematic Diagram
WAGO-I/O-SYSTEM 750 XTR Device Description 750-429/040-001 2DI 60V DC 3ms XTR Schematic Diagram Figure 6: Schematic Diagram Manual Version 1.2.0... -
Page 22: Technical Data
Device Description WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Technical Data 3.6.1 Device Data Table 7: Technical Data – Device Width 12 mm Height (from upper edge of DIN-rail) 60.6 mm Depth 100 mm Weight 48 g Degree of protection IP20 3.6.2... -
Page 23: Connection Type
WAGO-I/O-SYSTEM 750 XTR Device Description 750-429/040-001 2DI 60V DC 3ms XTR 3.6.5 Connection Type Table 11: Technical Data – Field Wiring ® Wire connection CAGE CLAMP Cross section 0.25 mm² … 2.5 mm² / AWG 24 … 14 Stripped lengths 8 mm …... -
Page 24: Approvals
Approvals More information about approvals. Detailed references to the approvals are listed in the document “Overview Approvals WAGO-I/O-SYSTEM 750”, which you can find via the internet under: www.wago.com DOWNLOADS Documentation System Description. The following approval has been granted to 750-429/040-001 I/O modules:... -
Page 25: Standards And Guidelines
WAGO-I/O-SYSTEM 750 XTR Device Description 750-429/040-001 2DI 60V DC 3ms XTR Standards and Guidelines 750-429/040-001 I/O modules meet the following standards and guidelines: Table 16: Standards and Rated Conditions for Explosion Protection Applications ATEX acc. Directive 2014/34/EU General Requirements EN 60079-0:2012 + A11:2013... -
Page 26: Table 17: Climatic And Mechanical Environmental Conditions And
Device Description WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Table 17: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2 EN 60721-3-1 EN 60721-3-3... -
Page 27: Table 18: Emc - Immunity To Interference
WAGO-I/O-SYSTEM 750 XTR Device Description 750-429/040-001 2DI 60V DC 3ms XTR The I/O module 750-429/040-001 meets the following EMC standards as these standards relate to the I/O module: Table 18: EMC – Immunity to Interference Standard Test Value Electrostatic Discharge •... - Page 28 Device Description WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Table 18: EMC – Immunity to Interference Standard Test Value Line Frequency Disturbances • EN 60255-26 Class A (150 V conductor/conductor / 300 V conductor/ground) Alternating Components of the Voltage to DC Line Connections •...
-
Page 29: Table 19: Emc - Emission Of Interference
WAGO-I/O-SYSTEM 750 XTR Device Description 750-429/040-001 2DI 60V DC 3ms XTR Table 19: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz • EN 55032 Class B 37 dB(µV/m), QP, 230 MHz …... -
Page 30: Table 20: Standards And Rated Conditions For Rail Applications (En 50155)
EN 50121-3-2 5.5 EMC (Emission of Interference, EN 50121-3-2 Immunity to Interference) EN 50121-4 EN 50121-5 9.11 Materials (Fire Protection) EN 45545-2 Hazard level HL3 WAGO is a company certified in accordance with the IRIS quality standard. Manual Version 1.2.0... -
Page 31: Process Image
WAGO-I/O-SYSTEM 750 XTR Process Image 750-429/040-001 2DI 60V DC 3ms XTR Process Image Mapping of process data in the process image of fieldbus systems The representation of the process data of some I/O modules or their variations in the process image depends on the fieldbus coupler/controller used. Please take this information from the section “I/O Modules”... -
Page 32: Mounting
750-429/040-001 2DI 60V DC 3ms XTR Mounting Mounting Sequence Fieldbus couplers, controllers and I/O modules of the WAGO-I/O-SYSTEM 750 are snapped directly on a carrier rail in accordance with the European standard EN 60175 (DIN 35). The reliable positioning and connection is made using a tongue and groove system. -
Page 33: Inserting And Removing Devices
WAGO-I/O-SYSTEM 750 XTR Mounting 750-429/040-001 2DI 60V DC 3ms XTR Inserting and Removing Devices Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it. -
Page 34: Removing The I/O Module
Mounting WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Figure 8: Snap the I/O Module into Place (Example) With the I/O module snapped in place, the electrical connections for the data contacts and power jumper contacts (if any) to the fieldbus coupler/controller or to the previous or possibly subsequent I/O module are established. -
Page 35: Connect Devices
Only one conductor may be connected to each CAGE CLAMP Do not connect more than one conductor at one single connection! If more than one conductor must be routed to one connection, these must be connected in an up-circuit wiring assembly, for example using WAGO feed- through terminals. ®... -
Page 36: Connection Examples
Connect Devices WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Connection Examples 6.2.1 2 Channels, High-side Switching Figure 11: Connecting Diagram –2 Channels, High-side Switching 6.2.2 2 Channels, Low-side Switching Figure 12: Connecting Diagram –2 Channels, Low-side Switching Manual... -
Page 37: Channel High-Side Switching, 1 Channel Low-Side Switching
WAGO-I/O-SYSTEM 750 XTR Connect Devices 750-429/040-001 2DI 60V DC 3ms XTR 6.2.3 1 Channel High-side Switching, 1 Channel Low-side Switching Figure 13: Connecting Diagram – 1 Channel High-side Switching, 1 Channel Low-side Switching Manual Version 1.2.0... -
Page 38: Use In Hazardous Environments
WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Use in Hazardous Environments The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations. The following sections include both the general identification of components (devices) and the installation regulations to be observed. -
Page 39: Marking Configuration Examples
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-429/040-001 2DI 60V DC 3ms XTR Marking Configuration Examples 7.1.1 Marking for Europe According to ATEX and IECEx Figure 14: Marking Example According to ATEX and IECEx Figure 15: Text Detail – Marking Example According to ATEX and IECEx Manual Version 1.2.0... -
Page 40: Table 22: Description Of Marking Example According To Atex And Iecex
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Table 22: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X... -
Page 41: Figure 16: Marking Example For Approved Ex I I/O Module According To
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-429/040-001 2DI 60V DC 3ms XTR Figure 16: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 17: Text Detail – Marking Example for Approved Ex i I/O Module According to ATEX and... -
Page 42: Table 23: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Table 23: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp. certificate numbers... -
Page 43: Marking For The United States Of America (Nec) And Canada (Cec)
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-429/040-001 2DI 60V DC 3ms XTR 7.1.2 Marking for the United States of America (NEC) and Canada (CEC) Figure 18: Marking Example According to NEC Figure 19: Text Detail – Marking Example According to NEC 500... -
Page 44: Figure 20: Text Detail - Marking Example For Approved Ex I I/O Module
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Figure 20: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505 Table 25: Description of Marking Example for Approved Ex i I/O Module According to NEC 505... -
Page 45: Figure 22: Text Detail - Marking Example For Approved Ex I I/O Modules
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-429/040-001 2DI 60V DC 3ms XTR Figure 22: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18 attachment J Table 27: Description of Marking Example for Approved Ex i I/O Modules According to CEC 18... -
Page 46: Installation Regulations
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Installation Regulations For the installation and operation of electrical equipment in hazardous areas, the valid national and international rules and regulations which are applicable at the installation location must be carefully followed. - Page 47 WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-429/040-001 2DI 60V DC 3ms XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities • Insertion and removal of components •...
-
Page 48: Special Notes Regarding Ansi/Isa Ex
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR 7.2.2 Special Notes Regarding ANSI/ISA Ex For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: • Use in Class I, Division 2, Group A, B, C, D or non-hazardous areas only •... -
Page 49: List Of Figures
WAGO-I/O-SYSTEM 750 XTR List of Figures 750-429/040-001 2DI 60V DC 3ms XTR List of Figures Figure 1: View ....................16 Figure 2: Data Contacts ..................17 Figure 3: Power Jumper Contacts ..............18 ® Figure 4: CAGE CLAMP Connectors ..............19 Figure 5: Display Elements.................20 Figure 6: Schematic Diagram ................21... -
Page 50: List Of Tables
List of Tables WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR List of Tables Table 1: Number Notation ................... 7 Table 2: Font Conventions .................. 7 Table 3: Legend for Figure “View” ..............16 Table 4: Legend for Figure “Power Jumper Contacts” ........18 ®... - Page 51 WAGO-I/O-SYSTEM 750 XTR 750-429/040-001 2DI 60V DC 3ms XTR Manual Version 1.2.0...
