Component Locations

O
A. Air cleaner
B. Central lift point
C. Rear leveling jacks (2)
D. Priming chamber
E. Pump inlet (suction) port
F. Pump outlet (discharge) port
G. Fuel pre-filter
H. Engine oil drain
Owner's Manual for Dry-Prime Diesel Trash Pumps
A
L
M
N

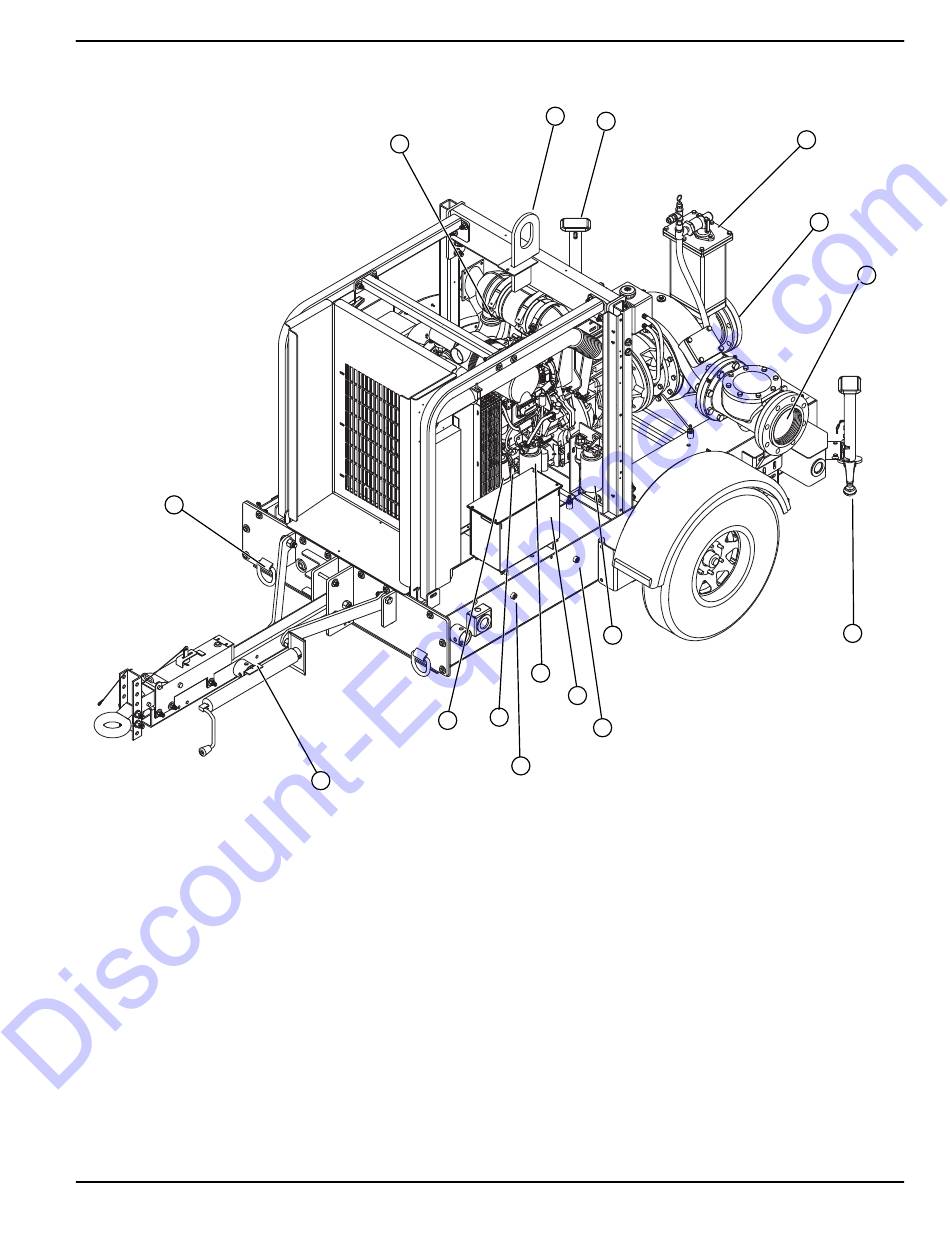

Figure 2-3. Left Side (6 Inch DZV Pump Shown)
B
C
G
J
I
H
K
I. Battery
J. Fuel filter (main)
K. Coolant drain
L. Engine oil dipstick
M. Engine oil filter
N. Front leveling jack
O. Tie down ring
General Information
D
E
F
C
002073
9
