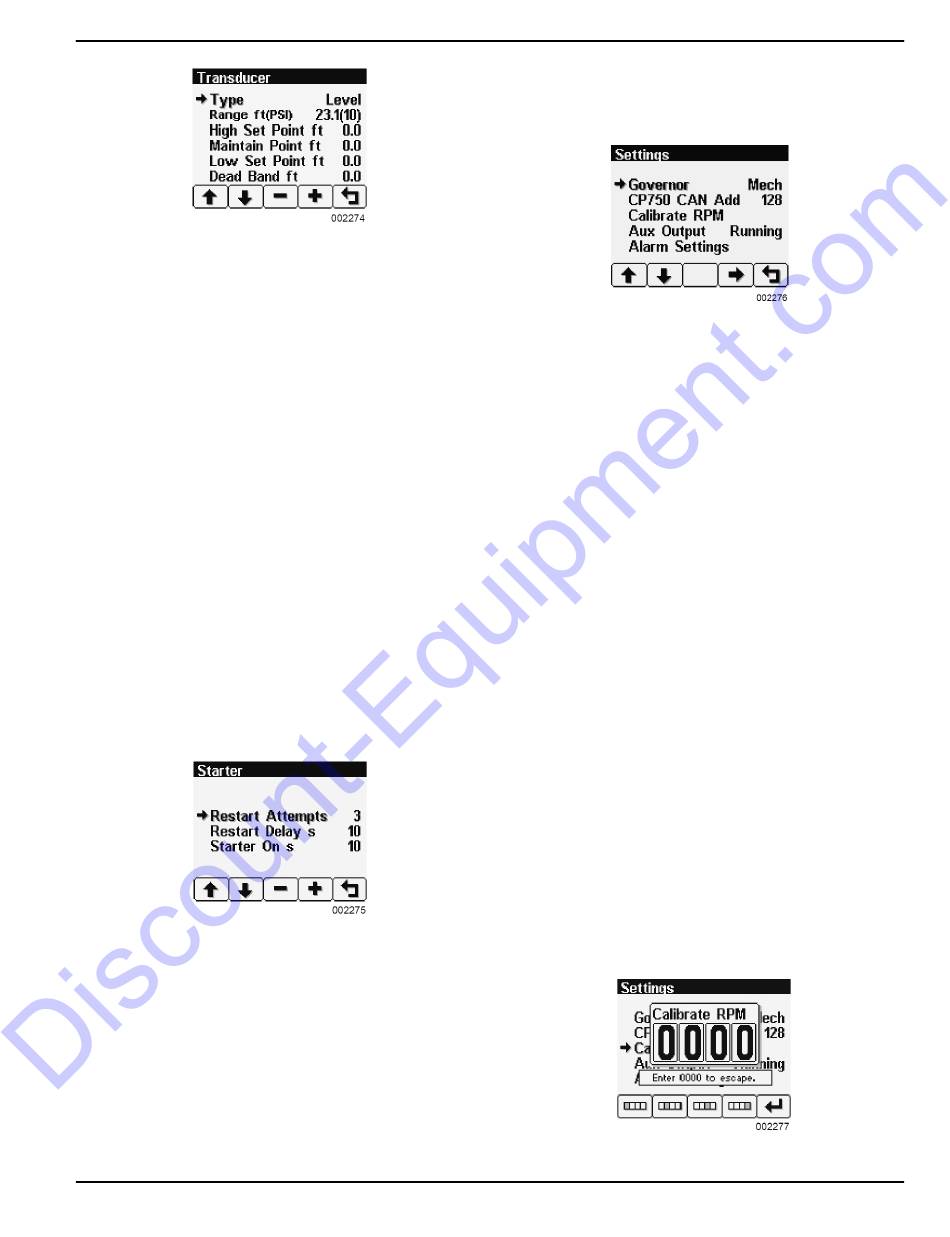

Figure 3-38. Transducer Type Menu
Range
Selects appropriate range for the transducer type.
High Set Point
For Empty and Maintain Out modes, sets the level that
begins and autostart cycle. For Fill and Maintain In modes,
sets the level that ends the cycle.
Maintain Point
Sets the target point for maintain modes.
Low Set Point
For Empty and Maintain Out modes, sets the level that
ends an autostart cycle. For Fill and Maintain In modes,
sets the level that begins a cycle.
Dead Band
Sets the amount of change from the target point required
to alter the engine speed.

Starter

This submenu configures starter control options for auto-
start.
Figure 3-39. Starter Menu
Restart Attempts
Selects the number of times to attempt restart.
Restart Delay Sec
Selects the number of seconds to wait before attempting
a restart.
Start on Sec
Selects the maximum number of seconds the starter can
be engaged.
Owner's Manual for Dry-Prime Diesel Trash Pumps

Settings Menu

This submenu allows the user to configure CANplus hard-
ware.
Figure 3-40. Settings Menu

Governor

Selects between Elect (electronically governed) and Mech
(mechanically governed) engines modes. For mechani-
cally governed engines, the CANplus I/O Board functions
as an ECU, broadcasting engine parameters such as oil
pressure and temperature on the CANbus.
NOTE: Switching governor modes requires cycling
power before calibrating the RPM. The CANplus
Configurator must be used to configure mechanical
engine parameters.

CP750 CAN Add

Selects the address used by the display to communicate
with the CANplus I/O Board. The default I/O Board address
is 128.
NOTE: Engine data is always transmitted using address
0 in mechanically governed mode.
IMPORTANT NOTE: Incorrectly configuring the CP750
CAN Address prevents the display from receiving I/O
Board data for the display menus and can result in data
collisions on the CANbus.

Calibrate RPM

Calibrates the tachometer input for mechanically governed
engines to allow the CANplus I/O Board to measure the
engine speed. This signal may be provided by an alternator
frequency tap, proximity switch. An optional amplifier/
divider can be added for use with a magnetic pickup.
Figure 3-41. Calibrate RPM Menu
