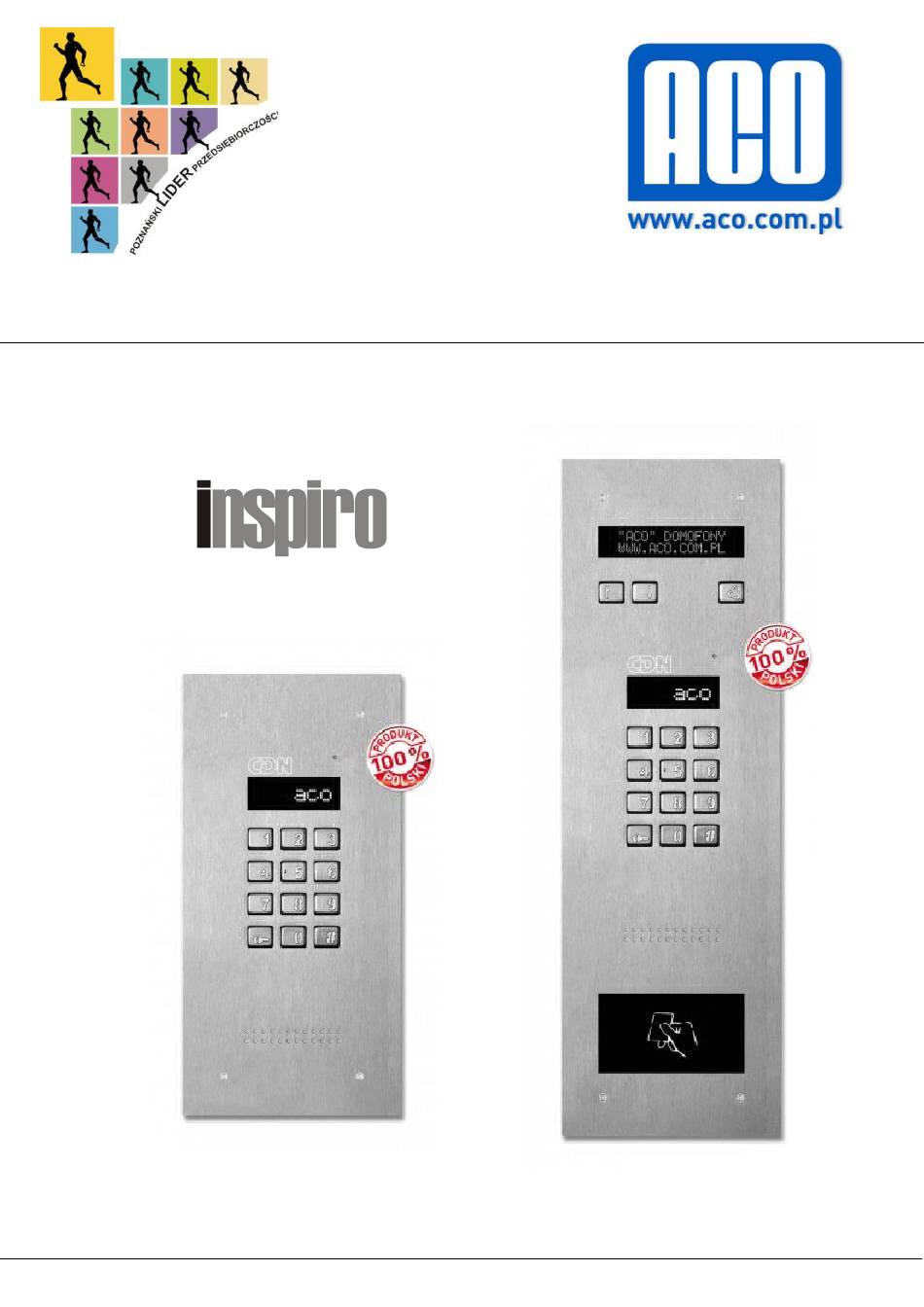

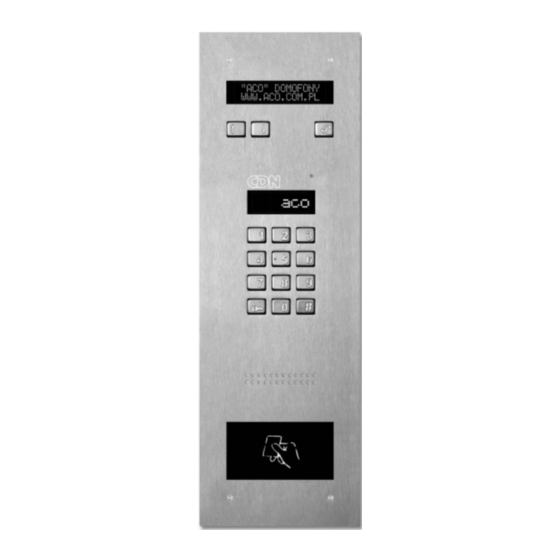

- Page 1 INSPIRO – installation manual for digital door phone panels Software v56 Applies to INSPIRO series 1, 2, 3, 5, 9, 10, 12, 13, 14, 17 60-479 Poznań, ul. Strzeszyńska 56, tel./ fax 061-8439-371...
- Page 2 Audio system connects the voltage 12V AC to panel terminals 12V~. Recommended power supply is ACO 11,5V 0,8A 10W. In case of supplying the power from a buffer power supply with battery, the voltage 13,8V should be connected to the terminals: +DC (+ELOCK) and GND (-Line).
- Page 3 Panels equipped with heated display present current temperature of the panel's inside after leaving the fitter's menu (button „#”) PROGRAMS OF THE PANEL: SERVICE OPENING OF ZMIANA KODU OTWIERANIA Open OpKey THE ELECTRICAL DOOR INDYWIDUALNEGO, STRIKE ADMINISTRATORA ETTING THE NUMBER Hi-Lo Rings SETTING QUIET OR LOUD...
- Page 4 CONNECTION DIAGRAM FOR ONE DEVICE CONNECTION DIAGRAM FOR MANY DEVICES...
