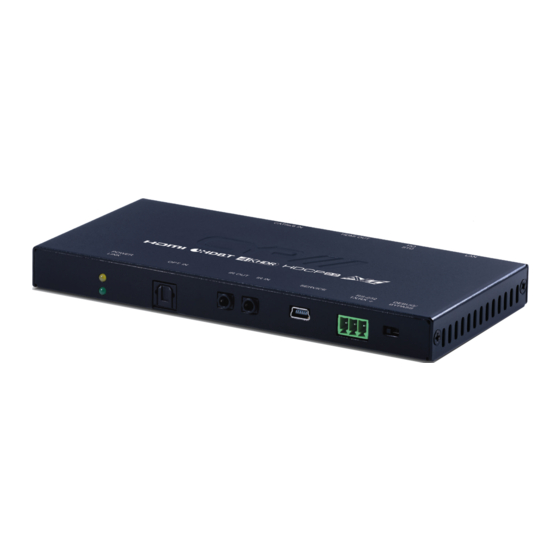

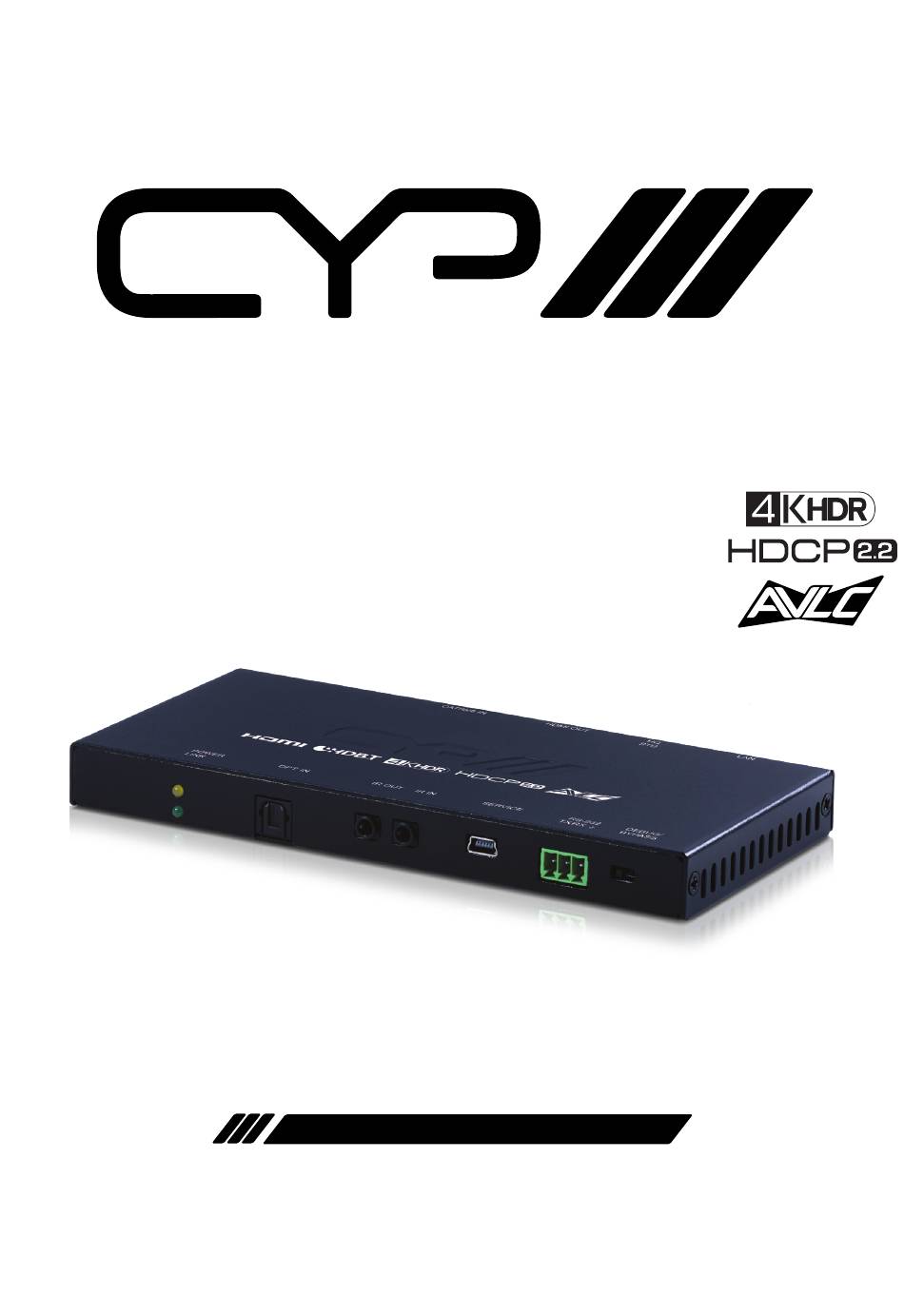

- Page 1 PUV-1830RX-AVLC HDBaseT™ HDR Receiver (4K, HDCP2.2, PoH, LAN, OAR, 18Gbps) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pinouts ........10 6.4 RS-232 Control ..........10 6.5 RS-232 Commands ........11 7. -
Page 6: Introduction
1. INTRODUCTION This HDMI over single Cat.5e/6/7 Receiver is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 metres. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI receiving equipment such as an HDTV, monitor or audio amplifier. A compatible HDBaseT Transmitter (PSE) with 48V PoH support is required. The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly recommended. The use of “Premium High Speed HDMI” cables is highly recommended. 5. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LINK OPT. IN IR EXTENDER 2 IR BLASTER 1 SERVICE RS-232 CONSOLE/ POWER BYPASS POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible Transmitter is active. -
Page 9: Rear Panel
used to send commands directly to the Receiver. Note: RS-232 bypass requires both the Transmitter and Receiver to be set to “Bypass” mode. 6.2 Rear Panel LAN: Connect to an Ethernet supporting device or to your local network, as appropriate, to extend the network to both ends of the HDBaseT connection. -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Extender Infrared Power Ground IR Blaster Power Infrared 6.4 RS-232 Control Terminal Block Controlling PC Serial Port Settings Definition Definition Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None... -
Page 11: Rs-232 Commands
6.5 RS-232 Commands COMMAND Description and Parameters HELP Show the full command list. ? Show the full command list. GET MODEL NAME Show the unit’s model name. GET MODEL TYPE Show the unit’s model type. GET POWER Show the power state of the unit. -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Game Console IR In & Out HDMI Input RS-232 Equipped 1.5m PC/Laptop 60° AV Receiver Optical Audio 60° Retun (OAR) RS-232 Power Supply Router Cat.5e/6/7 Cable RS-232 RS-232 Controlled 60° Device Optical Audio HDMI 60° Return (OAR) Output 1.5m IR In &... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK) Output Port 1×HDMI Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×LAN (RJ45) Pass-through/Control Port 1×RS-232 (3-pin Terminal Block) IR Frequency 30–50kHz (30–60kHz under ideal conditions) Baud Rate Up to 115200bps Power Supply... -
Page 14: Video Specifications
8.2 Video Specifications HDMI HDBaseT Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85 720×400 70, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1152×864 ... -
Page 15: Audio Specifications
HDMI HDBaseT Supported TV Resolutions (Hz) Input Output 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 50, 59.94, 60 ... -
Page 16: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Output Cat. Cable Length 1080p Cat.5e 100m Cat.6 100m Cat.7 100m 100m Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) - 4K@24/25/30Hz &... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM AVLC Adaptive Visually Lossless Compression Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range...
