TMV2 (T2MK75F16, T2MK75F16Q, T2MK77F16, and T2MK77F16Q):
TMV2 accommodates a variety of Mercury boards with or without Altronix sub-assemblies for access systems.
Mercury Access Controllers:
1. Fasten standoffs onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 6, pg. 7).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 6a, pg. 7).
3. Mount backplane to enclosure with hardware.
Altronix Sub-Assemblies and/or Adapters:
1. Fasten standoffs to pems which match the hole pattern (C) for Altronix Sub-Assemblies (Fig. 6, 6a, pg. 7).
2. Mount boards to standoffs utilizing pan head screws provided with the product (Fig. 6, pg. 7).
Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
Sub-Assembly or Adapter
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), VR6, GB1 (Genetec Synergis Cloud Link adapter plate)

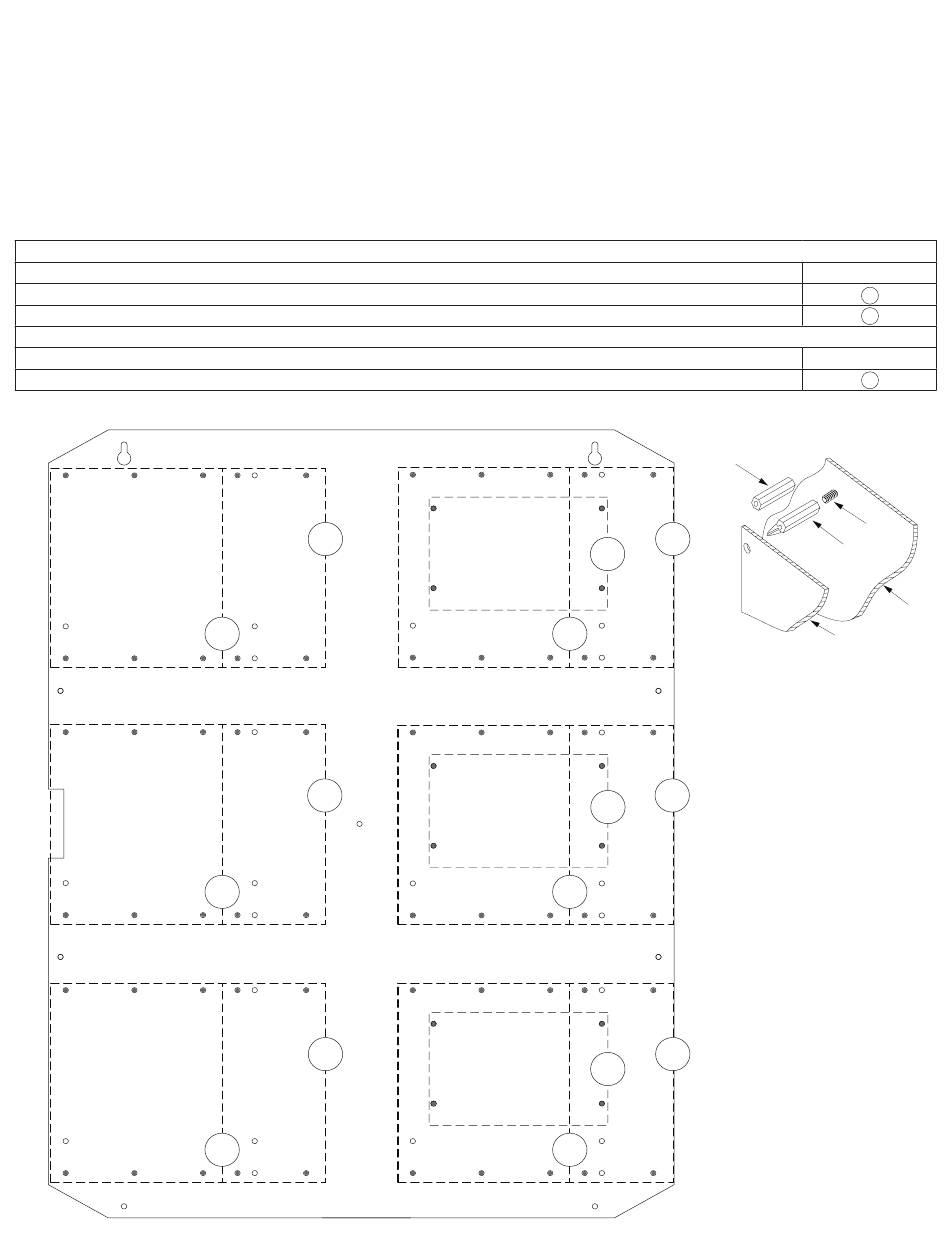

Fig. 6
T2MK Kits

Configuration of Mercury and/or Altronix Boards

Access Controller Position Chart for the Following Models:
A
B
A
B
A
B
Mercury
Altronix
C
B
C
B
C
B
Pem Mounting
Pem Mounting
Nylon
Standoff
A
Snap on
Standoff
Sub-Assembly
A
A
A
B
C
Fig. 6a
Pem
Backplane
- 7 -
