Access & Power Integration
Trove1HC1

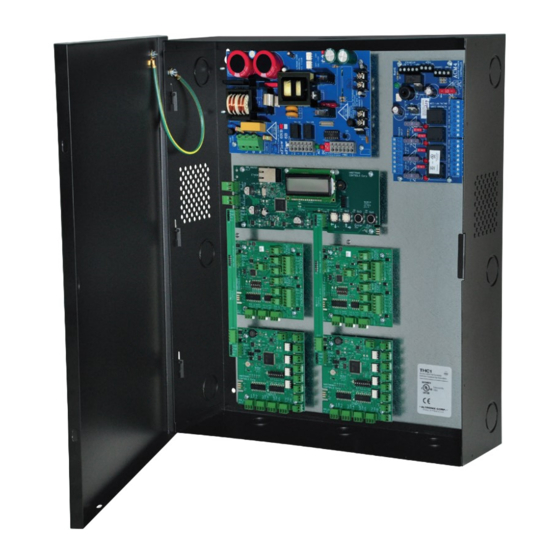

- Trove1 enclosure with Altronix/Hartmann Controls backplane (THC1)
THC1
- Altronix/Hartmann Controls backplane only
Trove2HC2
- Trove2 enclosure with Altronix/Hartmann Controls backplane (THC2)
THC2
- Altronix/Hartmann Controls backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. THC080520
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
SIGNALING
More than just power.™
Advertisement
Related Manuals for Altronix Trove1HC1
Summary of Contents for Altronix Trove1HC1
- Page 1 SIGNALING Access & Power Integration Trove1HC1 - Trove1 enclosure with Altronix/Hartmann Controls backplane (THC1) THC1 - Altronix/Hartmann Controls backplane only Trove2HC2 - Trove2 enclosure with Altronix/Hartmann Controls backplane (THC2) THC2 - Altronix/Hartmann Controls backplane only Installation Guide More than just power.™...
-
Page 2: Specifications
Overview: Trove1HC1 and Trove2HC2 accommodate various combinations of Hartmann Controls modules with or without Altronix power supplies and accessories for access control systems. Specifications: • 16 Gauge backplane and enclosure with ample knockouts for convenient access. Trove1HC1 Trove2HC2 Trove1 enclosure with THC1 Altronix/Hartmann Controls backplane Trove2 enclosure with THC2 Altronix/Hartmann Controls backplane •... - Page 3 Sub-Assembly Boards and Hartmann Controls Boards: 1. Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 2, pg. 3). Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 2, pg. 3).
- Page 4 Sub-Assembly Boards and Hartmann Controls Boards: 1. Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 3, pg. 4). Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 3, pg. 4).
- Page 5 THC1 Dimensions 16.625” x 12.5” x 0.3125” (422.3mm x 317.5mm x 7.9mm) 12.5” (317.5mm) 0.5” (12.7mm) 0.5” (12.7mm) 6.25” (158.75mm) Trove1HC1 / THC1 / Trove2HC2 / THC2 - 5 -...
- Page 6 25.375” x 19.375” x 0.325” (644.5mm x 482.6mm x 8.3mm) 19.375” (492.1mm) 2.2” (55.9mm) 2.2” (55.9mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5” (190.5mm) 7.5” (190.5mm) 9.2” (233.7mm) 9.2” (233.7mm) - 6 - Trove1HC1 / THC1 / Trove2HC2 / THC2...
- Page 7 Trove1HC1 Enclosure Dimensions (H x W x D): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (321.3mm) 7.25” (184.2mm) 1.45” (36.8mm) 1.95” (49.5mm) 4.5” (114.3mm) 13.0” (330.2mm) 1.25” (31.8mm) 1.25” (31.8mm) 1.5” (38.1mm) 1.5” (38.1mm) 0.6” (15.2mm) 0.57”...
- Page 8 Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. MEMBER IITrove1HC1 / THC1 / Trove2HC2 / THC2...
