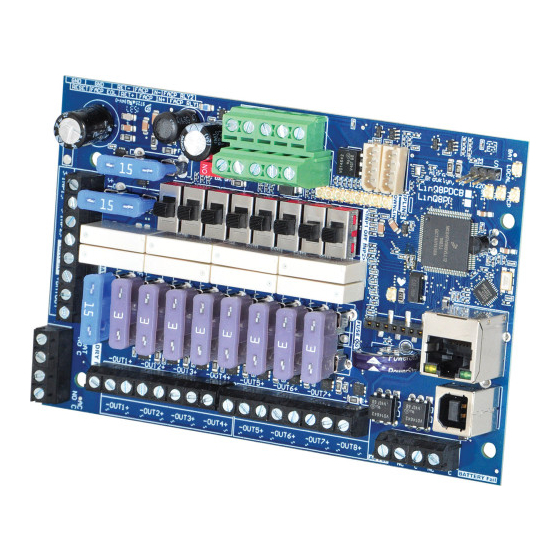

LINQ8PD Series
Network Power Distribution Modules
Models Include:
LINQ8PD
- Network Power Distribution Module
- Eight (8) Fused Outputs
LINQ8PDCB
- Network Power Distribution Module
- Eight (8) PTC Outputs
Installation and Programming Manual
DOC#: LINQ8PD Rev. 012918
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Please be sure to visit
altronix.com for
latest firmware and
installation instructions
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINQ LINQ8PD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix LINQ LINQ8PD Series

Summary of Contents for Altronix LINQ LINQ8PD Series

  • Page 1 Please be sure to visit altronix.com for latest firmware and installation instructions LINQ8PD Series Network Power Distribution Modules Models Include: LINQ8PD - Network Power Distribution Module - Eight (8) Fused Outputs LINQ8PDCB - Network Power Distribution Module - Eight (8) PTC Outputs Installation and Programming Manual More than just power.

  • Page 2: Table Of Contents

    Altronix Dashboard USB Connection ........

  • Page 3: Overview

    Overview: Altronix LINQ8PD(CB) network power distribution module facilitates monitoring, reporting, and control of one (1) or two (2) low voltage AC or supervised DC power supply/chargers over the network. It reports diagnostics via Email and Windows Dashboard Alert notifications, greatly reducing system downtime and eliminating unnecessary service calls.

  • Page 4: Terminal/Connector Identification

    Ethernet: LAN or laptop connection enables LINQ8PD(CB) programming and RJ45 status monitoring. Laptop connection enables LINQ8PD(CB) for Network setup and factory restore J USB via Altronix dashboard. Battery Fail Relay3 - Programmable for Battery Fail reporting or Tamper. NC, C Contact rating 1A @ 30VDC.

  • Page 5: Led Diagnostics

    LED Diagnostics: Flash Codes Description Charge/Discharge current working properly BAT LOCAL Blinking Charge/Discharge current on the battery exceed limits Fire Alarm Condition. FACP Normal. AC trouble. Normal. Battery trouble. Normal. Output is ON. OUT1-OUT8 Output is OFF. Blinking Output is ON and voltage and/or current exceeds limits. Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local codes and authorities having jurisdiction.

  • Page 6: Network Setup

    8. Reconnect AC power mains to the connected power supply(ies) and connect back-up batteries. Network Setup: –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Please be sure to visit altronix.com for latest firmware and installation instructions. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Altronix Dashboard USB Connection: The USB connection on the LINQ8PD(CB) is used for Network. When connected to a PC via the USB cable the LINQ8PD(CB) will receive power from the USB port allowing programming of the LINQ8PD(CB) prior to being connected to the power supply.

  • Page 7: Browser Setup

    A dialog box will display “New network settings will take effect after the server is rebooted”. Click OK. Browser Setup: When not using the Altronix Dashboard USB connection for the initial Network setup the LINQ8PD(CB) needs to be connected to any DC power supply(ies) or eFlow power supply(ies) being monitored (refer to Installing LINQ8PD(CB) Board on page 2 of these instructions) prior to programing.
  • Page 8 Notes: Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IILINQ8PD G30U - 8 - LINQ8PD / LINQ8PDCB Installation and Programming Manual...
