T2MK75F16, T2MK75F16Q: Configuration of Mercury Boards:

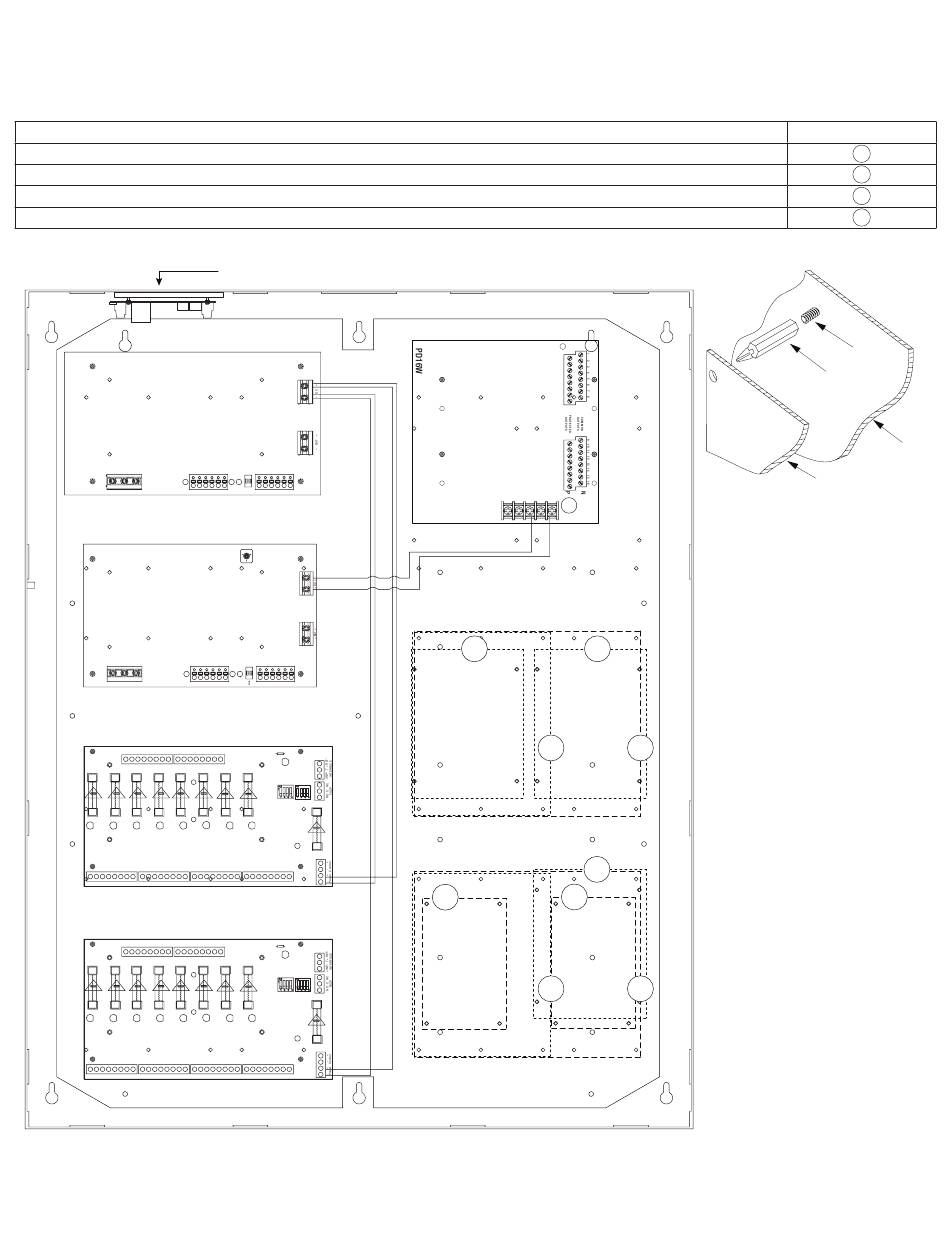

1. Fasten snap on standoffs onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 4, pg. 5).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 4a, pg. 5).
3. Mount backplane to enclosure with hardware.
Mercury Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
EP1501, MR51e
MR50
Fig. 4
Altronix
eFlow104NB
L G N
Altronix
eFlow102NB
AC1
L G N NC
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4 5 6
F1 F2 F3 F4 F5
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5 6
1 2 3 4
F1 F2 F3 F4 F5
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
T2MK Kits
Access Controller Position Chart for the Following Models:
Altronix LINQ2 Module (T2MK75F16Q)
AC DC
1 min enable
C NO NC C NO TRIGGER EOL NO GND
2 hr disable + AUX -
SUPERVISED
AC FAIL BAT FAIL RESET
FACP
TRIGGER
TRG
INPUT
7 8
F6 F7 F8
O N O N
1 2 3 4 1 2 3 4
Altronix
ACM8
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
FACP
TRIGGER
TRG
INPUT
7 8
F6 F7 F8
O N O N
1 2 3 4 1 2 3 4
Altronix
ACM8
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
Altronix PD16W
XFMR INPUT
S P P N N
C C
B
C
D D
B
A
A
Pem Mounting
A
B
C
D
Fig. 4a
Pem
Snap On
Standoff
Backplane
Mercury Board
