Altronix TROVE PLUS T1M1LCK1 Installation Manual

Access & Power Integration
Altronix/Mercury Wired Kits
Models Include:
T1M1LCK1
4 Door Kit with Fused Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
one (1) Dual Reader Interface Module.
T1M1LCK2
2 Door Kit with Fused Outputs
Accommodates one (1) Intelligent Controller and
one (1) Dual Reader Interface Module.
T1M1LCK3
4 Door Kit with Fused Outputs
Accommodates up to two (2) Dual Reader Interface Modules.

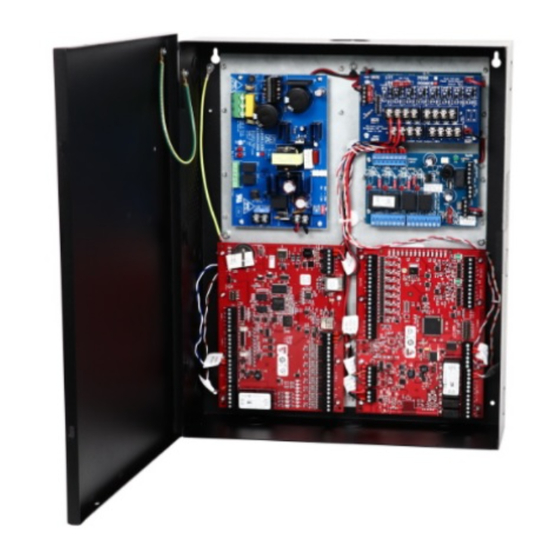

Each fully assembled kit includes:
- Trove1 enclosure with TM1 Altronix/Mercury backplane
- One (1) AL400ULXB2 - Power Supply/Charger
- One (1) ACM4 - Fused Access Power Controller
- One (1) PDS8 - Dual Input Fused Power Distribution Module
- One (1) VR6 - Voltage Regulator
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and management
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. 020922
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T1M1LCK1D
4 Door Kit with PTC Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
one (1) Dual Reader Interface Module.
T1M1LCK2D
2 Door Kit with PTC Outputs
Accommodates one (1) Intelligent Controller and
one (1) Dual Reader Interface Module.
T1M1LCK3D
4 Door Kit with PTC Outputs
Accommodates up to two (2) Dual Reader Interface Modules.
Each fully assembled kit includes:
- Trove1 enclosure with TM1 Altronix/Mercury backplane
- One (1) AL400ULXB2 - Power Supply/Charger
- One (1) ACM4CB - PTC Access Power Controller
- One (1) PDS8CB - Dual Input PTC Power Distribution Module
- One (1) VR6 - Voltage Regulator
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and management
More than just power.™
