Access & Power Integration
T2MK3F8Q2

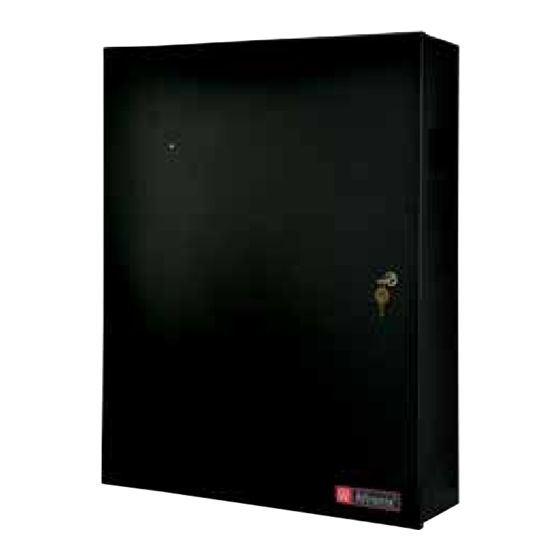

8 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) eFlow6NB - Power Supply/Charger
- One (1) LINQ2 - Network Communications Module
- One (1) ACM8 - Fuse Protected Access Power Controller
- One (1) RSB1 Rocker Switch Bracket with One (1) Rocker Switch (Not evaluated by UL)
Installation Guide
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
All registered trademarks are property of their respective owners.
Rev. 032520
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
More than just power.™
