Configuration Of Mercury Boards; Access Controller Position Chart - Altronix TROVE T2MK3F4 Installation Manual

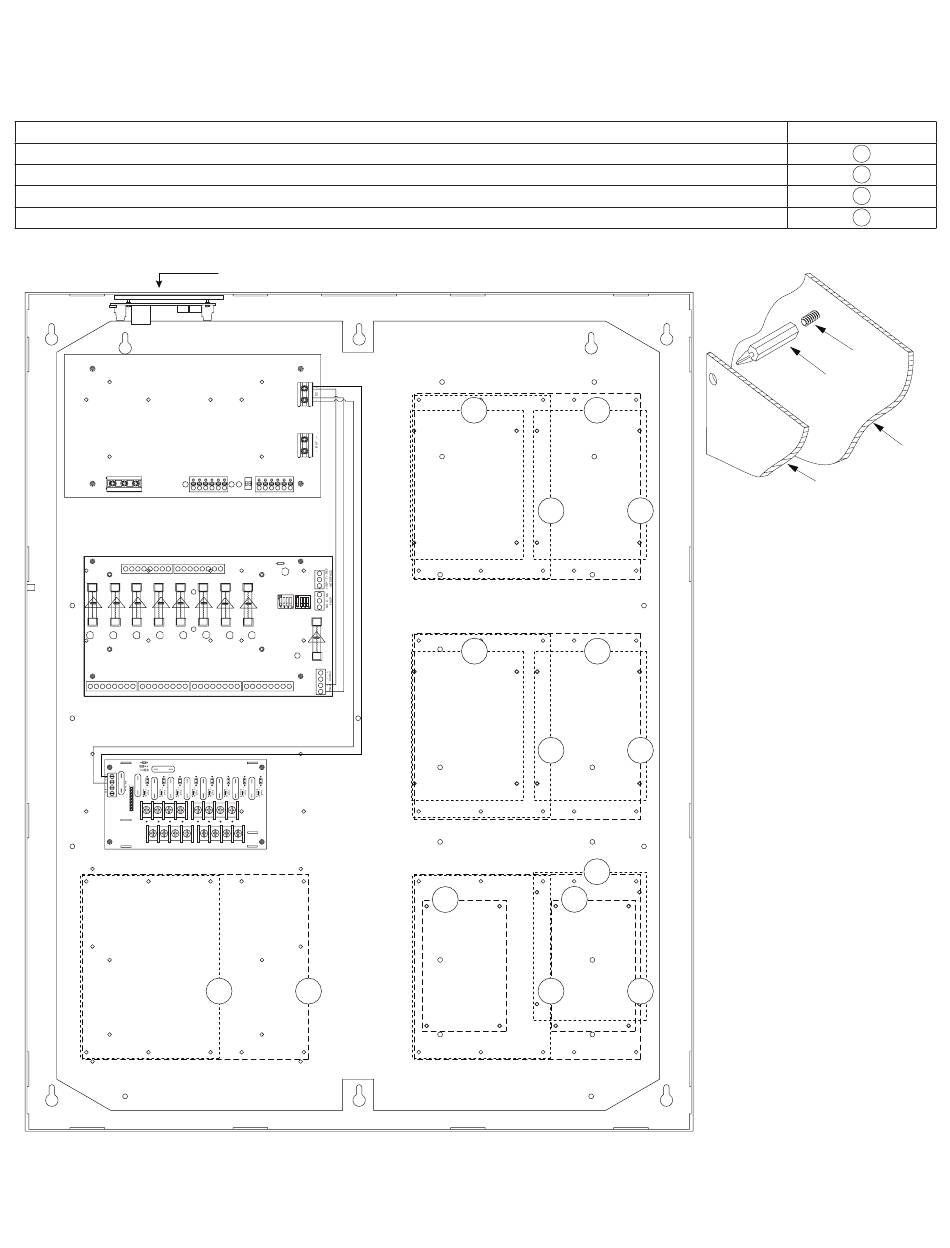

1. Fasten snap on standoffs onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 3, pg. 4).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 3a, pg. 4).
