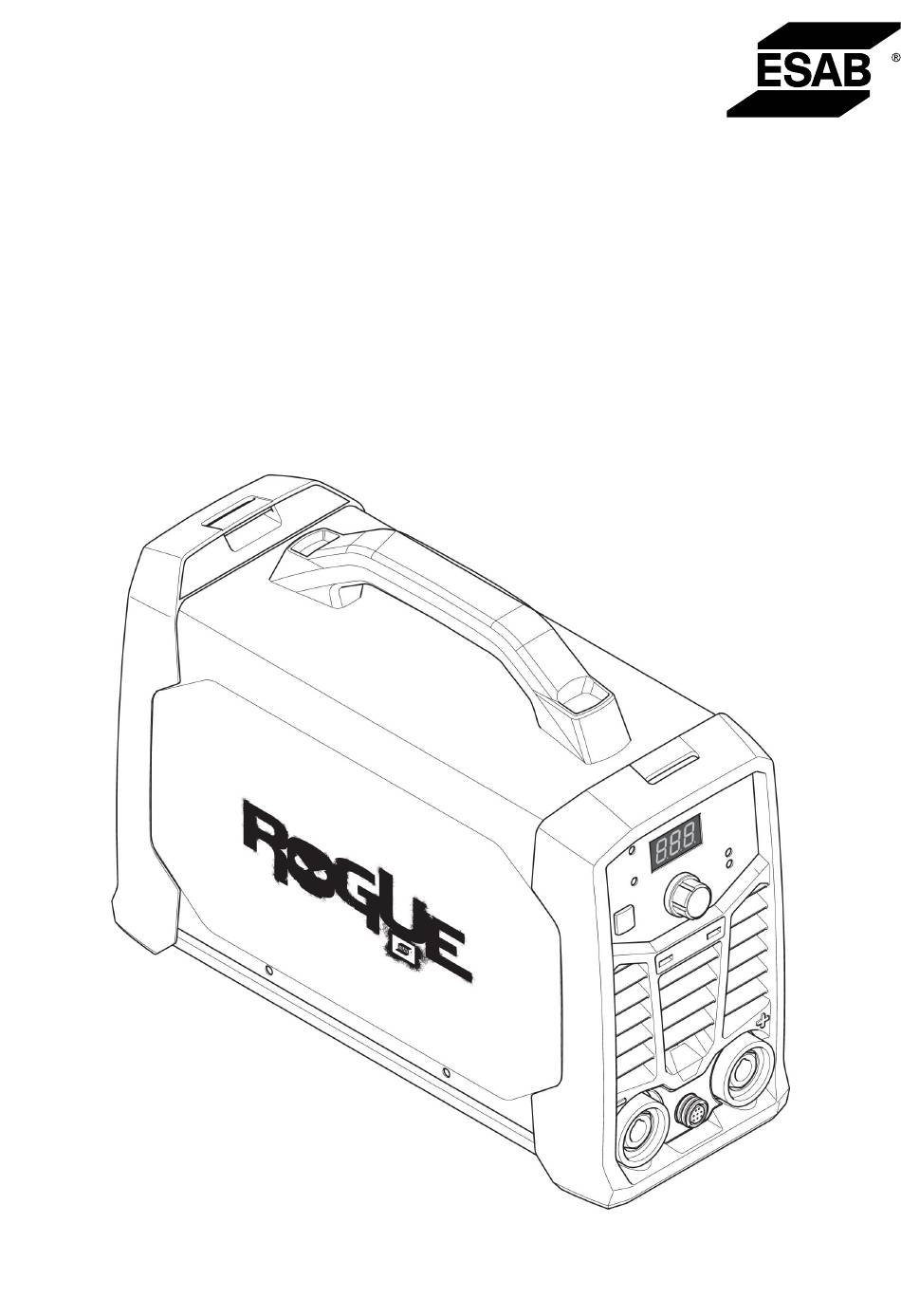

- Page 1 Rogue ES 180i Pro, ES 200i Pro Instruction manual Valid for: A01-xxx-xxxx 0463 710 001 GB 20200323...
-
Page 3: Table Of Contents
Mains supply ................... MAINTENANCE ................... Routine maintenance ................Cleaning instruction ................TROUBLESHOOTING ................ORDERING SPARE PARTS ................ DIAGRAM ......................ORDERING NUMBERS ..................19 ACCESSORIES ....................20 Rights reserved to alter specifications without notice. 0463 710 001 © ESAB AB 2020... -
Page 4: Safety
Safety Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 If equipped with ESAB cooler Use ESAB approved coolant only. Non-approved coolant might damage the equipment and jeopardize product safety. In case of such damage, all warranty undertakings from ESAB cease to apply. Recommended ESAB coolant ordering number: 0465 720 002.
- Page 6 There may be potential difficulties in ensuring electromagnetic compatibility of class A equipment in those locations, due to conducted as well as radiated disturbances. 0463 710 001 - 6 - © ESAB AB 2020...
- Page 7 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0463 710 001 - 7 - ©...
-
Page 8: Introduction
2 INTRODUCTION INTRODUCTION Overview Rogue ES 180i Pro, ES 200i Pro is an inverter-based power source intended for MMA (Manual Metal Arc) and TIG (Tungsten Inert Gas) welding. ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. -
Page 9: Technical Data
3 TECHNICAL DATA TECHNICAL DATA Technical data Rogue ES 200i Pro Rogue ES 180i Pro Outlet voltage 230 V±15% 115 V±15% 230 V±15% 115 V±15% 1~ 50/60 Hz 1~ 50/60 Hz 1~ 50/60 Hz 1~ 50/60 Hz Primary current 30 A 29 A 26 A 29 A Live TIG 19.5 A 24 A 16.5 A 24 A... - Page 10 3 TECHNICAL DATA Rogue ES 200i Pro Rogue ES 180i Pro Operating -10 to -10 to -10 to -10 to temperature +40 °C +40 °C +40 °C +40 °C (+14 to (+14 to (+14 to (+14 to 104 °F) 104 °F) 104 °F) 104 °F) Transportation -20 to +55 °C -20 to +55 °C -20 to +55 °C -20 to +55 °C temperature (-4 to +131 °F)
-
Page 11: Installation
WARNING! Falling equipment can cause serious personal injury and equipment damage. Lift the unit with handle on top of case. 0463 710 001 - 11 - © ESAB AB 2020... -
Page 12: Mains Supply
4 INSTALLATION Mains supply NOTE! Rogue ES 180i Pro and ES 200i Pro comply with IEC 61000-3-12 provided that the short-circuit power is greater than or equal to S at the interface point between the scmin user's supply and the public system. It is the responsibility of the installer or user of... - Page 13 Generators with Automatic Voltage Regulation (AVR) or with equivalent or better type of regulation, with rated power 7 kW, are recommended. 0463 710 001 - 13 - © ESAB AB 2020...
-
Page 14: Maintenance
How often depends on: • the welding process • the arc time • the working environment CAUTION! Make sure that the cleaning procedure is done in a suitable prepared workspace. 0463 710 001 - 14 - © ESAB AB 2020... - Page 15 Open the enclosure and use a vacuum cleaner to remove any accumulated dirt, metal filings, slag and loose material. Keep the shunt and lead screw surfaces clean as accumulated foreign material may reduce the welders output welding current. 0463 710 001 - 15 - © ESAB AB 2020...
-
Page 16: Troubleshooting
Refer to power source “Duty cycle” section in "TECHNICAL DATA", page 9. Make sure that the air inlets or outlets are not clogged. Clean the inside of the machine using routine maintenance methods. 0463 710 001 - 16 - © ESAB AB 2020... -
Page 17: Ordering Spare Parts
Repair and electrical work should be performed by an authorised ESAB service technician. Use only ESAB original spare and wear parts. The Rogue ES 180i Pro, ES 200i Pro is designed and tested in accordance with the international and European standards EN60974-1 and EN60974-10. On completion of service or repair work, it is the responsibility of the person(s) performing the work to ensure that the product still complies with the requirements of the above standards. -
Page 18: Diagram
DIAGRAM DIAGRAM From serial number A01-xxx-xxxx 0463 710 001 - 18 - © ESAB AB 2020... -
Page 19: Ordering Numbers
Therefore they are replaced with * here. Make sure to use a manual with a serial number or software version that corresponds with the product, see the front page of the manual. 0463 710 001 - 19 - © ESAB AB 2020... -
Page 20: Accessories
0700 500 084 Remote control, Handheld remote, MMA 4 W4014450 Remote control, Foot pedal, with 4,5 m (15 ft) cable, 8 PIN 0700 500 085 Rogue plastic case (Toolbox) 0700 500 086 Shoulder strap 0463 710 001 - 20 - © ESAB AB 2020... - Page 21 ACCESSORIES 0463 710 001 - 21 - © ESAB AB 2020...
- Page 22 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 http://manuals.esab.com...
