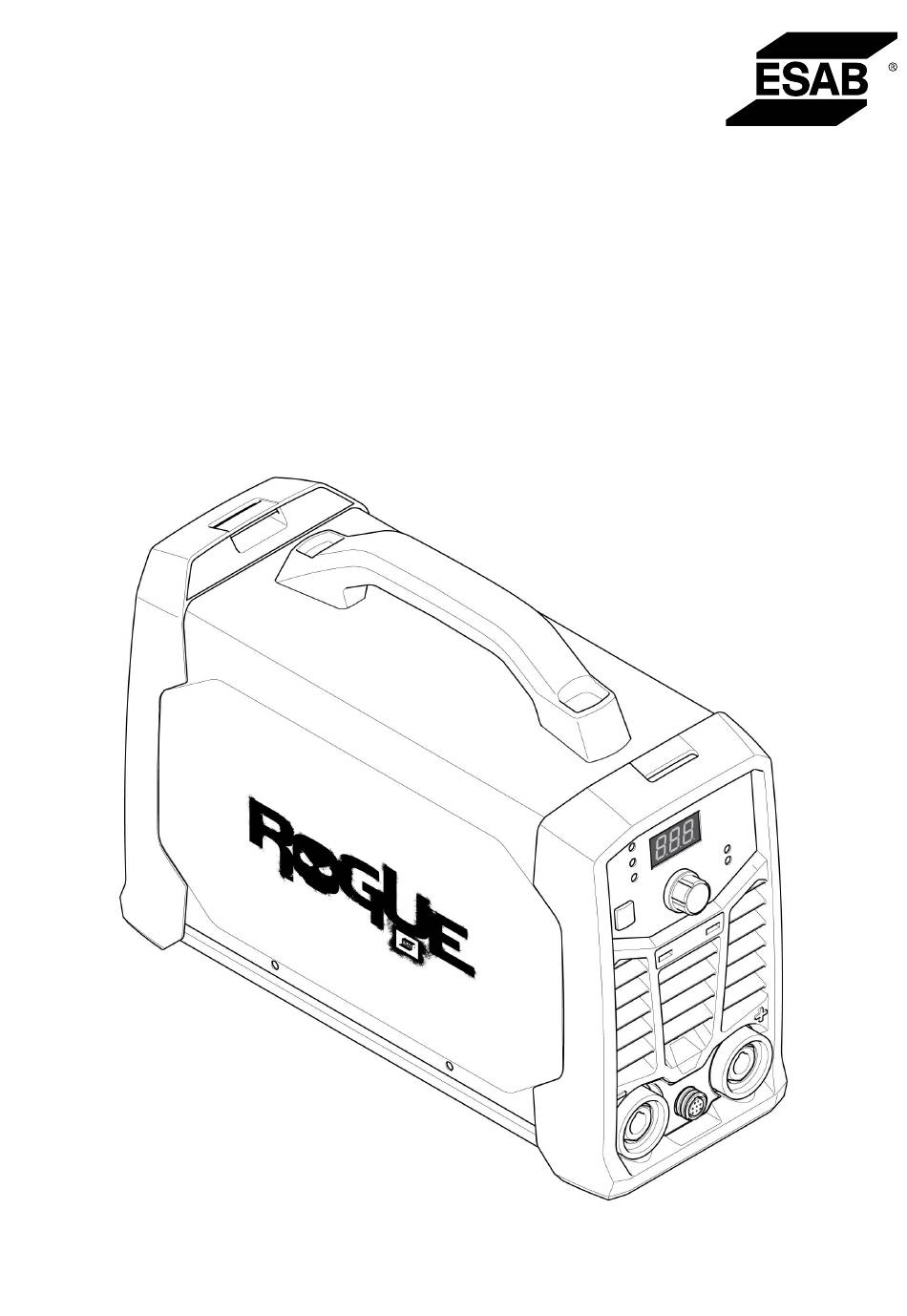

- Page 1 Rogue ES 130i PRO, ES 180i PRO Instruction manual Valid for: A01-, A02-, A03-, HA19-, HA042-xxxx-xxxx 0463 709 101 US 20201116...
-
Page 2: Table Of Contents
Remote control ..................MAINTENANCE ................... Routine maintenance ................Cleaning instructions ................TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ DIAGRAM ......................ORDERING NUMBERS ..................27 ACCESSORIES ....................28 Rights reserved to alter specifications without notice. 0463 709 101 © ESAB AB 2020... -
Page 3: Safety
A flameproof apron may also be desirable as protection against radiated heat and sparks. 0463 709 101 - 3 - © ESAB AB 2020... - Page 4 Put on dry, hole-free gloves before turning on the power. Turn off the power, before removing your gloves. 10. Refer to ANSI/ASC Standard Z49.1 for specific grounding recommendations. Do not mistake the work lead for a earth cable. 0463 709 101 - 4 - © ESAB AB 2020...
- Page 5 Do not use adapters. Maintain hoses and fittings in good condition. Follow the manufacturer's operating instructions for mounting a regulator to a compressed gas cylinder. 0463 709 101 - 5 - © ESAB AB 2020...
- Page 6 Keep all safety devices and cabinet covers in position and in good repair. Use equipment only for its intended purpose. Do not modify it in any manner. 0463 709 101 - 6 - © ESAB AB 2020...
-
Page 7: User Responsibility
Protection Devices" User responsibility Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed, in addition to the standard regulations that apply to the workplace. - Page 8 If equipped with ESAB cooler Use ESAB approved coolant only. Non-approved coolant might damage the equipment and jeopardize product safety. In case of such damage, all warranty undertakings from ESAB cease to apply. Recommended ESAB coolant ordering number: 0465 720 002.
-
Page 9: California Proposition 65 Warning
CAUTION! This product is solely intended for arc welding. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information, contact your local ESAB dealer or visit us on our website. California Proposition 65 Warning... - Page 10 This product can expose you to chemicals including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after use. For more information, go to www.P65Warnings.ca.gov. 0463 709 101 - 10 - © ESAB AB 2020...
-
Page 11: Introduction
2 INTRODUCTION INTRODUCTION Overview Rogue ES 130i PRO, ES 180i PRO are inverter-based power source intended for Stick (SMAW) and Tungsten inert gas (TIG/GTAW) welding. ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. -
Page 12: Technical Data
3 TECHNICAL DATA TECHNICAL DATA Technical data Rogue ES 130i PRO Rogue ES 180i PRO (0700500091) (0700500070) Outlet voltage 120 V±15% 230 V±15% 120 V±15% 230 V±15% 1~ 50/60 Hz 1~ 50/60 Hz 1~ 50/60 Hz 1~ 50/60 Hz Primary current Stick 21 A 17 A 25.7 A 26 A Live TIG... - Page 13 3 TECHNICAL DATA Rogue ES 130i PRO Rogue ES 180i PRO (0700500091) (0700500070) Operating +14 to +104°F (-10 to +40°C) +14 to +104°F (-10 to +40°C) temperature Transportation -20 to +55°C (-4 to +131°F) -20 to +55°C (-4 to +131°F) temperature Continual sound <70 dB <70 dB pressure at no-load Dimensions 15.9 × 6 × 10.4 in.
-
Page 14: Installation
WARNING! Falling equipment can cause serious personal injury and equipment damage. Lift the unit with the handle on top of the case. 0463 709 101 - 14 - © ESAB AB 2020... -
Page 15: Main Supply
A protective ground connection must be made, in accordance with regulations. Rating plate with supply connection data. Recommended fuse sizes and minimum cable area for Rogue ES 130i PRO Power cable for heavy-duty applications (SOOW type) must be used Supply voltage 230 VAC 120 VAC... - Page 16 I1eff Stick (SMAW) 13 A 13 A Fuse anti-surge type D MCB 20 A 20 A Recommended fuse sizes and minimum cable area for Rogue ES 130i PRO, ES 180i Power cable for heavy-duty applications (SOOW type) must be used Supply voltage 230 VAC 120 VAC Maximum recommended extension cord length 328 ft (100 m)
-
Page 17: Operation
Connect the return cable to the other output on the power source. Secure the return cable's contact clamp to the workpiece, and make sure that there is a good contact between the workpiece and the output for the return cable on the power source. 0463 709 101 - 17 - © ESAB AB 2020... -
Page 18: Turning The Power On/Off
Do not turn off the power source during welding (with load). Fan control Rogue ES 130i PRO, ES 180i PRO are fitted with a fan as needed feature. Fan-as-needed automatically switches the cooling fan off when it is not required. This has two main advantages;... - Page 19 The VRD function ensures that the open-circuit voltage does not exceed 35 V when welding is not being carried out. This is indicated by a lit VRD indicator on the panel. Contact an authorized ESAB service technician to activate this function.
-
Page 20: Setting Panel
Connect the remote control to the front of the power source. When the remote control is connected, it is automatically activated. The maximum setting of the power source will be determined by the respective front panel control, irrespective of the remote control device setting. 0463 709 101 - 20 - © ESAB AB 2020... -
Page 21: Maintenance
Cleaning instructions To maintain the performance and increase the lifetime of the power source, it is mandatory to clean it regularly. How often depends on: 0463 709 101 - 21 - © ESAB AB 2020... - Page 22 Open the enclosure and use a vacuum cleaner to remove any accumulated dirt, metal filings, slag and loose material. Keep the shunt and lead screw surfaces clean as accumulated foreign material may reduce the welder's output welding current. 0463 709 101 - 22 - © ESAB AB 2020...
-
Page 23: Troubleshooting
Refer to power source “Duty cycle” section in "TECHNICAL DATA", page 12. Make sure that the air inlets or outlets are not clogged. Clean the inside of the machine using routine maintenance methods. 0463 709 101 - 23 - © ESAB AB 2020... -
Page 24: Ordering Spare Parts
Repair and electrical work should be performed by an authorised ESAB service technician. Use only ESAB original spare and wear parts. Rogue ES 130i PRO, ES 180i PRO are designed and tested in accordance with the international standards CSA E60974-1 and ANSI/IEC 60974-1. Upon completion of service or repair work, it is the responsibility of the person(s) performing the work to ensure that the product still complies with the requirements of the above standards. -
Page 25: Diagram
DIAGRAM DIAGRAM For serial number A01-xxx-xxxx 0463 709 101 - 25 - © ESAB AB 2020... - Page 26 DIAGRAM For serial number A02-xxx-xxxx, A03-xxx-xxxx, HA019-xxxx-xxxx, HA042-xxxx-xxxx 0463 709 101 - 26 - © ESAB AB 2020...
-
Page 27: Ordering Numbers
Therefore they are replaced with * here. Make sure to use a manual with a serial number or software version that corresponds with the product, see the front page of the manual. 0463 709 101 - 27 - © ESAB AB 2020... -
Page 28: Accessories
TIG Torch and Accessories, 17 Style, 13 ft. (4 m) W4014000 Power Adapter W4014450 TIG Foot Control, 15 ft. (4.5 m) cable and 8-pin connector 0700 500 085 Rogue plastic case (Toolbox) 0700 500 086 Shoulder strap 0463 709 101 - 28 - © ESAB AB 2020... - Page 29 ACCESSORIES 0463 709 101 - 29 - © ESAB AB 2020...
- Page 30 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 http://manuals.esab.com...
