METHVEN

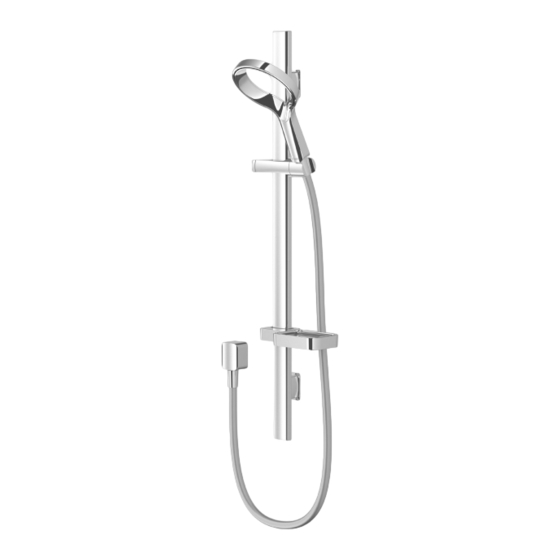

AURAJET AIO RAIL SHOWER
198
46
SPECIFICATIONS
Recommended Use
Colour
Pressure Rating
Temperature Rating
Suitable Hot Water
Units
WELS
Standards
Spray Patterns
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners. This
product should not be cleaned with abrasive materials. Damage caused
by improper treatment is not covered by the product warranty – refer to
warranty conditions on the last page.
The more
stars the more
water efficient
WATER RATING
www.waterrating.gov.au
9.0
litres per
minute
In accordance with AS/NZS 6400
Licence No. 0095
Methven Australia Pty Ltd
216
Typical
Variable
Domestic, hotel and commercial
Chrome with white face
Chrome with satin chrome face
Suitable for high pressure applications and has
been WELS certified to the following:
Minimum operating pressure 150kPa
Maximum operating pressure 500kPa
Maximum continuous working temperature 70°C
(recommended 38°C - 42°C)
Minimum 1°C
Storage Tank: Yes
Continuous Flow: Yes
Gravity Feed: Not recommended
Stars: 3
Flow rate: 9L/min
AS/NZS 3662
Aurajet Spray
Disclaimer: Products in this specification manual must by regulation be installed by
licensed and registered trade people. The manufacturer/distributor reserves the right to
vary specifications or delete models from their range without prior notification. Dimensions
are nominal measurements only. Dimensions and set-outs listed are correct at time of
publication however the manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
107
To see the complete Aio range go to
www.reece.com.au/bathrooms
AOSRCPWHAU
AOSRCPAU
page 1 of 4
