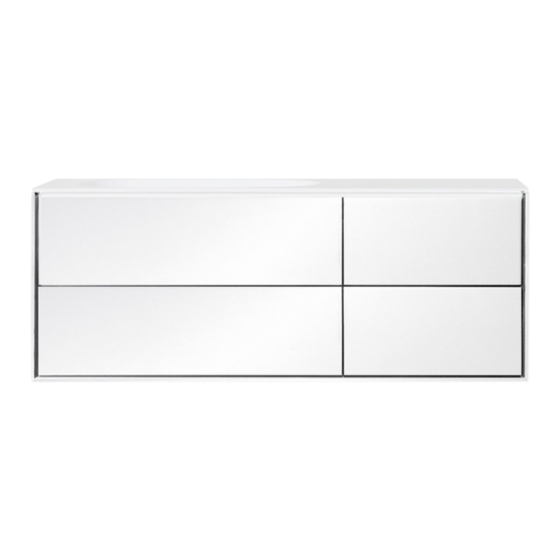

ISSY GLIDE TWIN VANITY UNIT
FEATURES
Basin Type
Basin Configuration
Door/Drawer Design
Number of Drawers
Taphole
Configuration
Mounting
Vanity Top
Features
Custom Sizes
SPECIFICATIONS
Height
Width
Length
Other Size Options
Colour Variations
Fixing
Vanity Unit Material
CLEANING RECOMMENDATIONS
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered
trade people. The manufacturer/distributor reserves the right to vary specifications or delete models from
their range without prior notification.
listed are correct at time of publication however the manufacturer/distributor takes no responsibility for
printing errors.
Tech Page Version 3
One Piece Intergrated Top and Basin
Left Hand Basin or Right Hand Basin
to Open S
750
2 Drawer
1200
4 Drawer
1500
4 Drawer
1750
6 Drawer
0 or 1 Taphole
Wall Hung
White Only Solid Surface Moulded Top And Basin
Movable Solid Surface Drawer Divider
Removable and Washable Non Slip Drawer Mat
Choice of Metallic Colours
Solid Surface Moulded Waste Cut Out in Basin
Drawer
A Range of Customised Sizes Available
450mm
500mm
750mm, 1200mm, 1500mm (single basin) or
1750mm (double basin)
750 Can Be Customised 751 - 850mm
1200 Can Be Customised 1000 - 1300mm
1500 Can Be Customised 1400 - 1499mm
1750 Double Basin Can Be Customised
1751 - 2000mm
Satin or Gloss White
Metallic Silver Gloss or Metallic Charcoal Gloss
and Black Oak
Bolted / Screwed to Wall by a Licensed Trades
Person
2 Pack Polyurethane on High Moisture Resistant MDF
Dimensions and set-outs
Technical Guide
To see the complete ISSY range go to
www.reece.com.au/bathrooms
page 1 of 8
Advertisement
Table of Contents
Related Manuals for Reece ISSY GLIDE TWIN 750
Summary of Contents for Reece ISSY GLIDE TWIN 750
- Page 1 2 Pack Polyurethane on High Moisture Resistant MDF Vanity Unit Material To see the complete ISSY range go to www.reece.com.au/bathrooms CLEANING RECOMMENDATIONS Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor reserves the right to vary specifications or delete models from their range without prior notification.
- Page 2 page 2 of 8 page 2 of 8 ISSY GLIDE TWIN VANITY UNIT ISSY GLIDE TWIN VANITY UNIT GLIDE TWIN 750 GLIDE RISE 750 GLIDE RISE 750 2352421- ISSY GLIDE TWIN VU 750 SB WH 2352422 - ISSY GLIDE TWIN VU 750 SB OAK 2352423 - ISSY GLIDE TWIN VU CUST 751-850 SB WH 2352424 - ISSY GLIDE TWIN VU CUST 751-850 SB OAK SCALE 1:5...
- Page 3 page 3 of 8 page 3 of 8 ISSY GLIDE TWIN VANITY UNIT ISSY GLIDE TWIN VANITY UNIT 2352429 - ISSY GLIDE TWIN VU 1500 SB WH 2352430 - ISSY GLIDE TWIN VU 1500 SB OAK 2352431 - ISSY GLIDE TWIN VU CUST 1400-1499 SB WH 2352432 - ISSY GLIDE TWIN VU CUST 1400-1499 SB OAK SCALE 1:5 GLIDE TWIN 1500...
- Page 4 page 3 of 8 page 3 of 8 page 4 of 8 ISSY GLIDE TWIN VANITY UNIT ISSY GLIDE TWIN VANITY UNIT GLIDE TWIN 2000 GLIDE RISE 1500 GLIDE RISE 1500 2352437 - ISSY 2352438 - ISSY SCALE 1:10 2000 2352437 - ISSY GLIDE TWIN VU 2000 DB WH TOP VIEW 2352438 - ISSY GLIDE TWIN VU 2000 DB OAK...
- Page 5 page 3 of 8 page 3 of 8 page 5 of 8 ISSY GLIDE TWIN VANITY UNIT ISSY GLIDE TWIN VANITY UNIT page 6 of 8 Plumbing Setout GLIDE RISE 1500 GLIDE RISE 1500 GLIDE TWIN 750 Vanity Top REAR VIEW SCALE 1:5 Front Elevation GLIDE TWIN 2000 DOUBLE BASIN...
- Page 6 page 3 of 8 page 3 of 8 2000 page 6 of 8 TOP VIEW Plumbing Setout ISSY GLIDE TWIN VANITY UNIT ISSY GLIDE TWIN VANITY UNIT GLIDE TWIN 2000 Vanity Top GLIDE RISE 1500 GLIDE RISE 1500 page 6 of 8 2000 Plumbing Setout FRONT VIEW...
- Page 7 page 3 of 8 page 7 of 8 ISSY GLIDE TWIN VANITY UNIT ISSY GLIDE TWIN VANITY UNIT GLIDE RISE 1500 INSTALLATION INSTRUCTIONS Vanity should be installed by a qualified, licensed trades person. Vanity Fitting Instructions • Prior to installation it is important to inspect the vanity to ensure no damage has occurred in transit. If damage has occurred, or a visible defect exists, do not proceed with installation and advise supplier immediately.
- Page 8 page 8 of 8 DRAWER INSTALLATION AND ADJUSTMENT Drawer installation and adjustment video: https://youtu.be/v92uq8QGx7g Cover cap removal Drawer front removal T 20 drawer front away from drawer box. Height, side and tilt adjustments T 20 Height adjustment Side adjustment Tilt adjustment M height + 1.5/-0.5 (1/16"/1/32") ±...
