Reece Posh Domaine MK2 Installation Instructions

Plumbers, please ensure a copy of the Installation
Instructions are left with the end user for future reference

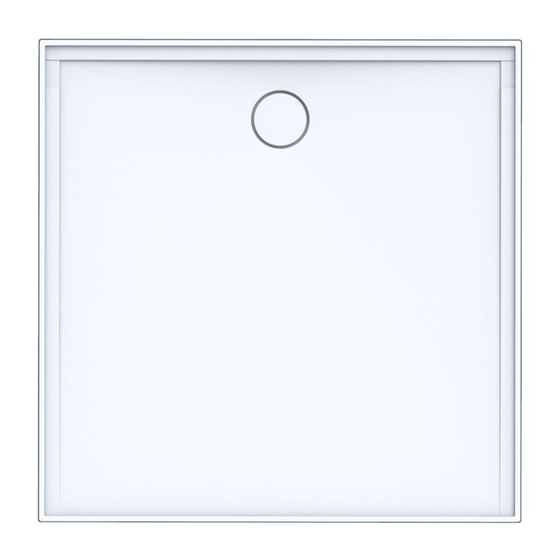

Posh Domaine MK2 Shower Base

Pre-Installation Note

It is recommended installation practice to check the edge of the base
into the wall by the width of the tiling flange in order to achieve a leakfree
junction with the wall cladding material (see diagram 'A').

Timber Floor

Floor boards or sheet flooring must cover the entire underside of the base.
Cut a hole for waste no greater than 120x120mm.
Note: If renovating, ensure the floor is structurally sound. Replace
the floor if necessary.
Shower base to be fixed to floor by spreading cement-based tile adhesive
on the floor using a 12mm notched trowel or by use of silicone sealant.
Alternatively, where the floor is not perfectly level, the base can be set into
a mortar bed - spread a 10mm thick mortar bed of 4:1 Washed Sand:
Spread the mortar over the whole area where base is to be installed then
trowel off level.
Lay the shower base on the prepared bed and use a spirit level to adjust
the base to ensure it is level along all sides and diagonally. This will allow
the base to drain properly as it has an inbuilt fall to the waste outlet.

Concrete Slab

Any boxed opening in the slab to accommodate the waste, must not
exceed 300mm in width beneath the shower base.
Shower base to be fixed to floor by spreading cement-based tile adhesive
on the floor using a 12mm notched trowel, or by use of silicone sealant.
Alternatively, where the floor is not perfectly level, the base can be set into
a mortar bed - spread a 10mm thick mortar bed of 4:1 Washed Sand:
Spread the mortar over the whole area where base is to be installed then
trowel off level.
Lay the shower base on the prepared bed and use a spirit level to adjust
the base to ensure it is level along all sides and diagonally. This will
allow the base to drain properly as it has an inbuilt fall to the waste
outlet.
Backfill the opening in the slab with a 4:1 Washed Sand: Cement mix
ensuring the mortar is packed tightly around the waste outlet and all the
way back into the boxed section of the slab and up to the underside of the
base to give maximum support.
Note: Where required by regulation plastic pie and fittings may need
to be lagged prior to backfilling.

Smartpan/Smartwaste

When the installation uses this product as a waste collector, ensure that
the lid/cover is fitted to provide adequate support for the base (see
diagram 'E').
