3.5 Joystick Module Wiring

The Joystick Module is connected to the Power Module with a Communication Cable.
To connect the Communication Cables:

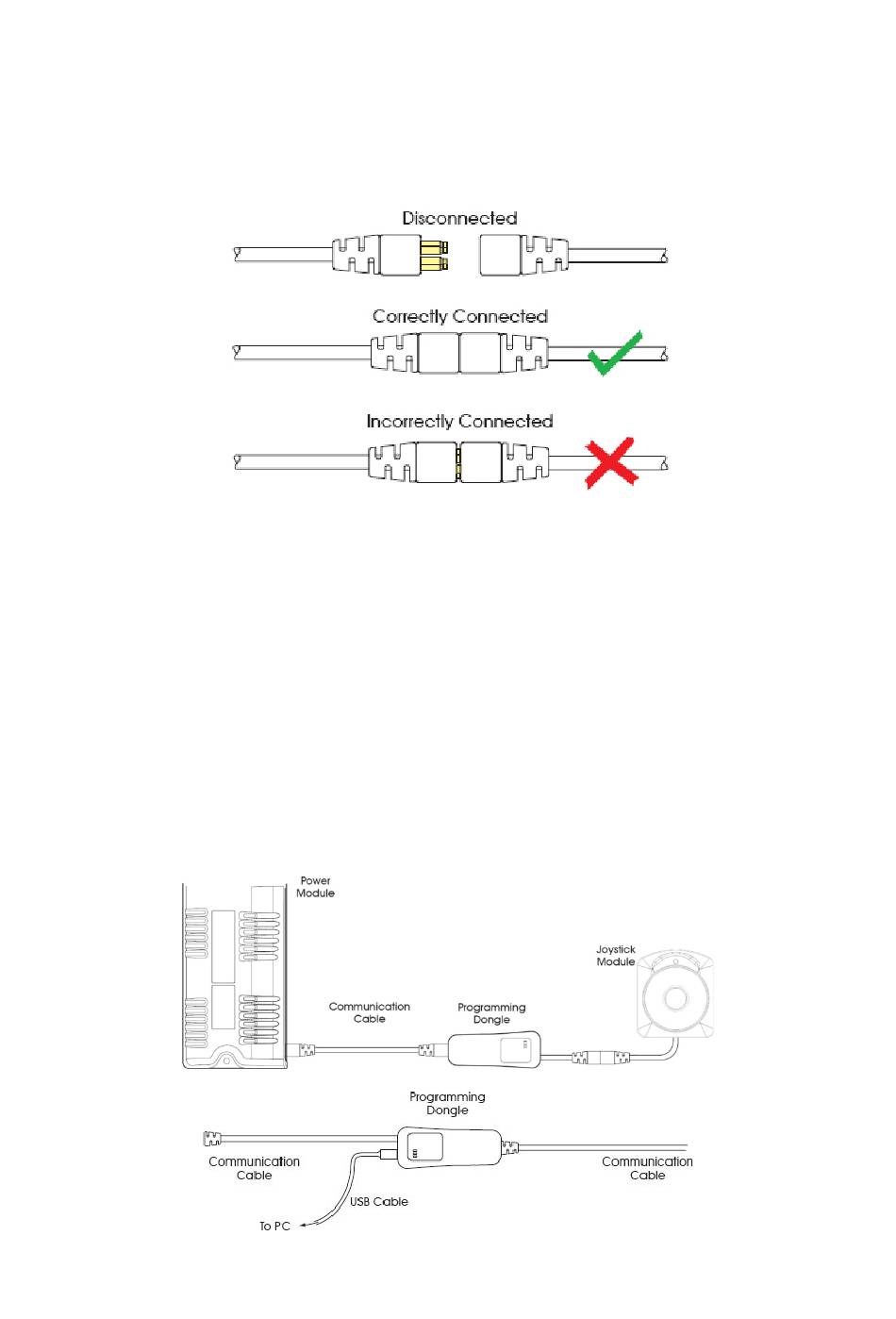

- Holding the connector housing, firmly push the connector into its mate until you can no
longer see the yellow plastic. The connectors are secured using a friction system.
To disconnect the Communication Cables:
- Holding the connector housing firmly, pull the connectors apart.
3.6 Power Module & ICS Wiring
Contact Permobil Europe BV if you need further advice and information.

3.7 Programming Connection

3.7.1 PC Programming
To utilize the R-net PC Programming Suite the R-net Dongle must first be connected in the
communications system as shown. A USB cable can then be connected between the
Dongle and a PC with the R-net PC Programmer installed. Information about programming
can be found in separate manual Art.no: 205313-UK-0.
