3.3.1.2 Joystick & ICS Configuration

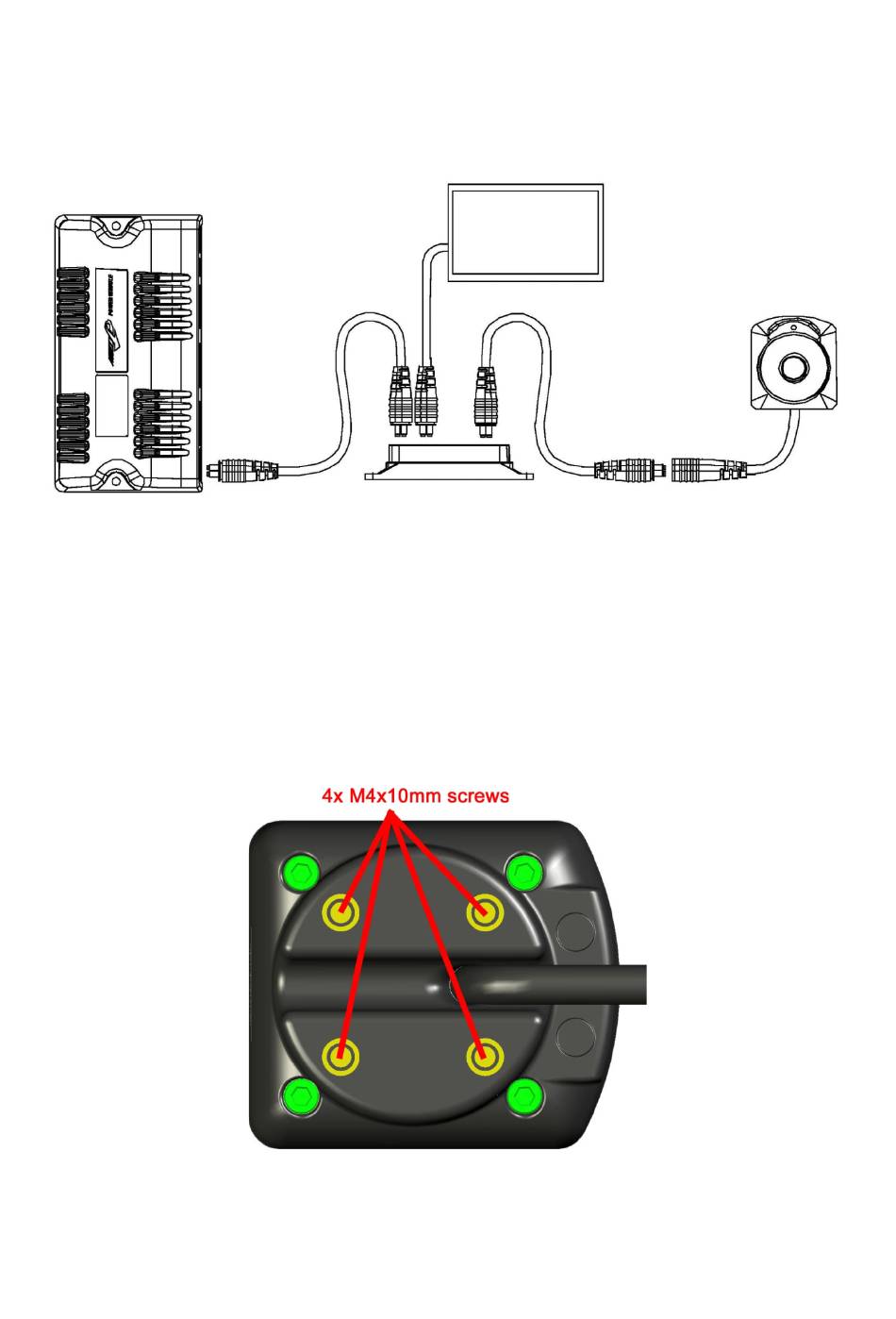

This consists of a Power Module, an Intelligent Control System (ICS), 3 Communication
Cables, R-net connector block and a Joystick Module.
Power Module Intelligent Control System (ICS) Joystick Module

3.4 Mounting

3.4.1 Joystick Module Mounting

3.4.1.1 General

The Joystick Module should be secured using 4 screws M4 with a maximum penetration of
10mm. There are 4 holes in a pitch circular diameter (PCD) – PCD 32mm – reserved for
mounting. Be careful not to overtighten the screw. 4 M4 screws of 10mm are delivered
with the Permofix CJ Set.
